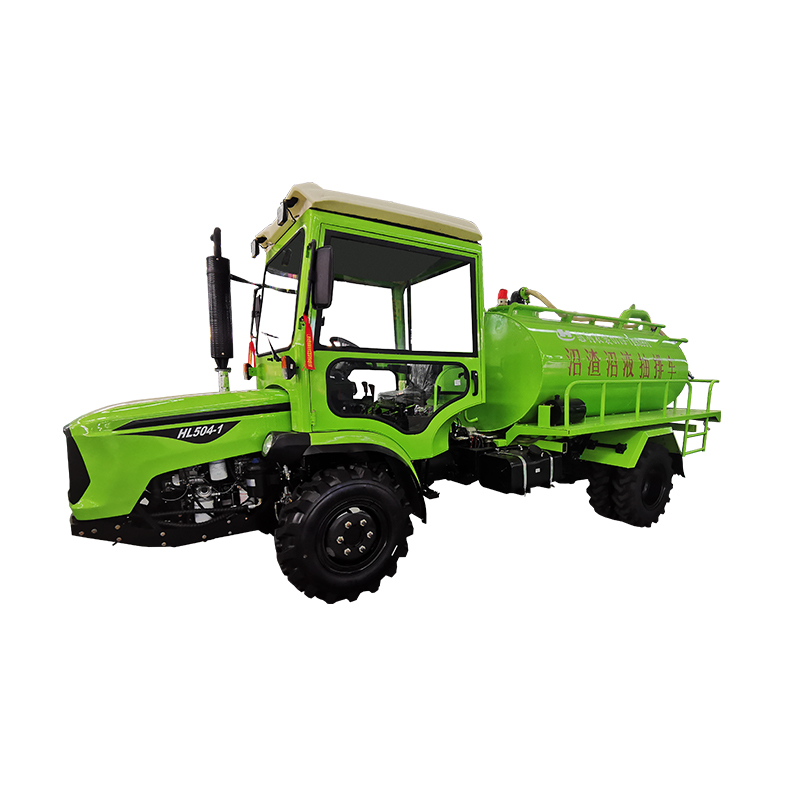

50HP hilly and mountainous wheeled tractor equipped with extraction function module

Product Description

It is suitable for absorbing and discharging sewage, feces, biogas residue liquid, etc. in rural areas. At the same time, it is responsible for transportation and spraying operations, and is suitable for the majority of biogas tank users, sanitation sewage treatment and other environmental operations.

hilly and mountainous wheeled tractor Features: In the modular concept, this car is the result of a combination of long-wheelbase platform modules and power modules. When necessary, the long-wheelbase platform module can be switched to a three-point suspension module to form a standard tractor, which is the Shanniu series.

ITEM	Kw/hp	STANDARD CONFIGURATION
Engjnerated power	r/min	36.5/50
Engine ratedspeed	/	2400
Driving type	/	Four-wheel drive/ Rear drive
Steering	mm	Hull hydraulic articulated
Overall size (LxWxH)	mm	5900x2100x2500
Wheelbase	mm	2950
Wheeltrack (front/back)	mm	1250/1250
Min.ground clearance	mm	230
Min.turning radius	mm	5150
Forward speed range	km/h	2.4-39.21
Tires type	/	8.25-16
Max slope	%	36.4(≈20°)
EXTRACTION DEVICE
Overall size (LxWxH)	mm	5950x2100x2500
Rated volume	m³	35
Suction flow	m³/min	≥0.4
pipe diameter	mm	100
Suctionlength	m	≥30
Suction Deepth	m	≥4
