brick making machine
Our brick making machine is used to produce different types of concrete brick, such as solid brick, hollow brick, multi-hole brick, paving brick, color brick, interlock brick etc. We just need to change the brick mold then we can produce these different types of brick.
Product Description
brick making machine
Our brick making machine is used to produce different types of concrete brick, such as solid brick, hollow brick, multi-hole brick, paving brick, color brick, interlock brick etc. We just need to change the brick mold then we can produce these different types of brick.
Concrete brick machine is multi-purpose, and different molds can be used to produce block products of different shapes and specifications. The mechanical structure of each part is easy to observe, the operation is simple, the maintenance is convenient, and it is not easy to cause failure to ensure normal production operation.
1. Specification of our brick making machine:
| Model | QT4-24 | QT4-15 | QT6-15 | QT8-15 | |
| Hollow Brick390*190*190 | Pcs/Mould | 4 | 4 | 6 | 8 |
| Forming Cycle (s) | 20-24 | 15-20 | 15-20 | 15-20 | |
| Pcs/ Hour | 360-450 | 720-960 | 1080-1440 | 1440-1920 | |
| Standard Brick240*115*53 | Pcs/Mould | 24 | 26 | 30 | 45 |
| Forming Cycle (s) | 20-24 | 12-17 | 12-17 | 12-17 | |
| Pcs/ Hour | 3600-4320 | 5505-7800 | 6352-9000 | 9529-13500 | |
| Motor Power (kw) | 13.45 | 24 | 45 | 45 | |
| Pallet Size (mm) | 850*550*20 | 880*580*22 | 900*700*25 | 1050*950*28 | |
| Pallet Needed (pcs) | 500 | 1200 | 1200 | 1500 | |
| Overall Size (mm) | 1850*1880*2240 | 2700*1600*2500 | 3200*2000*2750 | 3800*2200*2750 | |
| Total Weight (kg) | 1.56 | 4.5 | 7.9 | 10.5 | |
2. Conponents of our brick making machine:

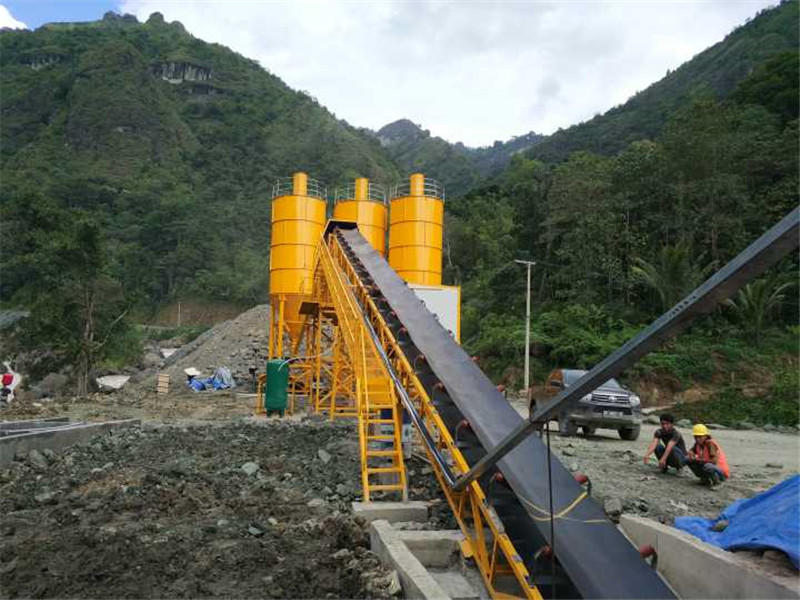

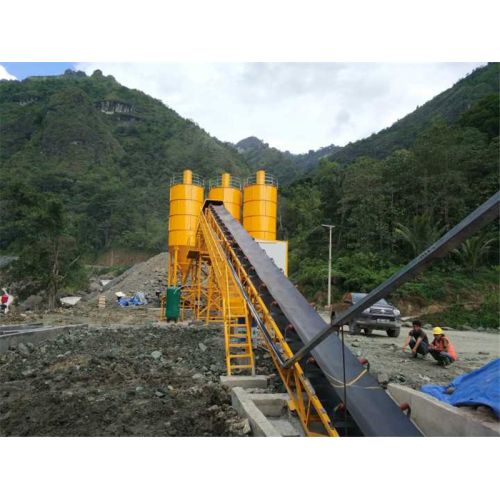

1) Concrete mixer or concrete batching plant
Concrete mixer or concrete batching plant is used to provide concrete for brick making machine.
For small brick making machine like QT4-24 and QT4-15, we can use a small pan mixer to produce concrete;
For big brick making machine like QT6-15, we need a concrete batching plant to produce concrete.
Pan mixer
2) Belt conveyor
Belt conveyor is used to deliver concrete to the brick making machine.
Brick making machine is the key part of a brick production line. Currently, Our most
