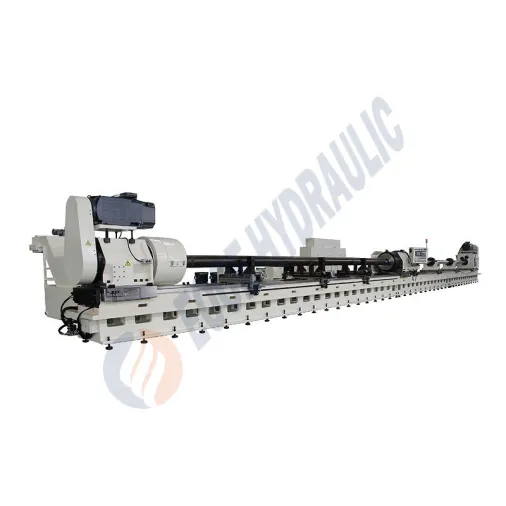

Custom-designed Skiving Roller Burnishing Machine

EOOE specialises in the development and manufacture of CNC skiving roller burnishing machine and strives to solve various processing problems for our customers. The key equipment configuration is in imported original packaging.

Product Description

Skiving and Roller Burnishing is a single process in two parts, where the blank is first removed with a turning tool and then the metal surface is cold finished with a tumbler to achieve the highest surface finish tolerances. This process is commonly used to finish hydraulic and pneumatic cylinders.



I、Main Parameters

Type

SRB2500/250NC2W

Maximum ID

φ250mm

Length

2500mm

Machining Method

Workpiece Fixation, Tool Rotation



Custom-designed Skiving Roller Burnishing Machine



Type

SRB3000/300NC1W

Maximum ID

300mm

Length

3000mm

Machining Method

Workpiece Fixation, Tool Rotation



Custom-designed Skiving Roller Burnishing Machine



Type

SRB3000/420NCCR1W

Maximum ID

420mm

Length

3000mm

Machining Method

Workpiece Rotation, Tool Rotation



Custom-designed Skiving Roller Burnishing Machine



Type

SRB12000/300NC1W

Maximum ID

300mm

Length

12000mm

Machining Method

Workpiece Rotation, Tool Rotation



Custom-designed Skiving Roller Burnishing Machine





II、Introduction

EOOE completely introduced decades of accumulated mature technologies and advanced production management experiences from Japan. Relying on our strong technical R&D tem, we specialize in the development and manufacture of CNC skiving roller burnishing machine and make efforts to solve various processing problems for customers. The key device configuration is imported with original packaging. Several Japanese professionals are employed to control quality strictly according to the relevant international quality standards. So, we can provide our customers with high-quality machine tools.





III、We create extraordinary quality from all details.

Lathe Bed

HT300 material, high frequency quenching, ultra wide guide equipment, good stability, the weight of the body, installed without screws

Custom-designed Skiving Roller Burnishing Machine

Main Shaft (Boring Bar)

Boring bar with high quality alloy steel material, solid round steel wool embryo processing and carburizing and quenching treatment, ensure the boring bar high rigidity, wear resistance, to ensure the machining accuracy of the workpiece

Custom-designed Skiving Roller Burnishing Machine

Workpiece Main Shaft

Workpiece head is mobile, easy for loading and unloading

Custom-designed Skiving Roller Burnishing Machine

Workpiece Steady Rest

V bracket roller, prevent scratch, automatically clamping and lifting.

Custom-designed Skiving Roller Burnishing Machine

Pressure Head & Hydraulic Cone Disc

Pressure head drive by servo motor & ball screw

Cone disc clamping by hydraulic power

Custom-designed Skiving Roller Burnishing Machine

Boring Bar Damper

Prevent boring bar vibration, assure the accuracy

Custom-designed Skiving Roller Burnishing Machine

Ball Screw

Main shaft drive by ball screw, increase the accuracy

Custom-designed Skiving Roller Burnishing Machine

Chip Conveyor

Chain conveyor collect chip, and big chip can install crusher

Custom-designed Skiving Roller Burnishing Machine

Cutting Fluid Filtering System

Multi-filtering to assure purity of cutting fluid, increase machining quality

Custom-designed Skiving Roller Burnishing Machine

Magnet Separator & Paper Filter

Separate tiny chip in the cutting fluid

Custom-designed Skiving Roller Burnishing Machine

Mist Separator

Reduce environment pollution

Custom-designed Skiving Roller Burnishing Machine

CNC Controller

SEMENS, FANUC,MITSUBISHI

Custom-designed Skiving Roller Burnishing Machine

Tool

Germany

Custom-designed Skiving Roller Burnishing Machine

Automation Device

Automatic feeding, reduce operation time



Lubricating device

Gear lubrication by oil lubrication, bearing lubrication lubrication, and rail contact surface lubrication for centralized lubrication







IV、On-site pictures

Custom-designed Skiving Roller Burnishing MachineCustom-designed Skiving Roller Burnishing Machine



Custom-designed Skiving Roller Burnishing Machine
