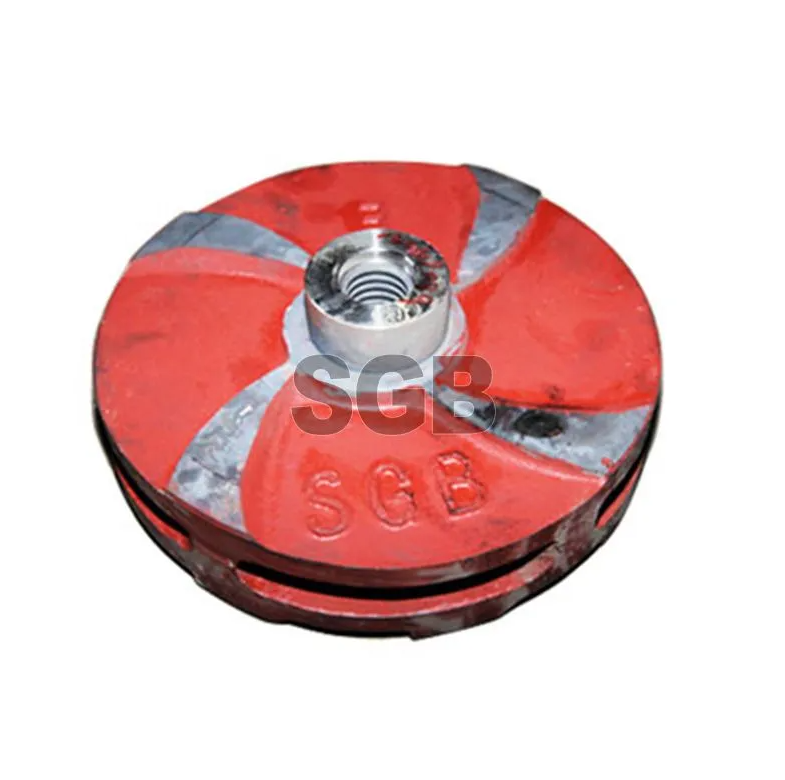

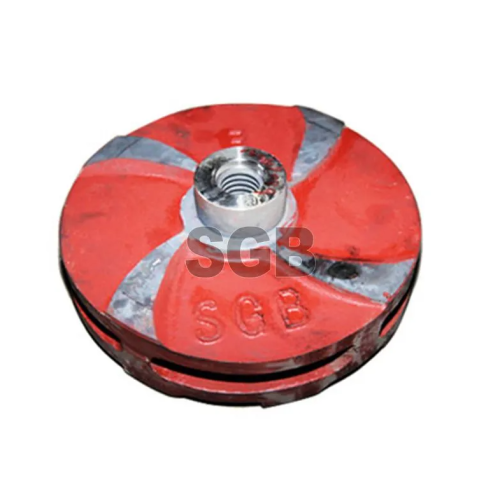

Slurry Pump Impeller

A slurry pump impeller is a rotating component of a centrifugal pump that accelerates fluid outward from the center of rotation, thus transferring energy from the motor that drives the pump to the fluid being pumped. The velocity achieved by the impeller transfers into pressure when the outward movement of the fluid is confined by the pump casing. A slurry pump impeller is a short cylinder with an open inlet (called an eye) to accept incoming fluid, vanes to push the fluid radially, and a splined, keyed, or threaded bore to accept a drive shaft.

An open impeller has a hub with attached vanes and is mounted on a shaft. The vanes do not have a wall, making open impellers slightly weaker than closed or semi-closed impellers. However, as the side plate is not fixed to the inlet side of the vane, the blade stresses are significantly lower. A close clearance between vanes and pump volute or back plate prevent most of fluid from flowing back. Wear on the bowl and edge of vane can be compensated by adjusting the clearance to maintain efficiency over time.

A semi-closed impeller has an additional back wall, giving it more strength. These impellers can pass mixed solid-liquid mixtures at the cost of reduced efficiency.

The construction of closed impellers includes additional back and front walls on both sides of vanes that enhances its strength. This also reduces the thrust load on the shaft, increasing bearing life and reliability and reducing shafting cost. A closed impeller's efficiency decreases as wear ring clearance increases with use. However, adjustment of impeller bowl clearance does not affect the wear on vanes as critically as open impeller. Closed impellers can be used on a wider range specific speed than open impellers.

SGB Slurry Pump Impeller Features and Advantage

- Advanced hydraulic model, CAD-aided design, high efficiency and remarkable energy-saving effect.

-Can manufacture parts according to your drawings.

- The impeller is made of high chromium wear-resistant alloy whose maximum hardness is more than 60HRC, and they have long service life.

Materials :

1. High Chrome concentration alloy 1, Rockwell hardness HRC ≥60, high abrasion application.

2. High Chrome concentration alloy 2, Rockwell hardness HRC ≥58, high  abrasion application .

3. High Chrome concentration alloy 3,  both anti-abrasion and corrosion-resistant, can be used in PH ≥4 and cl- 20000 ppm environment.

4. Other materials according to your requirements.
