Electric Motor Bearing

Nicer Bearing is a professional electric motor bearing manufacturer and supplier, offering quality options from top manufacturers around the world.

Product Description

Electric Motor Bearings

Electric motors provide the power necessary to for applications throughout many industries. Electric motor bearings allow these motors to rotate smoothly, quietly, and efficiently, all while addressing key needs like high load capacity, long life spans, and low running noise are all important qualities.

Nicer Bearing is a professional electric motor bearing manufacturer and supplier, offering quality options from top manufacturers around the world. Whether you need a custom part for your specific application or a standard solution to address your performance needs, we can help you find the best, most cost-effective parts for your electric motor needs.



Series of Electric Motor Bearings

► 6308-2RS Electric Motor Bearings

Dimensions:  I.D. 40mm,     O.D.  90mm,   B 23mm,   Cr: 31.35KN,  Cor: 22.38KN,
Vibration Speed:   Low frequency  23.4μm/s,    Middle frequency  52.2μm/s,    High frequency  1.91μm/s
Vibration Acceleration: 38 db

► 6309-2RS Electric Motor Bearings

Dimensions:  I.D. 45mm,     O.D. 100mm,   B 25mm   Cr: 40.66KN,  Cor: 30KN,
Vibration Speed:   Low frequency  15.7μm/s,    Middle frequency  39.6μm/s,    High frequency 1.72μm/s
Vibration Acceleration: 38 db

► 6311-2RS Electric Motor Bearings

Dimensions:  I.D. 55mm,     O.D. 120mm,   B 29mm   Cr: 55.05KN,  Cor: 41.91KN,
Vibration Speed:   Low frequency  17.6μm/s,    Middle frequency  41.32μm/s,    High frequency 2.74μm/s
Vibration Acceleration: 43 db

► 6312-2RS Electric Motor Bearings

Dimensions:  I.D. 60mm,     O.D. 130mm,   B 31mm   Cr: 62.88KN,  Cor: 48.6KN,
Vibration Speed:   Low frequency  42.5μm/s,    Middle frequency  98.6μm/s,    High frequency 14.05μm/s
Vibration Acceleration: 44 db

► 6313-2RS Electric Motor Bearings

Dimensions:  I.D. 65mm,     O.D. 140mm,   B 33mm   Cr: 72.21KN,  Cor: 56.68KN,
Vibration Speed:   Low frequency 55.6μm/s,    Middle frequency  109.5μm/s,    High frequency 10.6μm/s
Vibration Acceleration: 44 db

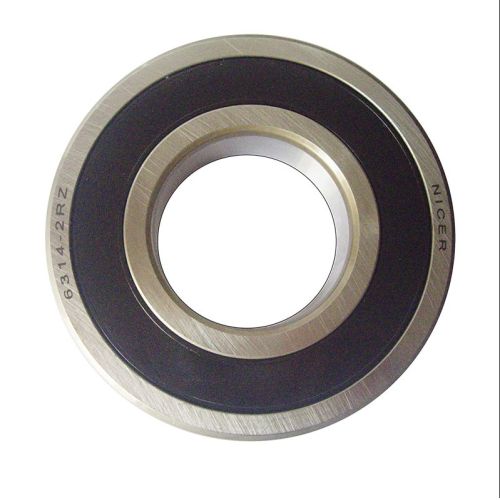

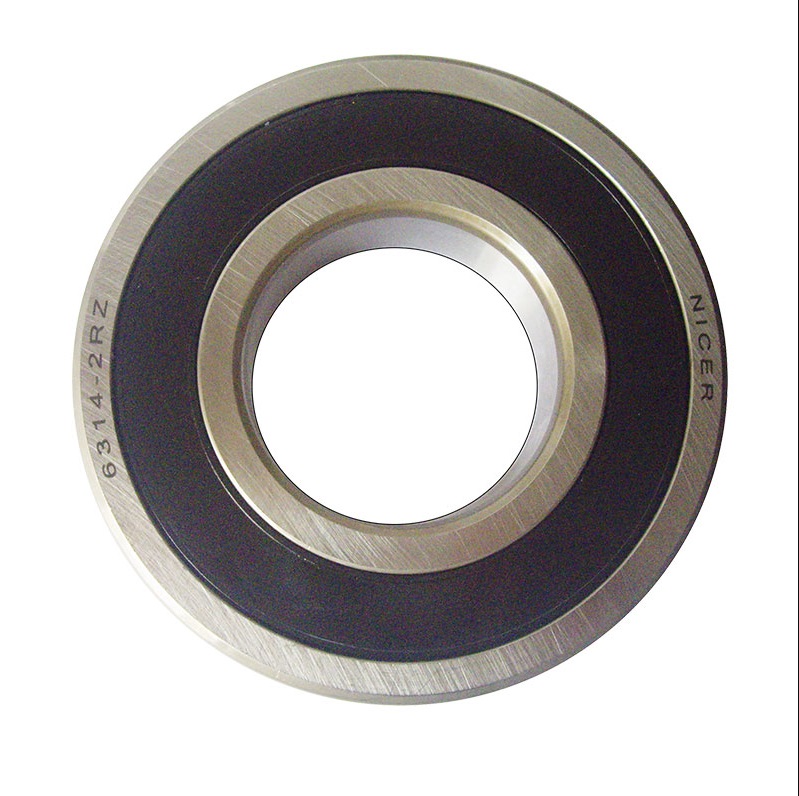

► 6314-2RS Electric Motor Bearings

Dimensions:  I.D. 70mm,     O.D. 150mm,   B 35mm   Cr: 80.1KN,  Cor: 63.48KN,
Vibration Speed:   Low frequency  89μm/s,    Middle frequency  136μm/s,    High frequency 12.1μm/s
Vibration Acceleration: 47 db

*We also supply 6200 series and 6300 series electric motor bearing used in motors with 3000 r/m, 6305 and 6400 series used in vibration motor.
