Stator and Rotor in Motor

The quality of the stator and rotor components is critical to the performance of the motor. They must be designed and manufactured with precision to ensure proper alignment and maximum efficiency. Various factors, such as the number of coils, the gauge of the wire, and the shape of the rotor bars, can affect the motor's performance.

The stator and rotor are two critical components of electric motors that work together to create the rotational force required to turn the motor shaft. They must be carefully designed and manufactured to ensure proper alignment and maximum efficiency, which ultimately determines the motor's performance. If you want to know more details, please contact us by email.



Specification

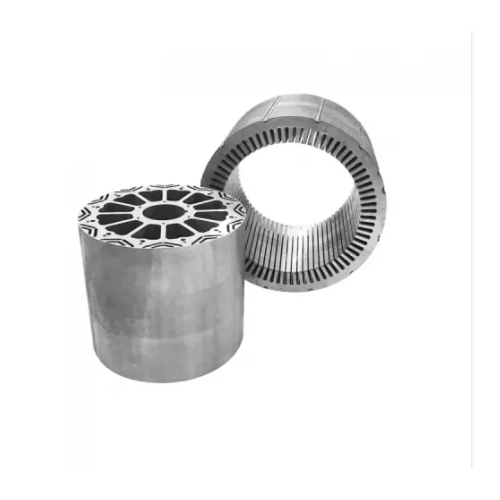

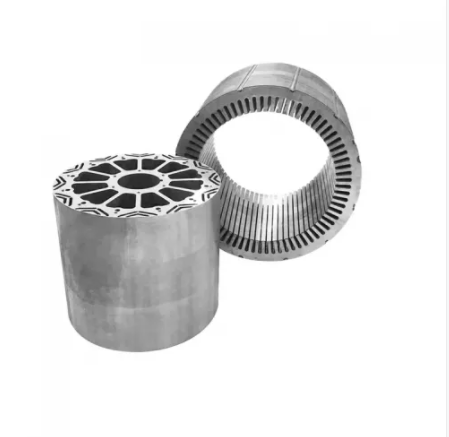

Describe	Custom stamped stator and rotor cores
Types Of	Stator and rotor Core (stator rotor core); Auto Parts (auto parts)
Application	Bus motor core
Processing	stamping
Material	Silicon steel
Weight Range	0.5-100Kg
Design Support	AutoCAD, Solidworks, PDF
Quality Control	Materials, Dimensions, Properties, Internal Defects, Balance Tests
Standard	ASTM, DIN, JIS, ISO, GB standard



Application

Main Application: apply to Electric Buses and Truck

Rotors and stators are key components of electric motors. The rotor is the rotating part of the motor, while the stator is the stationary part. Together, they create the electromagnetic field that drives the motor's motion. Here are some common applications of rotors and stators in motors:

1. AC Motors: In an AC motor, the stator is a stationary coil of wire that creates a rotating magnetic field when it is energized by an AC power source. The rotor, which is mounted on a shaft, rotates in response to this magnetic field. This type of motor is commonly used in household appliances, such as fans and air conditioners.

2. DC Motors: In a DC motor, the stator produces a stationary magnetic field, while the rotor rotates within the field. DC motors are used in a wide variety of applications, from electric vehicles to power tools.

3. Induction Motors: Induction motors have a stationary stator with a set of windings that create a rotating magnetic field. The rotor consists of a set of conductive bars or plates that are short-circuited by end rings. When the rotating magnetic field of the stator interacts with the conductive bars of the rotor, it induces a current in the rotor, which creates a magnetic field that opposes the stator's magnetic field. This interaction creates the torque necessary to rotate the rotor. Induction motors are commonly used in industrial applications, such as conveyor belts and pumps.

4. Synchronous Motors: Synchronous motors are similar to induction motors, but they have a rotor that rotates at the same speed as the rotating magnetic field of the stator. This requires the use of a DC power source to excite the rotor's windings. Synchronous motors are used in applications that require precise speed control, such as clocks and turntables.

In summary, rotors and stators are essential components of electric motors, and their design and configuration depend on the specific application of the motor.



Advantage

1. Specialized in manufacturing iron cores for 15 years, and exporting related components for more than 10 years

2. Obtained ISO9001, IATF16949 and other certifications

3. Short delivery time

4. Competitive price

5, Equipped with automatic powder spraying line

6. Welcome to customize orders



Our service

1. Have a strong R&D team

2. Quickly respond to your inquiries and feedback

3, good quality, strict quality control

4. Professional after-sales team



We look forward to working with you!

A motor consists of two essential components - the rotor and stator. The rotor rotates inside the stator and converts electrical energy into mechanical energy. At CHME Components Co., Ltd., we specialize in the manufacturing of high-quality stators and rotors for driving motors.



Our custom stamped stator and rotor cores are designed to meet the specific requirements of our clients. We work closely with our customers to understand their needs and deliver solutions that meet their unique specifications. Our experience of over 10 years in the industry and our commitment to quality ensures that our products are reliable and durable.



We offer stators and rotors for electric buses and trucks. These vehicles require motors that can withstand high loads and operate efficiently. Our bus motor core is designed to meet these requirements and can be customized to suit the specific needs of our clients.



At CHME, we have the capability to provide stators and rotors in different sizes based on presses between 25tons-300tons. This allows us to cater to the requirements of different industries and applications.



Our competitive cost as a private company allows us to provide cost-effective solutions to our clients without compromising on quality. We take pride in our ability to provide reliable quality as a company that has worked for international companies for over 10 years.



In conclusion, at CHME Components Co., Ltd., we specialize in the manufacturing of custom stamped stator and rotor cores for driving motors. We offer bus motor core, stators, and rotors for electric buses and trucks in different sizes based on presses between 25tons-300tons. Our products are cost-effective, reliable, and can be customized to meet the unique needs of our clients. We sell our high end stator and rotor in motor to all over the world. Welcome to contact us.
