Roll Mesh Welding Machine

Welded wire mesh machine, also known as welded wire mesh panel machine, is a machine used to produce welded wire mesh panels for construction and other purposes. Welded wire mesh is a type of wire mesh that is created by welding wire together at each intersection, creating a strong and durable panel. It is often used in construction, fencing, and other applications where a strong

Product Description

Detailed Product Description



Item: High Frequency Steel Wire Wire Roll Mesh Welding Machine Lead Time: 7 Days
Welding Method: Mechanical Automation Degree: Full Automatic
Certification: CE ISO Producton Capacity: 50 Sets/Month
Voltage: 220V/380V/415V/440V Control System: PLC
Cooling Method: Water Cooling Warranty: 1 Year
High Light:

ISO Roll Mesh Welding Machine415V Roll Mesh Welding Machine415V Wire Welding Machine

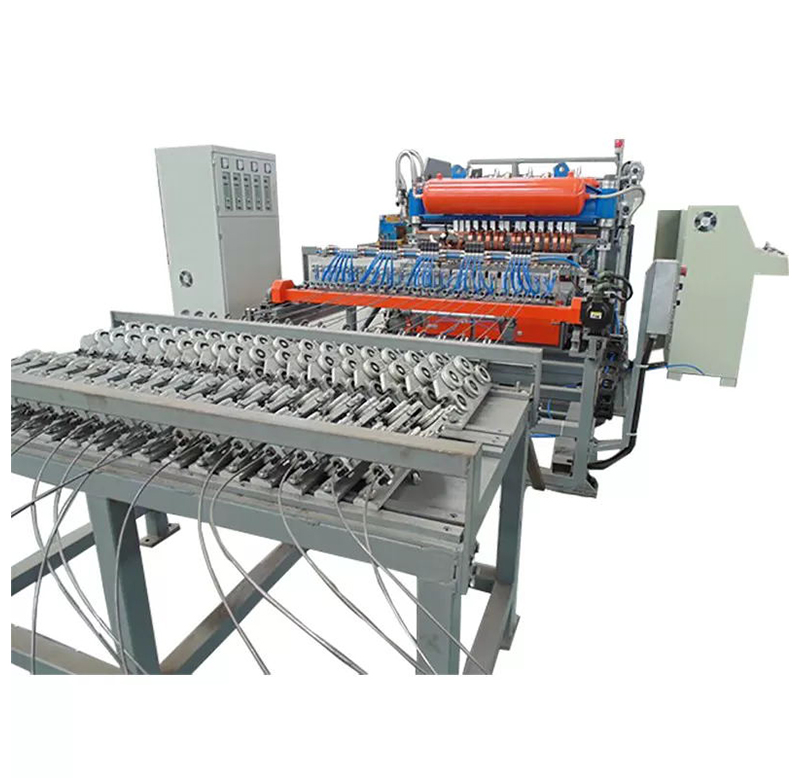

High Frequency Steel Wire Wire Roll Mesh Welding Machine

In order to adapt to the capacity of the user's main power transformer and reduce the current impact , the welding electric electronic control adopts the welding sub - control power transmission , that is , the welding transformer can be operated separately when welding the same row of we aments .

The welding power electronic control system adopts synchronous control technology. The welding time and sub-control welding are controlled by single chip microcomputer. The control precision is high and the performance is stable.



Item Product type Parameter Remark
1 Max. welding capacity ¢3.5+3.5mm
2 Long wire diameter ¢2-3.5mm
3 Cross wire diameter ¢2-3.5mm
4 Long wire feeding method In coil
5 Cross wire feeding method In coil
6 Long wire spacing ≥25mm Mechanically adjustments
7 Cross wire spacing ≥25mm Programming adjustments
8 Length range of wire mesh ≤60000mm Adjustable
9 Width range of wire mesh ≤1300mm Adjustable
10 Number of welding spot 20PCS
11 Working speed max. 50-70times/min



Welding forming mesh, the motor of Full Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the Full Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by Full Automatically Roll Mesh Welding Machine.



High Frequency 415V Roll Mesh Welding Machine Synchronous Control

Welded wire mesh machine, also known as welded wire mesh panel machine, is a machine used to produce welded wire mesh panels for construction and other purposes. Welded wire mesh is a type of wire mesh that is created by welding wire together at each intersection, creating a strong and durable panel. It is often used in construction, fencing, and other applications where a strong, long-lasting mesh is required.

ACE Mesh Machinery can order online or contact us through any of our methods according to your needs and receive the machine according to your specifications.
