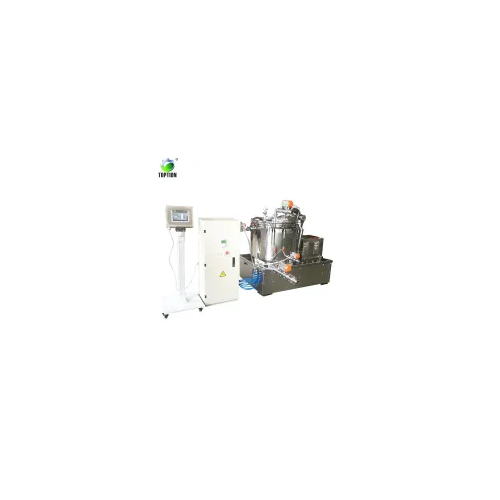

Cryogenic Ethanol Extraction Equipment

TOPTION this type centrifuge extraction equipment has a high degree of automation, large processing capacity, convenient operation and maintenance, and can realize remote control. Its special structure allows the working temperature to be as low as -80℃, prevents the volatilization of ethanol, and improves production efficiency.

Product Description

The cryogenic ethanol extraction equipment is as fast as it is versatile, allowing different specifications for temperature, rotation speed, and retention time creating the optimal combination of control and ease.

Components of the Ethanol Extraction Centrifuge

The structure of the Cold Ethanol Extraction Soak Time is mainly composed of the drum component, the main shaft component, the transmission device, the machine base (including the vibration reduction system), the housing component, the safety protection device and the electrical automatic control system.

For Ethanol Extraction Centrifuge, Toption works to provide you the best equipment in the current market. Our range extends to more than just ethanol extraction. We offer products and equipment for many extraction systems for alcohol extraction and cannabis extraction. Contact us, so we can start helping you today with your ethanol extractor needs.You need to pay attention to Cold Ethanol Extraction Soak Time.

Are there advantages to Cold Ethanol Extraction at Home?

Cryogenic Ethanol Extraction Equipment Advantages

1. Mechanical spring to help the operator easily open the cover.

2. Meet different explosion-proof requirements.

- Integrated explosion-proof control cabinet

- EX external split PLC operation screen optional

- Emergency stop button

3.Siemens PLC control system & operation screen.

4.Variable speed governor for stepless speed regulation of centrifuges.

5.Level gauge, check if the amount of alcohol soak is enough at any time.

6.Drum welds are 100% non-destructive inspection, strict dynamic balance test. No stiffeners, reducing sanitary dead angles, easy to clean, low running noise.

7.Nitrogen protection device, using nitrogen for "inert environmental protection".

8. Storage tank, -80℃ Chiller, Filter bag are available.

Ethanol Extraction Centrifuge Technical Parameters

Main parameters	TOP-C15	TOP-C30	TOP-C50	TOP-C110	TOP-C160	TOP-C220
Vessel diameter(inch)	12	18	24	32	40	47
Vessel volume(L)	18	48	110	251	393	565
Biomass/batch（lbs）	15	30	50	110	160	220
Alcohol solvent (L)	57	110	201	377	546	745
Standard Max speed(r/min)	3000	2000	1500	1000	900	700
Optional 1： speed	4000	3000	2000	1500	1200	1000
Main motor power (kw)	2.2/3	44259	5.5/7.5	7.5/11	11.0/15	18.5/22
Vessel load-bearing (lbs)	25	50	100	320	450	540
Dimension (LWH)mm	850610900	9806801000	13509901300	170012001500	197014001500	220017001500
Machine weight(kg)	≈300	≈500	≈800	≈1400	≈1900	≈2500

Application field

TOP-C series centrifuges extraction machine are mainly suitable for the filtration and separation of solid phase granular suspensions, and can also be used for the filtration and separation of fibrous materials. The operation & maintenance are convenient , the general performance is strong.

Would you like Cold Ethanol Extraction at Home? Contact us for more information.

Instruction

TOP-C series Ethanol Extraction Centrifuge is specially used for the separation and extraction of ethanol from plant raw materials. Put the dried plant raw materials in bag and wash in two directions by immersing in ethanol. After washing, the plant material is dried with medium strength even high-speed spin drying, so as to remove ethanol as much as possible from the plant material, the ethanol washing solution is collected in a container for further processing.

Ethanol Extraction Process

The use of solvents to extract CBD Oil and THC compounds from dry plant biomass is known as the ethanol extraction process. Depending on the type of compound desired, the process may vary, but alcohol in the form of ethanol is key to the extraction of cannabinoids.

An essential step in this process is separating the spent biomass from ethanol that has adsorbed the precious cannabinoids. The efficiency of this separation is critical to the efficiency of the extraction process.

Different Types Of Ethanol Extraction Centrifuges

Cold Ethanol Extraction Soak Time

The optimal soak time for cold ethanol extraction can vary depending on the plant material and desired outcome. Typically, a soak time of 12 to 48 hours is sufficient for most plants. However, some plant materials may require longer soak times of up to 72 hours to fully extract the desired compounds. It is important to monitor the extraction process and assess the extraction efficiency regularly to ensure that the desired compounds are being effectively extracted.

If you want to get more news about Ethanol Extraction Centrifuge and Cold Ethanol Extraction Soak Time, please feel free to contact us.
