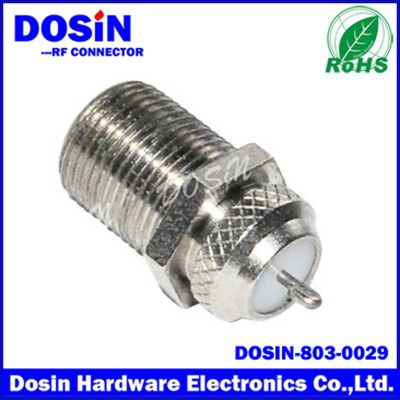

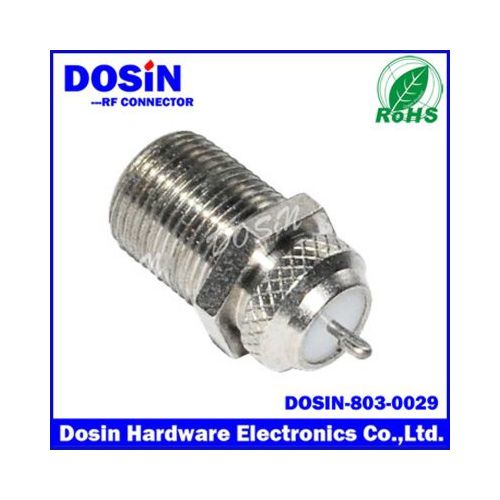

RF Coaxial F Bulkhead Female Connector

Product Description

F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications. F type joining devices use for 75 ohm Cable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required and can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl, the price is suitable.

Product Feature

1.100% tested before delivery.

2.Guarantee the prompt delivery.The stocked goods will be delivered within 3 days and the customized products will be delivered as arranged date.

3.We are glad to makes samples according to our customers'drawing,specifications and samples.

4.OEM is available.

5.Free to contact us,we can offer you the best service,top-quality goods,competitive price and timely delivery.

6.We have got the certificate ISO9001:2008

Product Specification / Models

Temperature Range: -40 to +60\u00b0 C

Vibration: 100m/s (10-500Hz). 10g

Impedance: 50 ohm-75 ohm

Frequency: DC to 1GHz

Working Voltage: 170V r. M. S at sea level

Withstanding Voltage: 500V r. M. S at sea level

Contact Resistance

Center contact: 10m ohm max

Outer contact: 5m ohm max

Insertion Loss: 0.24dB(6GHz) max

Insulation resistance: 1000M ohm min

Center Conductor Retention Force: 0.2N min

Voltage Standing Wave Ratio

Straight: 1.20/6GHz max

Right angle: 1.30/6GHz max

Durability(mating): 500cycles min

Application / Models

1. CATV

2. Set Top Boxes

3. Cable Assemblies

4. Cable Modems

5. Boxes Cable Assemblies

6. Electronical Specifications

Other Information

Dongguan Dosin Hardware Electronics Co.,Ltd is an ISO certified manufacturer with experiences exporting coaxial connector, cable assembly, wireless antenna, and WLAN accessory, etc, Not only to provide quality products, we also provide competitive price and quick delivery to fulfill customer's need. Web is www.dosinconn.com.
