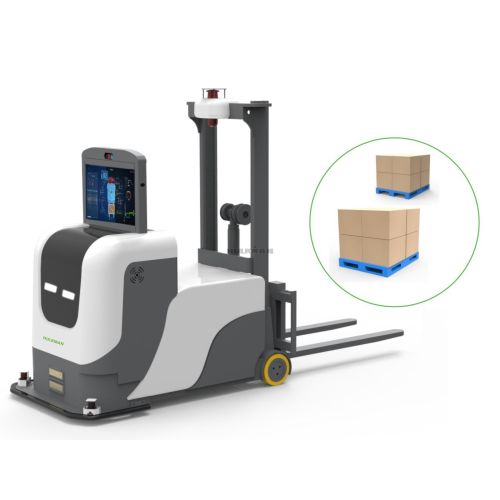

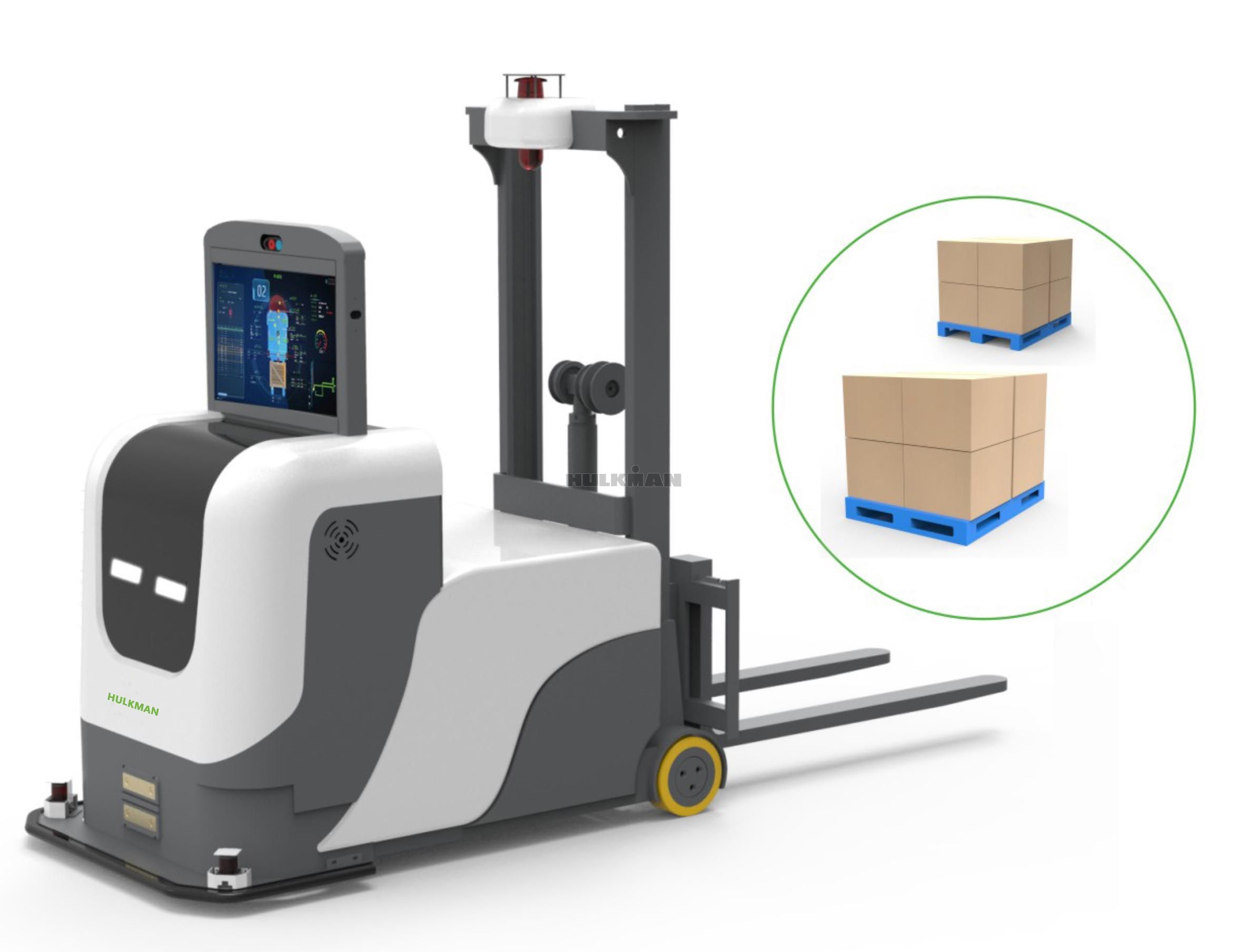

1.5Ton AGV Counterbalanced Electric Stacker
1.5Ton AGV Counterbalanced Electric Stacker
Product Description
AGV uses laser navigation SLAM algorithm to automatically scan the inside environment of car, senses the location of the goods, takes the goods out of car and realize intelligent unloading. When loading, the AGV will scan the environment and automatically stack the goods neatly, and load in car.
Adaptation: Transmission Lines, Package Machines.
3300mm Right Angle Stacking Aisle (1000*1200mm Pallet, 1000mm Incoming Fork)
1.5Ton AGV Counterbalanced Electric Stacker
|
Model |
LDB1500C |
|
Rated Load Capacity |
1500kg |
|
Navigation Method |
Laser Navigation |
|
Lifting Height |
3000mm (can customize) |
|
Turning Radius |
1800mm |
|
Dimension (L x W x H) |
2779*1020*2249mm |
|
Fork Size |
1200*100*40mm |
|
Max. Traveling Speed (loaded/unloaded) |
1.0/1.2m/s |
|
Body Weight (without load) |
2000kg |
|
Positioning Accuracy |
±10mm |
|
Max. Gradeability (loaded/unloaded) |
5/8% |
|
Communication Method |
WIFI/5G |
|
Fork Ground Clearance (Mini) |
45mm |
|
Right Angle Stacking Aisle (1000*1200mm pallet,1000mm incoming fork) |
3300mm |
|
Battery Capacity |
48/160Ah |
|
Battery Type |
LiFePO4 |
|
Charging Method |
Manual/ Automatic |
|
Charging/Working Time |
1/8 Hours |
|
Security |
Laser Scan, Safety Contact Edge |
