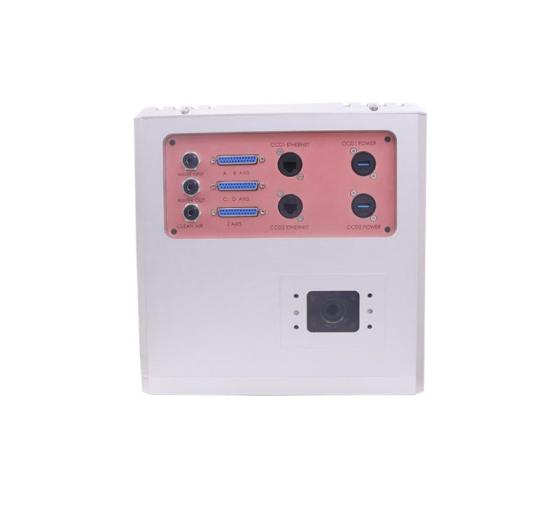

5-axis Laser Micromachining System
Product Description
Min Order Quantity：1 Set
Country/Region：China
City：Shenzhen
Product Attributes
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Related Keywords 5-axis Laser Micromachini
Description by Manufacturer
The ordinary laser micromachining system can only process the taper hole, and can not achieve the standard straight hole and inverted cone hole processing. Besides the standard straight hole and the taper hole processing, the 5-axis laser micro machining system can also process the inverted cone hole, which greatly expands the laser drilling applications. With different wavelengths and super fast lasers, the thermal effect of drilling is small and the surface treatment is smooth. Only by making the processing materials unlimited, has been applied to drilling and processing in all walks of life.
Key Features Of 5-axis Laser Micromachining System
In order to ensure accurate synchronization, it is necessary to process the position data of each axis under the same processor and control clock. This design uses high speed digital chip FPGA to achieve
The positioning accuracy of the galvanometer will directly affect the machining accuracy of the equipment, and the factors affecting the positioning accuracy of the galvanometer mainly include the accuracy of the galvanometer feedback system, controller and the accuracy of correction.
The self-developed 24-bit high-precision encoder, combined with the high bandwidth driver based on PID and feedforward controller, improves the control accuracy of the system.
Adopt high-precision CNC machine tool to fix and clamp important structural parts at one time to ensure high-precision installation of galvanometer motion module.
Hansscanner provides laser galvanometer , galvanometer scanner, laser micromachining ppt and etc. If you want to know galvanometer cost or more, please contact us.
Price
- Price US$ 500 / Set

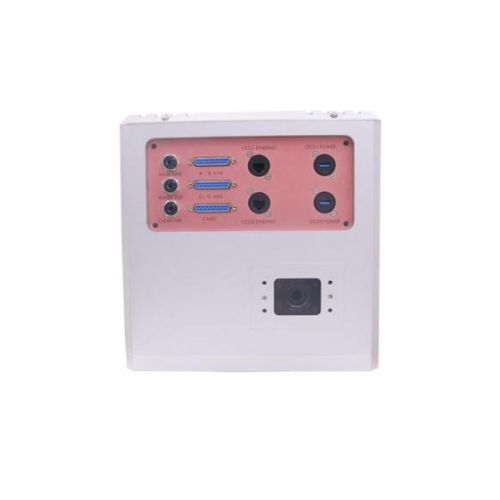

Product Image
