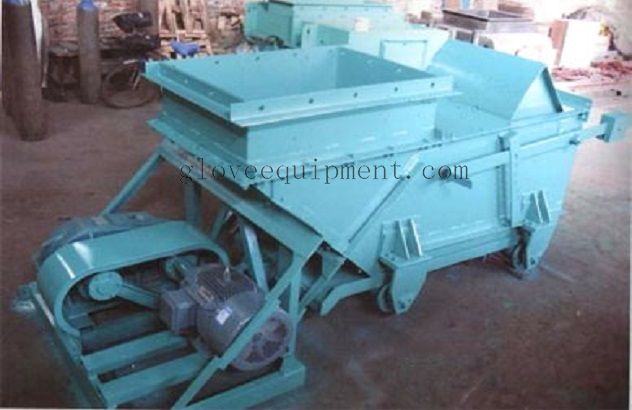

K Series Reciprocating Coal Feeder
K Series Reciprocating Coal Feeder
Product Description
Usage
K Series reciprocating coal feeder is used for coal or other Small abrasive， small less viscous loose granular materials, put storage materials or material in pit to transport equipment and other equipment continuously and evenly.
Structure features
1. Reciprocating coal feeder is composed of chassis, baseboard (feed tank), motor, reducer, funnel, eccentric connecting rod mechanism, wooden pin coupling, Wheel Parts and adjusting coal feeder mechanism
2. Eccentric connecting rod mechanism of reciprocating coal feeder adopts 311 biaxial and automobile universal joint which running Stable and freely. Adjusting coal feeder mechanism adopts fan shaped adjusting board, 9 adjusting gears adjust the volume of coal feeder according to the equipment's need which is easy operated.
3. When the motor is running, pin coupling, reducer, eccentric connecting rod mechanism drag lean bottom on the roll running a straight-line reciprocating movement，put the coal to other equipment continuously.
Technical features
|
Item |
K0 |
K1 |
K2 |
K3 |
K4 |
|
Feeding Capacity(t/h) |
22-100 |
35-4-150 |
50-226 |
75-330 |
132-590 |
|
Largest Material Size(mm) |
220 |
300 |
300 |
450 |
550 |
|
Motor No. |
Y160MI-8 |
Y160MI-8 |
Y160MI-8 |
Y160MI-6 |
Y160MI-1 |
|
Motor Power (KW) |
4 |
4 |
4 |
7.5 |
18.5 |
|
Crank Rotated Speed (r/min) |
57 |
57 |
57 |
62 |
62 |
|
Net Weight(kg) |
1159 |
1253 |
1420 |
1978 |
2880 |
