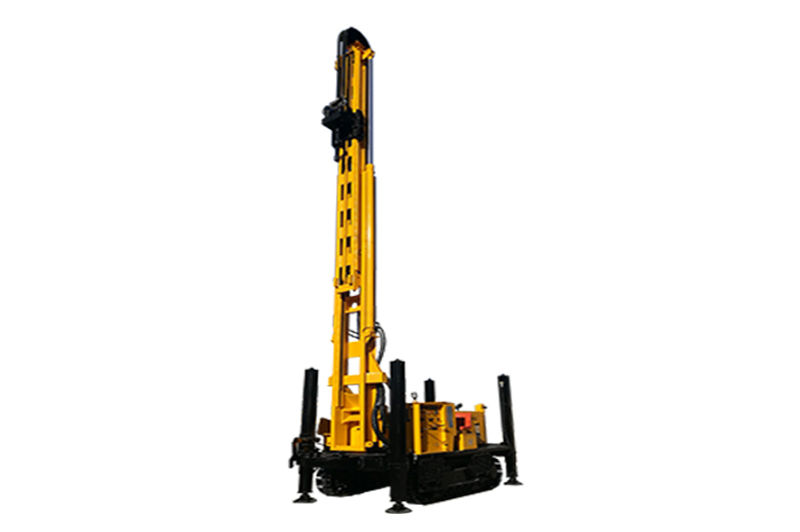

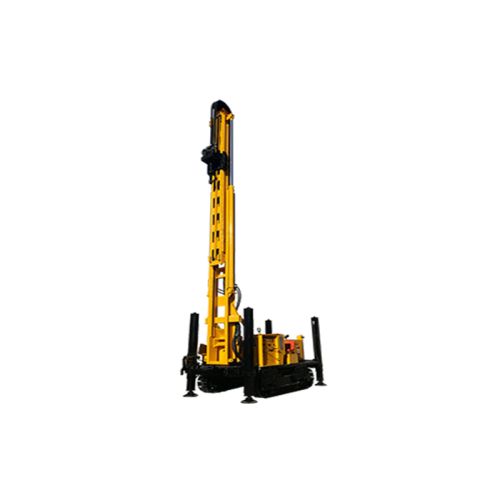

JKS600SH Crawler Mounted Telescoping Mast Well Drilling Rig
Crawler Mounted Telescoping Mast Well Drilling Rig
Product Description
JKS600SHis a new, efficienct, multifunctional hydraulic crawler mounted telescoping mast well drilling rig , mainly applicable to the drilling process of water well, monitoring boreholes, geothermal boreholes, constructions like dam, reinforced base and defense project.
The rig is able to handle casing pipe size up to 6 meters
When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with high penetration speed.
In loose rock, the rig employs hammer and casing as well as mud drilling.
Hydraulic supporters facilitate the drilling rig erection on site without crane.
| Rated Drilling Depth | 600m |
| Borehole Diameter | 140~350mm |
| Engine Power | 132kW |
| Max Lifting Force | 32t |
| Axial Pressure | ±10t |
| Lifting Force of Small Winch | 1.5t |
| Rotation Torque | 11000N.m |
| Rotation Rate | 0～40/80rpm |
| Feeding Stroke | 7000mm |
| Hydraulic Supporting Leg Stroke | 1650mm |
| Lifting Rate | 0~15m/min |
| Grade Ability | 15° |
| Transport Dimension (L x W x H) | 6800mm x 2250mm x 2750mm |
| Working Dimension (L x W x H) | 6800mm x 3250mm x 12900mm |
| Weight | 13.7t |
| Hydraulic Generator (optional) | 24kW/380V |
| Centrifugal Mud Pump (optional) | 1500L/min |
| Plunger Mud Pump (optional) | 1000L/min |
