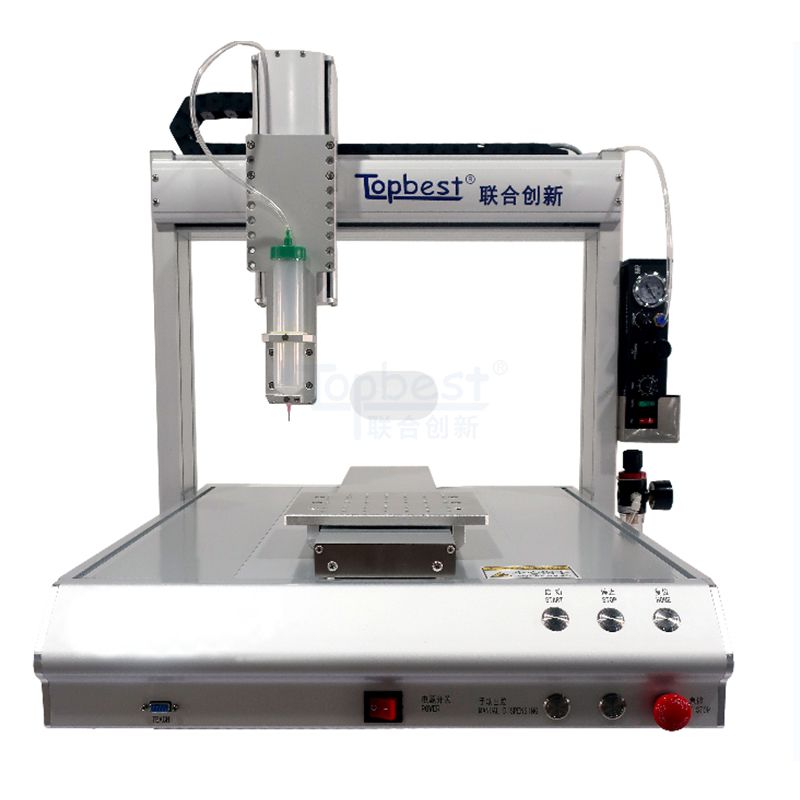

Syringe Type Glue Dispensing Machine TBS-DJ-441
Syringe Type Glue Dispensing Machine
Product Description
Syringe Type Glue Dispensing Machine Functions:
● Desktop type, can be placed on the production line.Small footprint
● Simplified setup and programming via Teach Pendant
● Various functions, such as drawing points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis motion;adapts to a wide range
● The fluid dispensing speed, dispensing time, stop the time can be set parameters
Advantages:
● Suitable for wide range of fluid dispensing applications
● Faster cycle and batch times
● Easy integration into any manufacturing operation
● Reduced production, material, and ownership costs
● Suitable for wide range of fluid dispensing applications
|
MODEL |
TBS-DJ-441 |
TBS-DJ-631 |
TBS-DJ-6331 |
|
Dimension（L×W×H mm） |
750X650X750 |
880×650×750 |
880X650X750 |
|
Weight（kg） |
60 |
75 |
75 |
|
Dispensing range X/Y/Z(mm) |
380/380/80 |
580/280/80 |
580/280/280/80 |
|
Max.jig size |
380x380x70 |
380x380x70 |
290x280x70 |
|
Max.load X&Y-/Z（kg） |
10kg/5kg |
10kg/5kg |
10kg/5kg |
|
Movement speed X&Y/Z(mm/s) |
X,Y 600-800MM/S,Z 400MM/S |
X,Y 600-800MM/S,Z 400MM/S |
X,Y 600-800MM/S,Z 400MM/S |
|
Decomposing ability |
0.01mm/s |
0.01mm/s |
0.01mm/s |
|
Programming method |
Teach pendant/Microcomputer |
Teach pendant/Microcomputer |
Teach pendant/Microcomputer |
|
Repeated accuracy |
+/-0.02MM |
+/-0.02MM |
+/-0.02MM |
|
Power supply |
AC220V,50HZ |
AC220V,50HZ |
AC220V,50HZ |
|
Air pressure |
0.4 to 0.8 Mpa |
0.4 to 0.8 Mpa |
0.4 to 0.8 Mpa |
|
Memory |
1000 files |
1000 files |
1000 files |
|
Display |
Teach pendant LCD |
Teach pendant LCD |
Teach pendant LCD |
|
Motor |
Japanese stepping motor |
Japanese stepping motor |
Japanese stepping motor |
|
Working mode |
Dot/Line/Arc/Circle |
Dot/Line/Arc/Circle |
Dot/Line/Arc/Circle |
|
Driving mode |
Synchronous belt+dual guide rails |
Synchronous belt+dual guide rails |
Synchronous belt+dual guide rails |
|
Dispensing type |
Syringe dispensing |
Syringe dispensing |
Syringe dispensing |
|
Safety operation |
Start button |
Start button |
Start button |
|
Dispensing monitor |
No |
No |
No |
|
Working environment |
-5~40℃,humidity 20%~95% |
-5~40℃,humidity 20%~95% |
-5~40℃,humidity 20%~95% |
Suitable glue:
Common UV glue, RTV silica gel, red glue, silver glue, COB black glue, Conductive adhesive, heat – dissipating aluminum paste, quick – drying adhesive, ink, etc
Application fields:
Fiber connector, LED PKG, LCD bonding protection, mobile phone accessories, optical fiber plug glue dispensing, electroacoustic loudspeaker bonding glue dispensing , auto parts, semiconductor packaging, Diode or audion glue dispensing.
