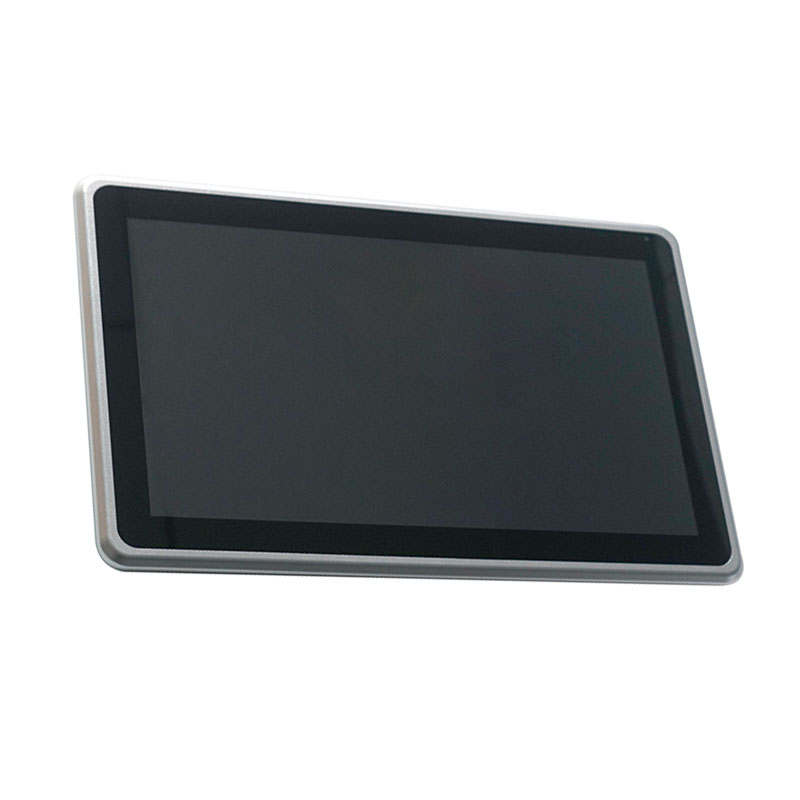

15.6 INCH 4K WIDESCREEN 1000 NITS TOUCHSCREEN MONITOR PHOTOBOOTH

Our 15.6 Inch Touch Screen Monitor/Touch Screen display has the advantages of high brightness, high temperature resistance portable and waterproof, if you are interested in our products, please contact us as soon as possible!

Product Description

INTRODUCING THE 15.6 INCH TOUCH SCREEN MONITOR - ILLUMINATING YOUR VISION WITH 1000 NITS

Our 15.6 Inch Touch Screen Monitor/Touch Screen display has the advantages of high brightness, high temperature resistance portable and waterproof, if you are interested in our products, please contact us as soon as possible!

As a leading force in the realm of industrial computing, SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED proudly presents our 15.6 Inch Touch Screen Monitor, a testament to our commitment to cutting-edge innovation and unparalleled customization. With over 8 years of experience in crafting bespoke industrial panel PCs and touch screen monitors, we've harnessed the vast reservoir of knowledge, resources, and technology, all under one roof. We are more than just manufacturers; we are solution providers, dedicated to meeting the unique requirements of our esteemed customers.



CHINA INDUSTRIAL MONITOR MANUFACTURER - A NAME YOU CAN TRUST

SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED proudly carries the distinction of being a China Industrial Monitor Manufacturer. Our products bear the hallmark of quality, precision, and technological prowess that China is renowned for. When you choose our 15.6 Inch Touch Screen Monitor, you're investing in a product designed and crafted with a passion for excellence, a dedication to customization, and the expertise of seasoned engineers and technicians.





POWERFUL LUMINANCE AT 1000 NITS

Our 15.6 Inch Touch Screen Monitor stands out in the industrial monitor landscape with its astounding brightness of 1000 nits. This high luminance ensures unrivaled visibility even in the most challenging environments, from sun-drenched manufacturing floors to dimly lit industrial settings. Your visuals are crystal clear, vivid, and immune to the impact of external light sources. Every detail is brought to life, enhancing efficiency and accuracy in your operations.



CUSTOMIZATION: OUR CORE VALUE

At SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED, we understand that every industry has unique demands. Our 15.6 Inch Touch Screen Monitor is a prime example of our commitment to customization. We go beyond off-the-shelf solutions, offering you the power to tailor your touch screen monitor to your precise requirements. Whether you need specific connectors, touch technologies, or industrial certifications, we've got you covered. Your vision becomes our mission.




FEATURES:



1. 15.6'' widescreen LCD panel, high resolution, wide viewing angle, high nits, true color.

2. 4K(3840*2160) resolution.

3. 1000 nits, sunlight readable.

4. Interfaces: 4*HDMI+1*DP+Type B USB for touch.

5. High performance mainboard, 7x24 continuous operation.

6. Support wall mounting, desk stand mouting etc.

7. Built-in auto light dimmer.



EXPANDING HORIZONS: FROM INDUSTRIAL AUTOMATION TO COMMERCIAL SMART TERMINALS

Over the years, our product and service portfolio has grown to span a wide range of industries, from industrial automation to commercial smart terminals, intelligent devices, and human-machine interfaces. The versatility of our 15.6 Inch Touch Screen Monitor is a testament to our evolution as a dynamic industrial monitor manufacturer. We stay ahead of the curve, adapting to the ever-changing technological landscape to provide innovative solutions.



SPECIFICATION:

Model:SL156
LCD panel
Panel size 15.6"
Resolution 3840*2160
Aspect ratio 4K
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 4x HDMI
DP 1x DP
Audio in/out Optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum alloy
Color Silver
VESA mounting 100x100mm
Operating Environment
Temperature Range Operating: -20 to 70°C, Storage: -20 to 80°C
Relative humidity Operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 3 kgs
Gross weight 4.5 kgs
Product Dimension 40.59*25.59*3.2 cm
Packing size 49*41*18 cm
Accessories HDMI cable, power cord, User Manual and Warranty card and etc
Other
Mounting way Wall mounting brackets (Optional)
Desk stand holder (Optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS



AVAILABLE SIZES:

Size Resolution Aspect ratio Touch type
10.1" 1280*800 16:10 capacitive/resistance
12.1" 1024*768 4:3 capacitive/resistance
15" 1024*768 4:3 capacitive/resistance
15.6" 1920*1080 16:9 capacitive/resistance
17" 1280*1024 5:4 capacitive/resistance
19" 1280*1024 5:4 capacitive/resistance
21.5" 1920*1080 16:9 capacitive/resistance
22" 1920*1080 16:9 capacitive/resistance
24" 1920*1080 16:9 capacitive/resistance
27" 1920*1080 16:9 capacitive/resistance



HOW TO CHOOSE THE TOUCHSCREEN MONITORS/DISPLAYS?

If you're thinking about buying one or more touchscreen monitors for your business, there are a few things you'll need to consider.

1.SIZE

You’ll probably discover that touchscreen monitors are available in a wide variety of sizes.Commonly size is 10.1 inch, 15 inch,15.6 inch and 17 inch. If you’re going to install it in a conference room, perhaps a larger touchscreen monitor would work best. But if you’re going to use it in individual workstations, a smaller monitor will likely suffice.

2.TOUCH TECHNOLOGY

All touchscreen monitors support touch commands. However, they way in which they identify these commands varies depending on the touch technology powering it. Most touchscreen monitors use either resistive or capacitive touch technology.

3.ASPECT RATIO

Aspect ratio refers to the ratio of the monitor’s width to its height. 4:3 was once the dominant aspect ratio for monitors, but most modern monitors — including touchscreen ones — now use an aspect ratio of 16:9.

4.PORTS

Check to see what type of ports the touchscreen monitor has and where those ports are located. If you want to connect peripherals to it, you’ll need the appropriate ports, such as an HDMI port.

Contact us to get a professional advice on your touchscreen monitor!



In conclusion, our 15.6 Inch Touch Screen Monitor is more than just a display; it's a gateway to the future of industrial computing. Explore the brilliance of 1000 nits brightness, experience the power of customization, and trust in the legacy of a China Industrial Monitor Manufacturer. Contact us today, and let's illuminate your vision together.
