27 Inch Pcap Touch Panel

Projective Capacitive touchscreen (P-CAP, Pro-Cap or PCAP touch screens) sensors function by maintaining a standing electrical charge across the sensor that extends through a contact surface, where changes in the electrical charge caused by the proximity of other capacitive bodies (such as touch stylus, fingers, etc.) can be detected by a touch controller.FINELINK's 27 inch pcap touch panel through various touch panel structures including anti-scratched glass layers. Owing to its highly durable and smooth surface, the PCAP touch screen is suitable for industrial monitors applications, Gaming, Transportation and so on. the waterproof technology of the Projected capacitive touchscreen, which can be operated with Works with water, dust, oil, moisten and provides a high-quality touch experience under harsh condition. (up to 10 touch points). FINELINK offers both standard and custom touchscreen display sizes.



Different kinds of touch panel



Specification

Item	27 inch capacitive touch panel
Ratio	16:9
Structure	G+G
Type	Capacitive
Touch controller	EETI/ILITEK
Connection	COB

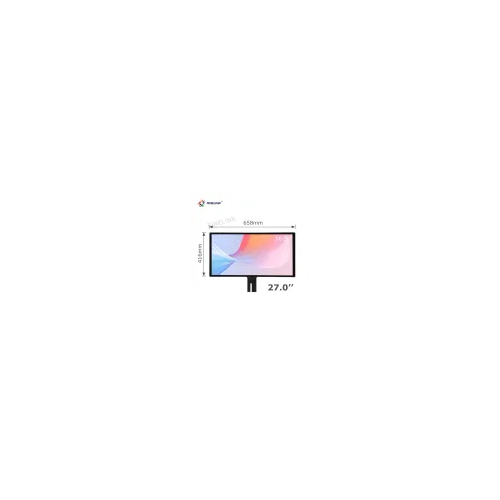

Lens OD	658*416mm
Sensor OD	618*360mm
Cover glass(T)	3mm
SENSOR(T)	0.7mm
Surface hardness	≥6H
Transmittance	≥85%
Touch points	10 Points
Operating Temperature	-20℃~+60℃
Interface Type	USB, RS232, I2C
Color	Black, White, Transparent, colors optional
Customized	AG/AG/AF/AM/AH/Waterproof/Glove touch
Operating system	WinXP/7/8/10, Android, IOS, Mac, Linux
Application	Industrial, medical, banking, consumer, military, education, HMI....
Warranty	12 Months（3 years maximum)

Note：All of the corners and edges of the glass that have chamfer process by CNC machines and all dimensions and tolerances will be defined on the drawing of the touch panel.



The 27 Inch Pcap Touch Panel Description

Thanks to its glass surface, the 27 inch pcap touch panel is particularly scratch-resistant and can be cleaned with all cleaning agents - an important advantage in hygiene-sensitive areas. This PCAP touchscreen technology is generally now used as the preferred method of user interface for modern tablets because the touch sensor on the rear allows for a true flat edge-to-edge cover glass giving this up-to-date feel for the touchscreen.

Finelink Touch Screen Monitor 27 Inch IC mainly uses IITEK and EETI chips, which have the characteristics of good stability, high cost performance and strong versatility. With three optional interface methods of I2C, USB and RS232, it can meet the needs of various users.

The 27 Inch Pcap Touch Panel meets the specification requirement of the ROHS standard criteria.

FINELINK will provide 12 months product guarantee under normal operation Conditions.

If the Touch Screen Monitor 27 Inch will be used in extreme conditions such as high temperature, high humidity, high altitude or long operation time etc., It is strongly recommended to for field application engineer’s advice. Otherwise, Its reliability and function may not be guaranteed.



Interactive Digital Signage Terminals
Self-service/self-automation
Gaming and lottery terminals
Medical devices
Information points and traffic kiosks
Retail Automation
Industrial Automation/Industrial Tablet

Finelink 27 inch pcap touch panel can be seen in smart home, industry, banking, outdoor commercial display, education, medical care, smart mirrors, games, transportation (cars, airports, railway stations, subway stations, bus stations) and other fields.



Packing & Delivery





Standard Package

Standard packaging with carton or wooden box

1.The touch panel packing with foam plastic materials;

2.Packing with carton or wooden box.



Multipe Shipping

Express: DHL, UPS, EMS, TNT, Fedex

Other: Air or sea transportation



Note:

Unpack the carton with the printed red arrow pointing up.

Hold a touch panel body instead of the FPC/COF all the time.

Avoid that the surface of the sensor glass is polluted after removing the protect film when assembly.



Certifications





FAQ about FINELINK



Q1: Are you a manufacturer or trading company?

A: Yes, we are a manufacturer specializing in PCAP more than 10 years,

with 30000 ㎡ production facilities located in ShenZhen and HuangGang HuBei City.



Q2: What is your MOQ?

A: We have no MOQ requirement for our standard models, For customized models,

There are different MOQ requirements depends on the size and complexity of customization.



Q3: How long is the warranty period?

A: Generally the warranty period is three years. It depends on different products.



Q4: What is the delivery time of the products?

A: Standard samples in stock can be delivered within 3 days after we received the payment.

7-15 workdays for the customized samples.

15-20 workdays for mass production.



Q5: What is your shipping method?

A: DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer.



Q6: What is the products application?

A: Widely used in comerical display, education, industrial control, medical, automotive, smart home, optical bonding and other fields.
