358 Fencing

358 mesh, often referred to as prison mesh, is the pinnacle of security fencing technology. Imagine a mesh so impenetrable that even the most determined intruders are left baffled. Small holes and welded seams at each intersection, meticulously designed to thwart any attempts at foot and finger grip, and to prevent even the tiniest objects from slipping through. This means your security is not compromised by traditional hand cutting tools - it's a fortress that truly keeps threats at bay.

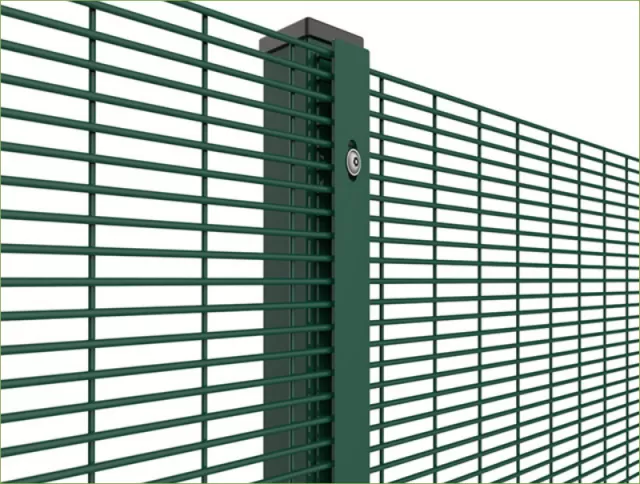

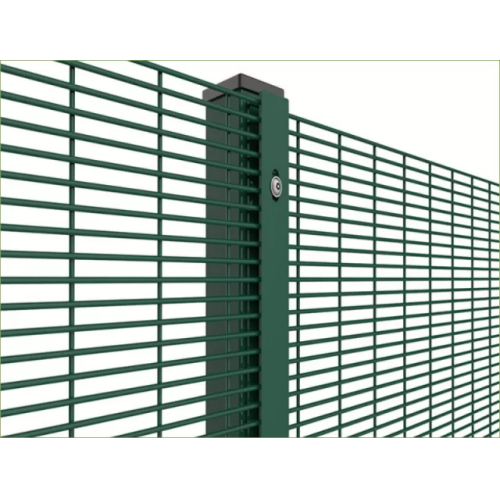

358 Mesh Fencing System

1. Unyielding Construction:

Mesh Opening: A mere 76.2 mm (3") × 12.7 mm (0.5"), ensuring no unauthorized access goes unnoticed.

Wire Diameter: A robust 4 mm for both horizontal and vertical wires, making it virtually indestructible.

2. Customization for Your Needs:

Panel Size: The popular panel size stands at 1800mm×2400mm, but customization is at your fingertips.

3. Durability Beyond Compare:

Weld Strength: A formidable range of 540–690 N/m2, ensuring longevity and durability.

Surface Treatment: Choose from three options – black wire welded then hot dip galvanized, powder coated after galvanized, or PVC coated after galvanized. Your choice, your style.

Colors: Available in classic green (RAL 6005) or sleek black (RAL 9005), with the option for any RAL color to match your aesthetic.

4. Complete Security System:

But the 358 Mesh Fencing isn't just about panels; it's a complete security system with fence posts and accessories:

Fence Posts: Crafted from Q235 Pipe for exceptional strength.

Post Section: Available in multiple sizes – 60×60mm, 80×80mm, 100×100mm, 120×120mm.

Post Plate Thickness: Choose from 2.5 mm, 3.0 mm, 4.0 mm, or 5.0 mm, depending on your specific security needs.

Finish: Inside and outside galvanized (Min. 275 g/m2), then protected with a polymer powder (Min. 60 micron) for resilience against the elements.

Colors: Match your posts to your panels for a seamless look.

Post Cap: Personalize your posts with either metal caps or plastic caps – the choice is yours.

358 mesh fence panels packaging

358 mesh fence panels packed in wooden pallets or steel pallets for the security of storage and transportation.

What is 358 Anti-Climb Fencing?

 358 high security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting, so it also named Anti-climb Fencing. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.

358 mesh fence Features

 Anti-climbing: more small openings, no toe or finger holds.

 Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.

 Strong welded point: The welded joints are fixed firmly, won't split by natural human and nature force.

 Smooth surface: The panel finish surface is well-proportioned for a decorative effect.

 Durable: The panel sheet is galvanized uniformly and PVC coated, which ensures a long service life.

358 anti climb fence application

 358 anti climb fence is a high secure fence, suitable places include:

 Prison.

 Military sites.

 Detention center.

 Psychiatric hospital.

 Airport.

 Bridge.

 Sub-station.

 Shipping port.

 Warehouse.

 Power plant.

 Laboratory.

 Petroleum and chemical facilities guarding.

 Industrial and commercial property, etc.

Specification

 358 mesh panel size

 · Mesh Opening: 76.2 mm (3") × 12.7 mm (0.5").

 · Wire diameter: 4 mm horizontal wire and vertical Wire.

 · Popular Panel Size: 1800mm×2400mm

 · Weld strength: range 540–690 N/m2.

 · Surface treatment: 1. Black Wire welded then hot dip galvanized only; 2. Powder coated after galvanized; 3. PVC Coated after galvanized

 · Colors: green (RAL 6005), black (RAL 9005). All RAL Colors is available.

 · All sizes can be customized according to buyers' request.

Fence posts

 Material: Q235 Pipe

 Post section: 60×60mm, 80×80mm, 100×100mm, 120×120mm.

 Post Plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.

 Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).

 Colors: same as panel.

 Post cap: metal caps or plastic cap.

 Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
