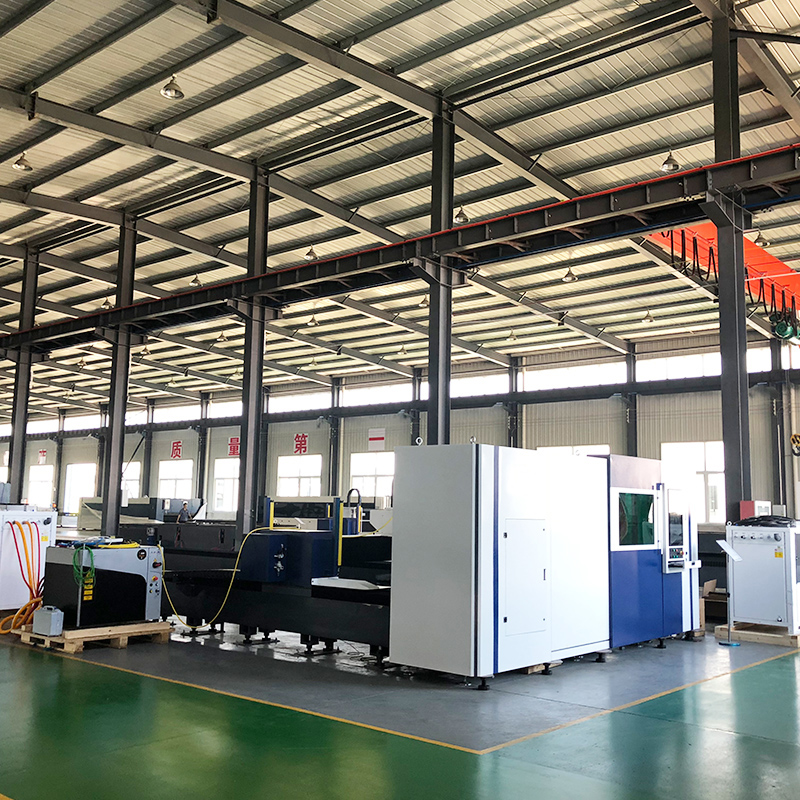

Semi-Enclosed Gantry Fiber Laser Cutting Machine

The one-piece plate welding bed can survive one-time processing and ensure the maximum running accuracy. Double air duct smoke exhaust, partition dust removal design, better smoke exhaust and dust removal effect. Anti-burning refractory brick design, anti-burning and heat insulation, prolonging the service life of the cutting table.

The segmented modular workbench can be disassembled and replaced without delaying production. The gravity-wrapped ultra-high-power full-hollow bed is covered with fire-resistant bricks to prevent the bed from being directly exposed to high-temperature baking and is more durable.

The dust removal channel and the cutting area adopt the design of partition dust removal, double channel dust removal with large air volume, filter system, thorough cleaning and dust removal, green and environmental protection.

The beam body adopts an integrated tensile beam, and the aviation aluminum lightweight gantry design realizes lightness and at the same time meets the rigidity requirements. The high-speed running inertia is small, the speed and acceleration can be switched freely, the action response is sensitive, and the control is precise.

Bevel cutting meets the one-time forming requirements of different types of bevels such as V, X, and Y. Imported bevel cutting components and five-axis CNC system are adopted, high-strength aluminum alloy casting swing arm is selected; the two-axis swing of the laser head is greater than +50", equipped with professional cutting and programming nesting software, the efficiency is greatly improved, and the bevel workpiece is of high quality. High dimensional accuracy.

The reliability and load capacity of the flat cutting head in the flat cutting system has been perfected, the superior technology brings the highest productivity, the constant and stable cutting quality and the best intelligent sensor, which can permanently monitor the condition of key components or cutting process parameters. We can recommend suitable cutting heads according to the Semi-Enclosed Gantry Fiber Laser Cutting Machine.

Laser power supply, stable power output, high electro-optical conversion efficiency, flat-top distribution of spot energy, unique and innovative hardware-level anti-high anti-reflective protection technology, can cut various high-reflective sheet materials, built-in high-power single-module integration, and the overall volume is smaller Small size, adopts separate design of photoelectric module, stable operation, less post-maintenance and more convenient, good cutting effect, can cut thicker plates, and has higher cutting efficiency for thin plates. Recommend laser power supply according to customer requirements.
