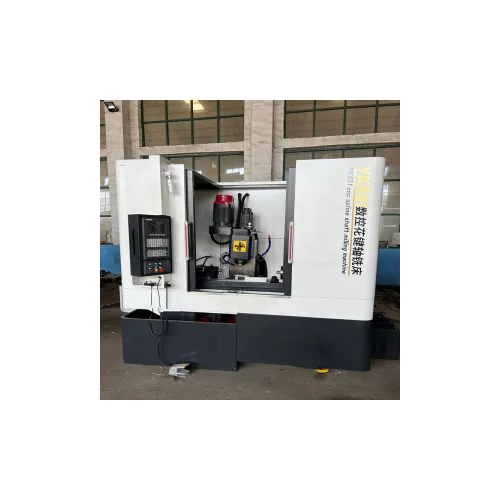

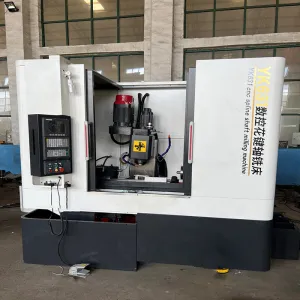

Spline Milling Machine

Gear Machining Solutions: Enhancing Precision with Spline Milling

Spline milling plays a crucial role in the manufacturing of shafts, gears, and various mechanical components. By machining grooves into raw materials, splines are formed, enabling torque transmission and preventing rotation. At Wuxi Geepro Machinery Import & Export Co., Ltd., we specialize in providing high-quality spline milling machines that deliver exceptional precision and efficiency for a wide range of industries.

Industry-Leading Spline Milling Machines

With extensive experience in exporting CNC hobbing machines, we have established ourselves as a trusted manufacturer in China. Our expertise lies in producing small module 1-6 modules machines, and we operate our own factory alongside a dedicated foreign trade branch focused on exports. Our commitment to delivering exceptional quality has led us to collaborate with leading suppliers in Europe, sourcing the main parts for our machines from renowned manufacturers in the industry.

We understand the importance of timely production, especially for state-owned enterprises and other companies facing extended lead times. While the industry average in China ranges from 5-6 months, our foreign trade export equipment boasts a significantly shorter lead time of 2-3 months. Additionally, we prioritize the production of export equipment to ensure prompt delivery. To learn more about our machines and services, kindly provide your contact information, and our professional staff will promptly reach out to you.

Unleashing the Power of Spline Milling

Spline milling involves machining grooves into raw materials to create the teeth of a spline. This process is essential for the production of various mechanical components, especially those found in rotating mechanisms like drive shafts. Spline milling has become more economical with the advent of multi-tasking and multi-axis machines, enabling efficient machining of spline shafts.

Let's explore the process of spline milling:

The raw material, which will serve as the spline shaft, is securely fitted into the indexing fixture of the milling equipment.
Side milling cutters, along with appropriate spacers and shims to achieve the desired spline width, are mounted onto the arbor of the milling equipment.
The arbor is then mounted onto the spindle of the milling machine, aligning the cutters over the raw material.
Using a process called straddle milling, the splines are cut into the shaft. The indexing fixture holds the spline shaft steady while the rotating milling cutters create grooves along its length. For deeper splines, multiple passes may be required to ensure uniformity.

Spline Cutting Techniques

Spline cutting encompasses various techniques, each suited for specific applications. The four main methods are:

Broaching: Involves using a broach tool to create splines by progressively cutting the desired shape into the workpiece.
Hobbing: Utilizes a specialized hobbing machine to generate splines on cylindrical workpieces.
Milling: Involves the use of milling machines to create splines by removing material from the workpiece.
Forming: Utilizes a forming rack or rolling dies to deform the workpiece material into the desired spline shape.

Partner with Geepro Machinery for Spline Cutting

Geepro Machinery has been a trusted name in the metal cutting industry since 2007. Our commitment to excellence and advanced technology allows us to provide top-notch spline cutting solutions. Our state-of-the-art hobbing and cutting tools ensure precise and reliable results. Whether you require external splines, internal splines, helix angles, involute tooth faces, or straight tooth faces, our spline milling machines are capable of meeting your specific needs.

Our spline milling machines offer a range of processes, including hobbing, rack rolling, and shaper cutting. These versatile machines find application in numerous industries such as automotive manufacturing plants, aerospace, agriculture, construction, electrical, custom hardware, pneumatic, hydraulic, and fluid control.

At Geepro Machinery, we prioritize customer satisfaction by offering high-quality spline milling machines that enhance machining efficiency while reducing maintenance costs. As a reputable supplier, we ensure the integrity of all machined parts produced by our spline milling machines. Whether you're looking to introduce a new spline milling machine to your facility or replace an outdated one, we've got you covered.

Contact us today to explore how our spline milling solutions can elevate your production capabilities. Experience the precision and reliability of Geepro Machinery's spline milling machines and unlock new possibilities for your business.
