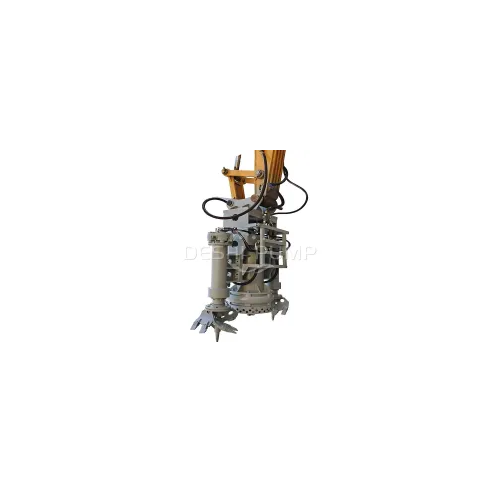

Excavator Mounted Dredge Pump
The Hydraulic Slurry Pump operates by using pressurized hydraulic fluid to drive a piston or plunger, which then moves the slurry through the pump. The design of the pump is such that the hydraulic fluid and the slurry do not come into contact with each other, preventing any damage to the pump from abrasive solids.
Product Description
DeShi DEYN Excavator Attached Hydraulic Pumps are suitable for 120, 150, 220, 240, 300, 330, 360 and other small, medium and large series of Excavators. Besides, Hydraulic Slurry Pump is specialized for those circumstances that are difficulty to dig, such as much more water and watery sludge and sand. Remove the bucket and connect to the hydraulic mortar pump, concentration of extraction with high efficient and density could be achieved. The work efficiency improves greatly with the matching Hydraulic Slurry Pump and long-distance transportation is also realized. In addition, The dredge pump could be equipped with hydraulic station and applies to the harsh environment. Hence, several difficulty conditions could be dealt with such as excavators digging ineffectively, long-distance transportation of mud and mortar, lack of electricity supply and frequent switching conditions. In conclude, Hydraulic Slurry Pump can supply to various conditions.
Design Features:
1. The bottom of the Hydraulic Slurry Pump has a mixing device, and it also could be equipped with bilateral or multilateral agitators additionally in order to prevent large pieces of fixed material clogging the Hydraulic Slurry Pump and fully making the solid and liquid mixed, thus it is more convenient to handle.
2. The DEYN Hydraulic Slurry Pump can handle the solid material with maximum particle up to 50mm, extraction concentration of solid-liquid could be up to 70% or more.
3. The DEYN Hydraulic Slurry Pump is mainly installed in the excavator, and powered by the excavator hydraulic station so that a free transition could be provided. Be sides, with the power source of the diesel engine, the problem of inconvenience of electricity during construction in remote areas can be solved.
4. Wetted parts: the pump casing, impeller, front wear liner, back wear liner and agitator are all made of high chrome alloy. Other materials can be customized.
5. With the unique seal device, it could avoid frequent changing machine seal and improves work efficiency.
Note: Due to different working conditions, DEYN Hydraulic Slurry Pump output may also change with the medium, operation, transportation distance and other factors.
DEYN Hydraulic Slurry Pumps Performance Parameters:
|
No |
Hydraulic Slurry Pump |
Hydraulic motor |
|||||||
|
Model |
Size (mm) |
Capacity Q (m3/h) |
Head H (m) |
Power P(kw) |
Granularity (mm) |
Output |
Pressure |
Capacity |
|
|
1 |
100DEYN100-10 |
100 |
100 |
10 |
7.5 |
25 |
32 |
25 |
48 |
|
2 |
80DEYN50-22 |
80 |
50 |
22 |
7.5 |
20 |
|||
|
3 |
80DEYN50-26 |
80 |
50 |
26 |
11 |
20 |
|||
|
4 |
100DEYN80-22 |
100 |
80 |
22 |
11 |
25 |
|||
|
5 |
100DEYN130-15 |
100 |
130 |
15 |
11 |
25 |
|||
|
6 |
100DEYN60-35 |
100 |
60 |
35 |
15 |
25 |
40 |
25 |
60 |
|
7 |
100DEYN100-28 |
100 |
100 |
28 |
15 |
25 |
|||
|
8 |
150DEYN150-15 |
150 |
150 |
15 |
15 |
30 |
|||
|
9 |
100DEYN100-35 |
100 |
100 |
35 |
22 |
25 |
50 |
25 |
75 |
|
10 |
100DEYN130-30 |
100 |
130 |
30 |
22 |
25 |
|||
|
11 |
150DEYN150-22 |
150 |
150 |
22 |
22 |
30 |
|||
|
12 |
150DEYN200-15 |
150 |
200 |
15 |
22 |
35 |
|||
|
13 |
150DEYN240-10 |
150 |
240 |
10 |
22 |
35 |
|||
|
14 |
100DEYN150-35 |
100 |
150 |
35 |
30 |
25 |
80 |
20 |
120 |
|
15 |
150DEYN180-30 |
150 |
180 |
30 |
30 |
30 |
|||
|
16 |
150DEYN240-20 |
150 |
240 |
20 |
30 |
35 |
|||
|
17 |
200DEYN300-15 |
200 |
300 |
15 |
30 |
35 |
|||
|
18 |
150DEYN280-20 |
200 |
280 |
20 |
37 |
35 |
|||
|
19 |
200DEYN350-15 |
200 |
350 |
15 |
37 |
35 |
|||
|
20 |
150DEYN200-30 |
150 |
200 |
30 |
45 |
30 |
112 |
27.5 |
168 |
|
21 |
200DEYN350-20 |
200 |
350 |
20 |
45 |
40 |
|||
|
22 |
200DEYN400-15 |
200 |
400 |
15 |
45 |
40 |
|||
|
23 |
150DEYN240-35 |
150 |
240 |
35 |
55 |
30 |
|||
|
24 |
200DEYN300-24 |
200 |
300 |
24 |
55 |
40 |
|||
|
25 |
250DEYN500-15 |
250 |
500 |
15 |
55 |
45 |
|||
|
26 |
150DEYN240-45 |
150 |
240 |
45 |
75 |
35 |
125 |
28 |
188 |
|
27 |
200DEYN350-35 |
200 |
350 |
35 |
75 |
45 |
|||
|
28 |
250DEYN500-20 |
200 |
500 |
20 |
75 |
46 |
|||
|
29 |
200DEYN400-40 |
200 |
400 |
40 |
90 |
45 |
160 |
27 |
240 |
|
30 |
250DEYN550-25 |
200 |
550 |
25 |
90 |
45 |
|||
|
31 |
300DEYN660-30 |
300 |
660 |
30 |
110 |
50 |
|||
|
32 |
300DEYN800-22 |
300 |
800 |
22 |
110 |
50 |
|||
|
33 |
250DEYN500-45 |
300 |
500 |
45 |
132 |
50 |
200 |
27.5 |
300 |
|
34 |
300DEYN700-35 |
300 |
700 |
35 |
132 |
50 |
|||
|
35 |
300DEYN1000-22 |
300 |
1000 |
22 |
132 |
50 |
200 |
28 |
300 |
DEYN Hydraulic Slurry Pumps Applications:
Dredging, Sand & Gravel
1. Sand extraction and transport
2. Sand and gravel mining
3. Dredging harbors and marinas
4. Port maintenance
5. Dredging of canals and harbors
6. Clean-up of rivers, lakes and lagoons
7. Dam dredging
8. Beach reclamation
9. Heavy soils
Mining
1. Mining and tailings reclamation
2. Clean-up of setting tanks
3. Extraction of coal, minerals and sand
Offshore
1. Underwater work
2. Ecological recovery
3. Clean-up of locks
4. Emptying of caissons and bulkheads
5. Barge transfer
Industry
1. Pumping industrial waste, extraction of slag, forge scale, calcines, sludge, setting sludge, petroleum and tar residues
2. Thermal Power plants – Ash pits
3. Construction and public works
4. Inert wash sludge
5. Marble dust
6. All types of effluent with solids in suspension
7. Sewage
8. De-watering
Experience seamless material transfer like never before. Our Hydraulic Slurry Pump combines precision engineering with hydraulic efficiency, ensuring exceptional flow rates and unparalleled reliability. Whether you're excavating, dredging, or tackling demanding industrial processes, this pump stands as your trusted partner in optimizing productivity and minimizing downtime.
Say goodbye to inefficiencies and hello to a new era of operational excellence. The Hydraulic Slurry Pump is not just a pump – it's your gateway to streamlined workflows, increased throughput, and superior performance. Discover the future of material handling today!
