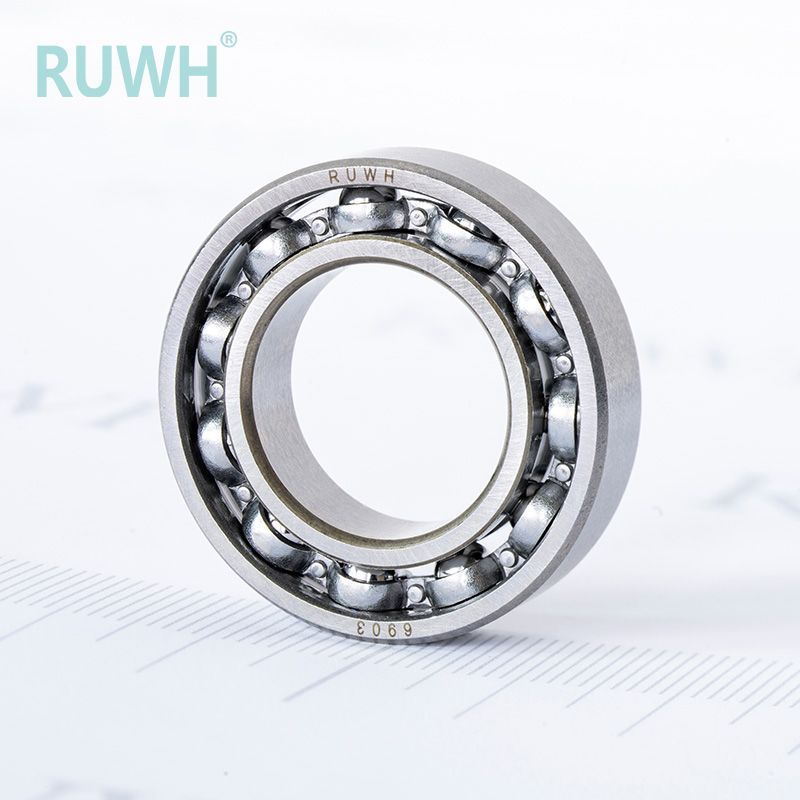

6903 2RS/ZZ/OPEN Bearing
RUWH is a famous brand of bearings in China, 6903 2RS/ZZ/OPEN ABEC-3 Deep Groove Rolling Bearings, Dimension 17*30*7mm, Clearance according to customer requirements, material Gcr15, quality P6 Z3V3, P5 Z4V4.
Product Description
6903-2RS sealed ball bearing with 17 mm inner diameter, 30 mm outer diameter and 7 mm width. 6903-2RS is a popular size and can be used in many applications. The bearing is made of chrome steel. 6903-2RS bearing has 2 built-in-built-in rubber seals to protect the bearing from dust or any possible contamination. 6903-2RS bearing has been pre-lubricated with grease.
The 6903-2RS and 6903-ZZ are a 17 mm ball bearing that can be found in many applications. 6903-2RS ball bearings have two contact rubber seals on each side of the ball bearing. 6903-ZZ ball bearings have two non-contact metal shields on each side of the ball bearing. If your application requires a 6903 ball bearing with only one seal or shield, you can obtain the ball bearing and remove one of the shields or seals. These 17 mm inch ball bearings are of high quality and can meet the needs of motors if required.
RUWH 6903-2RS Ball Bearing Dimensions
Bearing size: 6903-2RS
Size (d): 17mm
Dimension (D): 30mm
Dimension (B): 7mm
Rated dynamic load: 1050 lbs
Rated Static Load: 570 lbs
Speed limit (grease): 16800 RPM
Weight: 0.004 lb
RUWH 6903 2RS Bearing Features |
Hot Sale |
| Suitable For Precision | |
| Low Noise | |
| Stable Quality | |
| High Speed | |
| Water Proof | |
| For Transmission Parts | |
| Efficient Operation | |
| Long-Lasting Silence | |
| Electric Motor Quality | |
| High Temperature Resistance | |
| Uniform Hardness | |
| Wear Resistance | |
| Corronsion-Resistant | |
| Long-Term Performance | |
| Tube Packing | |
| Single Box Packing | |
| Long Life | |
RUWH 6903 2RS Bearing Advantage |
Emq Quality |
| 100% Fully Auto-Inspection | |
| Devliery In 48hours | |
| 11 Million Sets Per Month | |
| All Raw Materials Are Purchased And Controlled By Ruwh | |
| 4 Heat Treatment Lines | |
| Automatic Production Line | |
| Stable Raw Material Supplier | |
| 5s Management | |
| Iatf16949 Certificate | |
| Production And Inspection In Strict Accordance With The Process | |
| Professional After-Sales | |
| Sufficient Stock | |
| Warranty | |
| Free Replacement Within 1 Year | |
| Reply Within 48hours If There Is Problem | |
| The Motor Bearing Will Run For 30,000hours | |
| Maintenance Free Solutions | |
RUWH 6903 2RS Bearing Application |
For Automotive |
| For Household Appliances | |
| For Pumps | |
| For Gearboxes | |
| For Electric Motors & Generators | |
| For Electric Power Tools | |
| For Office Equipments | |
| For Heavy Vehicles | |
| For Motorcycles | |
| For Diy & Garden Tools | |
| For Conveyors | |
| For Lifts | |
| For Sports & Exercise | |
| For Machineries |
Ningbo Renhe Machinery Bearing Co., LTd is a China bearing manufacturer, please save our email(pauline@ruwhbearing.com) or send us an inquiry!
| Certification: | ITAF16949 |
| Description: | deep groove ball bearing |
| MOQ: | 3000pcs |
| Price: | Negotiate |
| Packing: | Tube packing or single color box/carton/pallet |
| Delivery Time: | 48hours after receipt payment |
| Payment Terms: | L/C,T/T |
| Capacity: | 13 million per month |
| Cage: | SPCC |
| Grease qty: | 30% as usual |
| Long life: | Reduce replacement frequency and maintenance costs |
| Noise Grades | Z3,Z4 |
| Vibration Grades | V3,V4 |
| Precision | P6(ABEC-3),P5(ABEC-5) |
| Application: | Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation, roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts |
| Features: | simple configuration,high speed,less cefficient of friction,less vibration and noise |
