box stitching machine
Product Description
Payment：tt
Minimum Order：1
Delivery：-
Origin：china
Packing：-
Inspection：-
Samples：Not Avaliable
Remarks：box stitching machine
box stitching machine, box stitching machine spare parts, semi auto stitcher, semi auto stitching machine, Semi Automatic Stitching Machine,Semi Auto Servo Stitching Machine,servo stitching machine,
two piece joint stitcher, two piece box stitching machine,twin head joint stitcher ,two head box stitching machine,double head stitching machine,Double Head Box Stitching Machine
Corrugated Box Joint Stitcher,Corrugated Box Stitching Machine,Carton box joint stitcher,Carton Box Stitching Machine,cardboard box stitching machine
1. Adopt Import Double Servo Control System
2. Applied single, double and irregular corrugated carton stitching
3. Available for single, double and strengthen nail
4. Suitable for 3,5,and 7-Layer carton boxes
5. Operating sizes are adjusted by computer, running errors showed on the screen
6. Automatic counter ejector and bundle sheaves of cartons to make working efficiently
7. Stitching Pitch from 30-120mm adjusted by computer

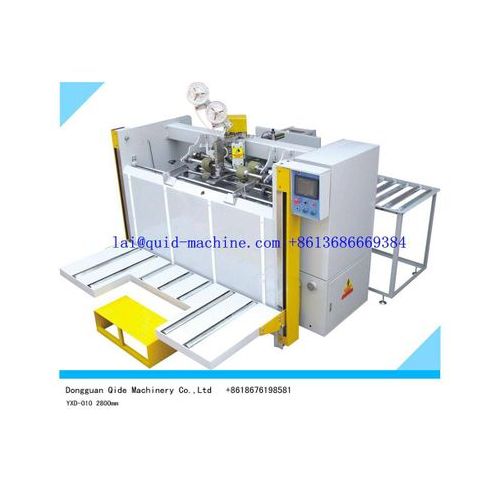

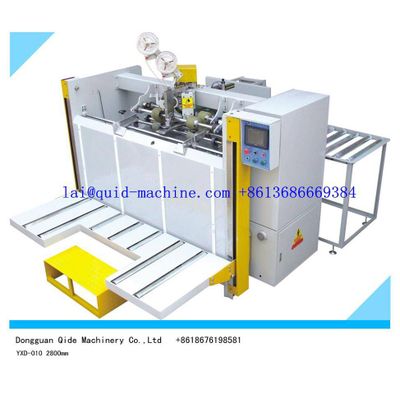

Double Servo Control box stitching machine 1515mmx2800mm
Patent No.:ZL200920130584.9 ZL2009201305285.3
Specification for Double Servo Control Semi Auto Stitcher (Single Piece)
specification YXD-010S
1515X2800mm
Max sheet size (L+W)×2 2800mm
Min sheet size (L+W)×2 606mm
Max sheet size (W+H)×2 1515mm
Min sheet size (W+H)×2 300mm
Machine Speed 500 Stitches/Minute
Stitching Pitch 30-120mm
Height of feeder 900mm
Power Required 6HP
Machine Length 2800mm
Machine Weight 2000KG
Stitching Type Single, double, Tie Stitching:
No.of Stitches 1-99 Stitches or more
The first Stitching pitch 25mm
Stitching wire(Width x Thickness) (1.8-2.0) X (0.68-0.75)mm
2. Applied single, double and irregular corrugated carton stitching
3. Available for single, double and strengthen nail
4. Suitable for 3,5,and 7-Layer carton boxes
5. Operating sizes are adjusted by computer, running errors showed on the screen
6. Automatic counter ejector and bundle sheaves of cartons to make working efficiently
7. Stitching Pitch from 30-120mm adjusted by computer
Double Servo Control box stitching machine 1515mmx2800mm
Patent No.:ZL200920130584.9 ZL2009201305285.3
Specification for Double Servo Control Semi Auto Stitcher (Single Piece)
specification YXD-010S
1515X2800mm
Max sheet size (L+W)×2 2800mm
Min sheet size (L+W)×2 606mm
Max sheet size (W+H)×2 1515mm
Min sheet size (W+H)×2 300mm
Machine Speed 500 Stitches/Minute
Stitching Pitch 30-120mm
Height of feeder 900mm
Power Required 6HP
Machine Length 2800mm
Machine Weight 2000KG
Stitching Type Single, double, Tie Stitching:
No.of Stitches 1-99 Stitches or more
The first Stitching pitch 25mm
Stitching wire(Width x Thickness) (1.8-2.0) X (0.68-0.75)mm
Product Feature
semi auto stitcher
Product Specification / Models
YXD-010 2800mm
Application / Models
corrugated cardboard,carton box,corrugated paper
