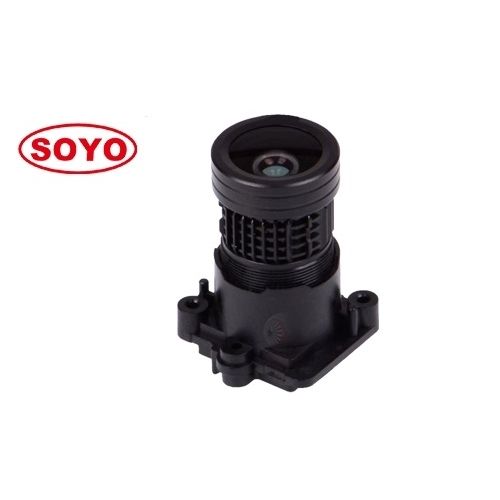

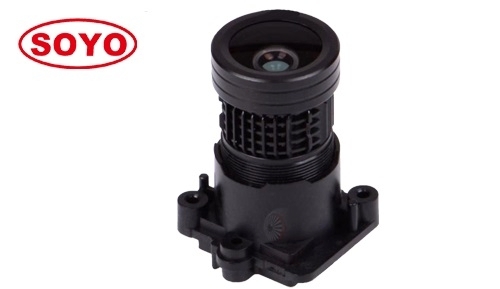

Black-light, Star-light, M16/M12 12 Megapixel CCTV Lenses 3.6mm, 5mm, 8mm 1/1.7"
Product Description
Min Order Quantity：1 Piece
Supply Ability：5000pcs
Port：Shanghai
Delivery Lead Time：2-3 working days
Country/Region：China
City：Shanghai
Product Attributes
- - Model Number SBF0520IR-12M
- - Place of Origin China
- - Supply Type In-Stock Items
- - Condition New
- - Color Dark Blue
- - Related Keywords machine vision FA, low distortion, telecentric lens, CCTV lens ITS, Industrial lens
Description by Manufacturer
CCTV Lens Features:
- High resolution: 5.0 megapixel can cover 3MP,1080P, 720P
- Big aperture: F0.95 black light support evening dark vision
- Large format: 1/1.8" can cover all 1/1.8", 1/2", 1/2.5"
- Wide FOV : Super wide FOV support short distance view.
- IR correction : 24h day & night vision
- Aspherical lens: Inside Aspherical element helps imaging far better.
- Application: Smart home, security surveilance, office, room, bank etc.
- www.soyocctv.com for more
Model | S18BF0495IR-5M | |
Resolution | 5.0 Megapixel | |
IR Correction | IR | |
Format (inch) | 1/1.8" | |
Focal Length (mm) | 4.0 mm | |
B.F.L (mm ) | 5.93mm | |
Aperture (Close) | F0.95Fixed iris | |
Angle of View (°) | 1/1.8" | 108*92*49 |
1/2" |
| |
1/2.5" |
| |
M.O.D (m) | 0.2m | |
Distortion | -12.9% | |
Spectral transmission | >85%@550nm,>83%@650nm,>70%@850nm | |
Relative illumination | 45% @ ∅8.8 | |
Size | Φ18*26.6 | |
T.T.L(mm) | 31.93mm | |
Mount | M16*P0.5 | |
Weight (g) | 16g | |
Marks | 3G3P |
| Model | SBF0520IR-12M | |
| Resolution | 12 Megapixel | |
| IR Corrected | IR | |
| Format (inch) | 1/1.7" | |
| Focal Length (mm) | 5.0mm | |
| B.F.L (mm) | 6.39mm | |
| Aperture (Close) | F2.0 Fixed iris | |
| Angle of View (°) | 1/1.7" | 114*87*61 |
| 1/2" | ||
| 1/2.5" | ||
| M.O.D (m) | 0.3m | |
| Size | Φ17*29.4 | |
| Distortion | <-43.7% | |
| Mount | M12 | |
| Weight (g) | 12 |
| Model | SBF3220IR-12M | |
| Resolution | 12 Megapixel | |
| IR Corrected | IR | |
| Format (inch) | 1/1.7" | |
| Focal Length (mm) | 3.2mm | |
| B.F.L (mm) | 6.14mm | |
| Aperture (Close) | F2.0 Fixed iris | |
| Angle of View (°) | 1/1.7" | 160*131*99 |
| 1/2" | ||
| 1/2.5" | ||
| M.O.D (m) | 0.3m | |
| Size | Φ28*38.9 | |
| Distortion | <-64% | |
| Mount | 12 | |
| Weight (g) | 26 |
| Model | SBF0820IR-12M | |
| Resolution | 12 Megapixel | |
| IR Corrected | IR | |
| Format (inch) | 1/1.7" | |
| Focal Length (mm) | 5.0mm | |
| B.F.L (mm) | 10mm | |
| Aperture (Close) | F2.0 Fixed iris | |
| Angle of View (°) | 1/1.7" | 69.5*55.6*40.3 |
| 1/2" | ||
| 1/2.5" | ||
| M.O.D (m) | 0.3m | |
| Size | Φ17*33.1 | |
| Distortion | <-15.6% | |
| Mount | M12 | |
| Weight (g) | 12 |
| Model | SBF60501-6M | |
| Resolution | 6.0 Megapixel | |
| Format (inch) | 1/1.8" | |
| Focal Length (mm) | 5mm | |
| Aperture (Close) | F2.5 Fixed Iris | |
| Angle of View (°) | 1/1.8" | 105*84*52 |
| 1/2" | ||
| 1/3" | ||
| M.O.D (m) | 0.3m | |
| Size | Φ20x25.2mm | |
| Distortion | -4.6% | |
| Mount | M12 | |
| Weight (g) | 16 |
(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTVレンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )
| Motorized Zoom Lens Megapixle | ||||||
| Model No. | Format | Mount | Focal length (mm) | Aperture | Iris | IR |
| SMZ0660DIR | 1/3" | CS | 6-60 | F1.4 | DC | IR |
| SMZ10400DPIR | 1/2" | C | 10-400 | F4.5 | DC | Preset, IR |
| SMZ0880DPIR-2M | 1/2" | C | 8.0-80 | F2.0 | DC | 2.0MP |
| SMZ10120DPIR-2M | 1/2" | C | 10-120 | F2.0 | DC | 2.0MP |
| SMZ10220DPIR-2M | 1/2" | C | 10-220 | F2.0 | DC | 2.0MP |
| SMZ10320DPIR-2M | 1/2" | C | 10-320 | F2.0 | DC | 2.0MP |
| SMZ10380DPIR-3M | 1/1.8" | C | 10-380 | F2.0 | DC | 3.0MP |
| SMZ125D750PIRA-M | 1/2" | C | 12.5-750 | F4.0 | DC | 1.3MP Anti-fog |
Skype: soyocctv
CCTV lens, megapixel lens varifocal lens,camera lens,machine vision lens, motorized zoom lens, fisheye lens, FA lens, industrial lens, M12 lens, color sorting lens, MTV lens, board lens,lenses,lentz
Price
- Price US$ 1 / Piece
Packaging & Shipping
- - PackingStadnard
- - Delivery Lead Time2-3 working days
- - Minimum Order 1 Piece
- - Supply Ability5000pcs
- - Total quantity in StockOver 5000
- - Delivery PortShanghai
- - HS Code9002199010
