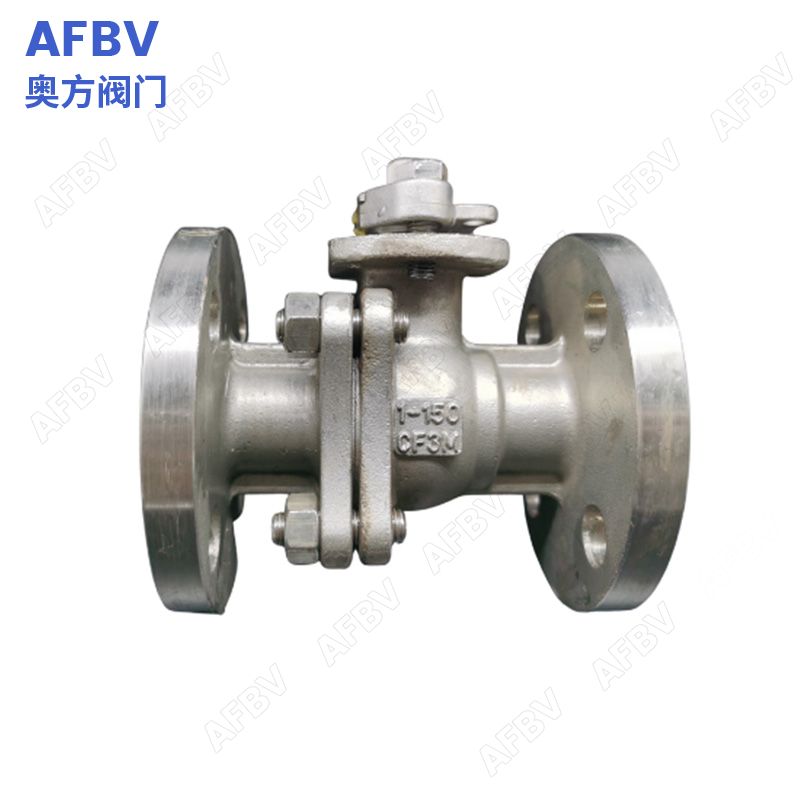

Stainless Steel Flange Ball Valve

Stainless steel flange ball valve

The stainless steel flange ball valve is a full-bore ball valve equipped with flange connections. The purpose of flanged ball valves is to permit or block the flow within a pipeline system and ensure pressure maintenance within the pipeline. Featuring a spherical valve disc, ss flange ball valve regulates the fluid flow by opening and closing. The design of these valves aims to maintain a tight and leak-free seal. The thread ball valves stand as crucial components in the installation of pipeline systems for transporting liquids, gases, slurries, and more.

The ANSI flange end ball valve is a full-bore ball valve with flange connections specifically designed for flow control and shut-off purposes. Constructed from stainless steel materials, ANSI flange stainless steel ball valves are suitable for general water, oil, and gas applications. These stainless steel flanged ball valves incorporate a fire-safe design and are tested in accordance with API 598 standards.

Features: The AFBV stainless steel flange ball valve is a type of ball valve whose closing member is a sphere that opens and closes by rotating around the centerline of the valve body.

Purpose: ss flanged ball valve is mainly used in pipelines to cut, distribute and change the flow direction of media.

Structure: Flanged connections allow easy connection to piping systems.

Flow Regulation: Ball valves, especially those designed with a V-shaped opening, have good flow regulation capabilities, making them useful in applications where fluid flow needs to be adjusted.

Technical specification

Full Port

Locking/No Locking

Blow-Out Proof Stem

Spring Ball Seat Design

Precision Casting

Design Standard: ASME B16.34/DIN/JIS

Testing Standard: API 598/SP-110/GB/DIN

Light/Middle /Heavy type available
