Very Low Frequency Tester VLF HV Hipot Tester VLF Seno Megger For Electric Testing Equipment

Product Description

Payments:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Delivery:5-10

Origin:china

Packing:wooden box

Inspection:yes

Sample Price:$3,000.00

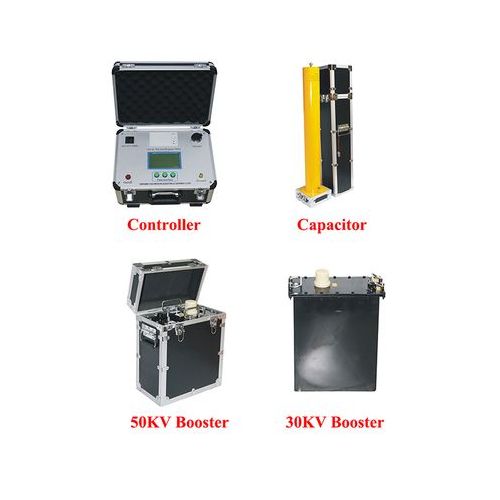

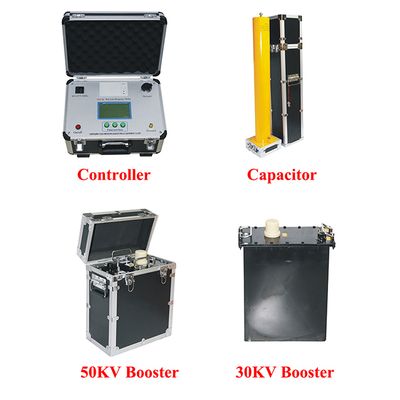

Remarks:Output frequency:0.1Hz, 0.05Hz, 0.02HzOutput voltage: 30kV, 50kV, 60kV, 80kV or others Type:Portable, high performance hipot tester Composition:One controller, one or two booster, beautiful hipot tester Power supply:220V 50Hz Weight:25kg ~ 80kg

Very Low Frequency Tester VLF HV Hipot Tester VLF Seno Megger For Electric Testing Equipment

Product Description

Introduction

----Very Low Frequency Tester VLF HV Hipot Tester VLF Seno Megger For Electric Testing Equipment

  • VLF Tester is designed and manufactured for electrical equipment very low frequency withstand voltage test.
  • Very low frequency withstand voltage test is essentially an alternative of power frequency withstand voltage test. It is much smaller, lighter and portable than power frequency withstand voltage tester. It is proved home and abroad that 0.1Hz ultra-low frequency withstand voltage test can replace power frequency withstand voltage test.
  • It can be applied for 10kV, 35kV, 300MW thermal power machine, 10kV, 35kV power transformer and other electrical equipment.

Features

----Very Low Frequency Tester VLF HV Hipot Tester VLF Seno Megger For Electric Testing Equipment

  • Data of current, voltage and wave form can be directly sampled at high voltage side, so the data is real and accurate;
  • Over-voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself; the actuation time is less than 15ms;
  • Over-current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 15ms;
  • A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside;
  • As a result of high and low voltage closed-loop negative feedback control circuit, the output without capacities rise effect;
  • High-voltage control part adopts innovative light control HV switching unit, control is accurate, safe and reliable;
  • With color man-machine interface touch control plus controls modular software operating system, precise and intuitive;

Specifications

----Very Low Frequency Tester VLF HV Hipot Tester VLF Seno Megger For Electric Testing Equipment

  • Max voltage output: refer to following table;
  • Output frequency: 0.1Hz, 0.05Hz, 0.02Hz;
  • Measurement accuracy: 2.5%;
  • Positive and negative voltage peak errors < 2.5%RDG+0.3%FS;
  • Voltage wave form distortion:<3%;
  • Insulation resistance measurement error:<2.5%;
  • Leakage current measurement error:<2.5%;
  • Power supply:AC220V ± 10%, 50Hz/60Hz;
  • Environment temperature: 0~50°C;
  • Humidity:≤85%RH;

Model

Rated Voltage/current

Load Carrying Capacity

Power fuse wire

30

30kV/20mA

(Peak)

0.1Hz,≤0.5µF~1.1µF

5A

0.05Hz,≤0.5µF~2.2µF

0.02Hz,≤0.5µF~5.5µF

50

50kV/30mA

(Peak)

0.1Hz,≤0.5µF~1.1µF

7A

0.05Hz,≤0.5µF~2.2µF

0.02Hz,≤0.5µF~5.5µF

60

60kV/30mA

(Peak)

0.1Hz,≤0.5µF

9A

0.05Hz,≤0.5µF~1µF

0.02Hz,≤0.5µF~2.5µF

80

80kV/30mA

(Peak)

0.1Hz,≤0.5µF

12A

0.05Hz,≤0.5µF~1µF

0.02Hz,≤0.5µF~2.5µF
