Black Iron Wire Cloth

• Black Iron Wire Cloth

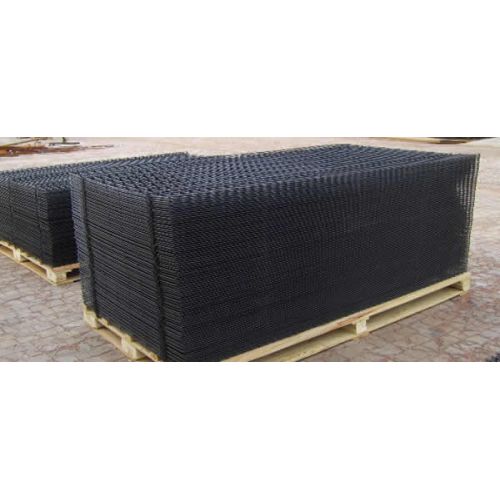

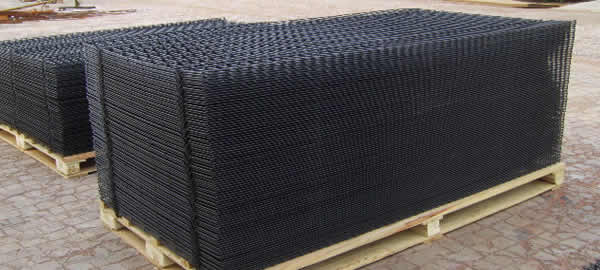

Black mild steel wire mesh is a kind of plain welded wire fabric made of iron wire without any further surface treatment. Available in both flat panels and rolls in wide large range of wire gauges and mesh sizes. All the non-galvanizing welded meshes are manufactured from bright re-drawing mild steel wire with each intersection electronically welded. Mainly used in building construction, mine pits / tunnel supporting and reinforcing, breeding and other fields.

Structures:
Wires running the length of the panel or roll which are known as the line wires, to which cross wires are welded at right angles. Panels are available with either flush edges or with overhangs where cross wires will project beyond the outside line wires. The holes can be rectanuglar or square.

Black welded mesh sheets supplied with long & cross wire spacing between 12.5 mm and 200 mm. Wire diameter varies between 0.90 mm to 6 mm.

Features and Uses:
The product is fabricated in accordance with the international standards. As the most simple processed mesh fabrics among the welded wire families, black weld mesh is extensively used in different commercial applications.
