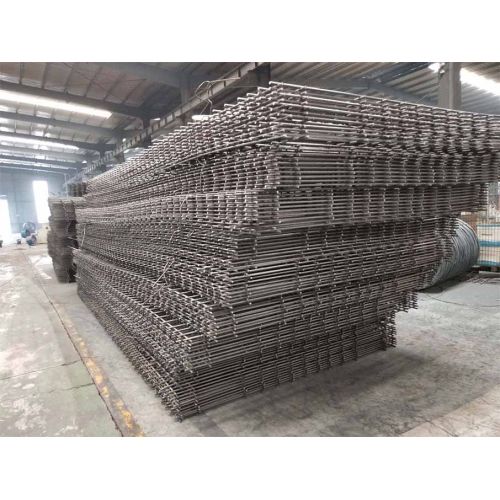

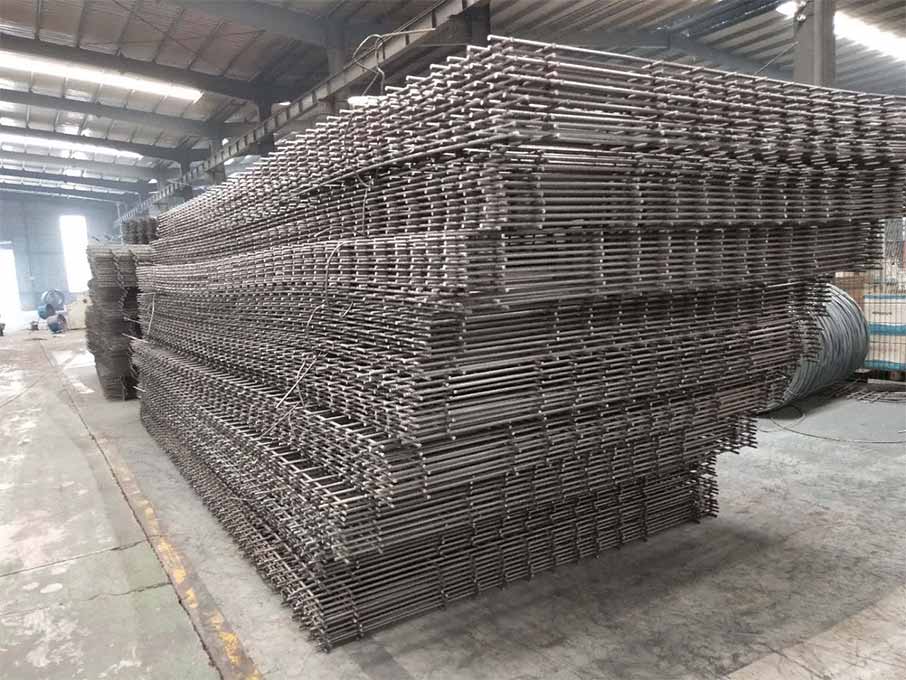

PPAF R / PPAF C / PPAF V BRC Mesh / reinforcement meshes
Looking for top-notch BRC Mesh solutions? Look no further! ANPING HEYOU WIRE MESH PRODUCTS CO.LTD, stands as a seasoned expert with 14 years of dedicated experience in crafting superior steel mesh products.
Product Description
PPAF R / PPAF C / PPAF V BRC Mesh / reinforcement meshes
Heyou Wire Mesh - Trusted Brc Mesh Manufacturer
Looking for top-notch BRC Mesh solutions? Look no further! ANPING HEYOU WIRE MESH PRODUCTS CO.LTD, stands as a seasoned expert with 14 years of dedicated experience in crafting superior steel mesh products. If you need any help please feel free to contact us.
Heyou wire mesh factory can supply reinforcement meshes accordance to Normes Francaises NF A 35 016-1996. The material of reinforcement meshes of which chemical component and mechnical properties is suit for Norm NF EN10020 is FeE500-2 or FeE500-3.
Why Choose Heyou Wire Mesh for Your Brc Mesh Needs?
Proven Expertise: With a rich legacy in steel mesh production, Heyou Wire Mesh specializes in creating BRC Mesh and other wire mesh products that adhere to the highest industry standards.
Quality Assurance: Every step of our manufacturing process undergoes rigorous inspection, ensuring that our BRC Mesh not only meets but exceeds your expectations.
Customization at its Best: Want to better apply BRC mesh in different scenarios? Our team is dedicated to providing customized products that align perfectly with your project requirements.
Technical Support: Beyond just delivering products, we offer comprehensive technical support. Our experts can assist you in measuring physical properties, designing construction plans, and adapting products to suit your unique construction needs.
Global Recognition: Heyou Wire Mesh products have gained recognition worldwide. From Australia to Europe, America to the Middle East, Africa to Southeast Asia, our BRC Mesh is trusted and used in diverse regions.
Stringent Third-Party Inspection: Your satisfaction is our priority. Before shipment, our products undergo thorough third-party inspections, ensuring that you receive nothing short of excellence.
24/7 Online Support: Need assistance at any time? Our 24-hour online customer service is ready to help.
The Mechenical Properties of FeE500-2 and FeE500-3 as Below
|
Material No. |
Limite supérieure d' écoulement RaH N / mm2 1) |
Rapport Rm / ReH |
Total elongation at maximum load, Agt % |
|||
|
Valeur du fractiles |
borne frontière |
Valeur du fractiles |
borne frontière |
Valeur du fractiles |
borne frontière |
|
|
FeE500-2 |
500 |
475 |
1.03 |
1.01 |
2.5 |
2 |
|
FeE500-3 |
500 |
475 |
1.08 |
1.05 |
5 |
4 |
|
1) 1N/mm2 = 1MPa 2) Rm = Tensile strength |
||||||
The Drawing of BRC Mesh / Reinforcement Meshes as Below
|
|
|
|
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars |
L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
The Specification of BRC Mesh/Reinforcement Meshes as Below
|
mesh type |
diameter of wire(mm) |
Pitch of wires(mm) |
Dimension of Mesh |
Area of Mesh(sqmm) |
Per meter area sqm / m |
Weight of Mesh (kg) |
Mass (kg/sqm) |
||||
|
dL |
dC |
pL |
pC |
B(mm) |
L(mm) |
long |
cross |
||||
|
PPAF R |
4.5 |
4.5 |
200 |
300 |
2400 |
3600 |
8.64 |
80 |
53 |
9 |
1.042 |
|
PPAF C |
4.5 |
4.5 |
200 |
200 |
2400 |
3600 |
8.64 |
80 |
80 |
10.8 |
1.25 |
|
PPAF V |
4.5 |
4.4 |
200 |
160 |
2400 |
3200 |
7.68 |
80 |
99 |
9.6 |
1.25 |
|
PST 10 |
5.5 |
5.5 |
200 |
200 |
2400 |
4800 |
11.52 |
119 |
119 |
21.542 |
1.87 |
|
PST 20 |
6 |
7 |
150 |
300 |
2400 |
6000 |
14.4 |
188 |
128 |
35.808 |
2.487 |
|
PST 25 |
7 |
7 |
150 |
300 |
2400 |
6000 |
14.4 |
257 |
257 |
43.488 |
3.02 |
|
PST 30 |
6 |
7 |
100 |
300 |
2400 |
6000 |
14.4 |
385 |
128 |
46.464 |
3.227 |
|
PST 35 |
7 |
7 |
100 |
300 |
2400 |
6000 |
14.4 |
385 |
128 |
57.984 |
4.027 |
|
PST 45 |
9 |
8 |
150 |
300 |
2400 |
6000 |
14.4 |
424 |
168 |
66.864 |
4.643 |
|
PST 50 |
8 |
8 |
100 |
300 |
2400 |
6000 |
14.4 |
503 |
168 |
75.84 |
5.267 |
|
PST 60 |
9 |
8 |
100 |
200 |
2400 |
6000 |
14.4 |
636 |
251 |
100.296 |
6.965 |
|
PST 25C |
7 |
7 |
150 |
150 |
2400 |
6000 |
14.4 |
257 |
257 |
57.984 |
4.027 |
|
PST 40C |
7 |
7 |
100 |
100 |
2400 |
6000 |
14.4 |
385 |
385 |
86.976 |
6.04 |
|
PST 65C |
9 |
9 |
100 |
100 |
2400 |
6000 |
14.4 |
636 |
636 |
143.712 |
9.98 |
