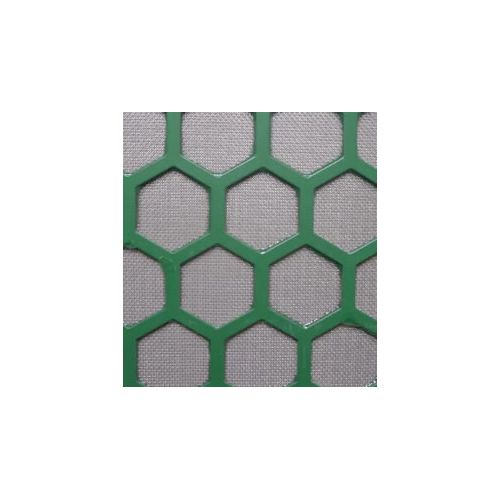

Oil Drilling Shale Shaker Screen

Product Description

Membership:Free Member Scince Jun 14, 2023

FOB Price:Atlas Wedge Wire Co.

Min. Order Quantity:Atlas Wedge Wire Co.

Supply Abillity:Atlas Wedge Wire Co.

Port:Atlas Wedge Wire Co.

Payment Terms:Atlas Wedge Wire Co.

Package:Atlas Wedge Wire Co.

Keyword:Oil Drilling Shale Shaker Scre

Product Detail
Company Info
Quick Detail
Place of Origin
China [CN]
HS-CODE
7314-20
Package & Delivery Lead Time
Package
Atlas Wedge Wire Co.
Detailed Description

We supply metal wire vibratory screen supplied in standard accessories / OEM for Various Shale Shakers and Motion Solid Control Devices. Our vibrating shaker screen is mainly used in oil drilling mud process, coal mine and various ore dressing and other industrial sifting screening. The screen panels can be designed with multi-layer or single layer flat panels, with or without backing plate support.

Wedge wire filter elements for oil field equipment & spares
Service conditions:
Fluid: Oil emulsion( consists of 40% saline water and 60% crude oil )
Viscosity @ oper. Temp. = 3160 cps Density @ Oper. Temp. = 961 kg/m3 Flow
Rate = 354.16 m3/h Working temperature= ( min./ Nor. / Max. ) = 25/35/50
Deg.C Pressure drop across clean filter < 5 Kpa Max. allowable pressure drop
= 50 Kpa Slot size= 0.23 mm Selected :

Elements
Radial slot opening
Slot size = 0.23 mm
Wire width = 0.75 or 1.0 mm
Outside diameter = 30 mm
Length= 1000 mm
Max. Delta P 4.2 Bard
AISI 316L
Condition -clean pressure drop < 5 kpa

Shale Shaker Screen for Oil Drilling

DescriptionP/N
Mesh 25 Or Equal01-03-25
Mesh 39 Or Equal01-03-39
Mesh 48 Or Equal01-03-48
Mesh 86 Or Equal01-03-86
Mesh 97 Or Equal01-03-97
Mesh 118 Or Equal01-03-118
Crown Rubber01-05
Deck Spring (rear)01-07

Shale shakers for Oil & Gas, Petrochemical
Shale Shaker Model-FLCC-514
Screen Pattern- Multi layer wave
Mesh Sizes: 40x40,60x60,80x80,100x100,120x120

Oil vibrating shale shaker screen


Oil drilling filter vibrating flat shale shaker screen for solid seperation

Stainless Steel Screen Mesh
