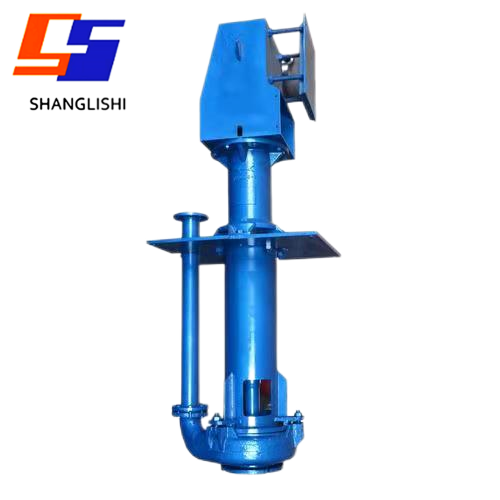

SSP(R) Sump Pump/Vertical Slurry Pump
The SSP(R)submerged pump is a vertical centrifugal slurry pump.It is submerged in liquid and is used for transporting abrasive,coarse-grained,highly concentrated slurries.It does not require any shaft seal or shaft seal water and can operate under inadequate suction conditions.
Product Description
SSP(R) Sump Pump/Vertical Slurry Pump
Product Specification
Inlet/Outlet diameter: 40-300mm
Capacity: 17-1200m³/h
Head: 4-40m
Speed: 720,990,1480 and 2960r/min
Power: 15-200kw
Materials: High chromium alloy, Rubber.
SIZE: 40 • 65 • 100 • 150 • 200 • 250 • 300
Product Description
★ The SSP(R)submerged pump is a vertical centrifugal slurry pump.It is submerged in liquid and is used for transporting abrasive,coarse-grained,highly concentrated slurries.It does not require any shaft seal or shaft seal water and can operate under inadequate suction conditions.
★ The SSP pump is made of wear-resistant metal.
★ The SSPR pumps have a rubber lining for the submerged parts and are suitable for transporting abrasive slurries without angles.
★ The models with the letter "L"in them are submersible pumps with extended shafts, which are suitable for deeper liquid conditions.This pump is based on the standard pump with the addition of a guide bearing structure.This makes the operation smoother and more suitable for a wide range of applications.However,flushing water is required in the guide bearing area.
Product Feature
1.Single casing structure with the advantages of light weight, small volume, easy installation;
2.Anti-abrasive wet parts made of high-chrome alloys;
3.Transmission shaft and suction pipe could be chosen according to liquid surface of the slurry pool;
4.Slurry pump agitator could be installed to improve transfer efficiency;
5.Able to run smoothly under various speeds.
6.SSP type submerged pumps are all metal parts and are used for transporting abrasive slurry.
7.SSPR submerged pumps are rubber-protected and are used for transporting acidic abrasive slurry.
