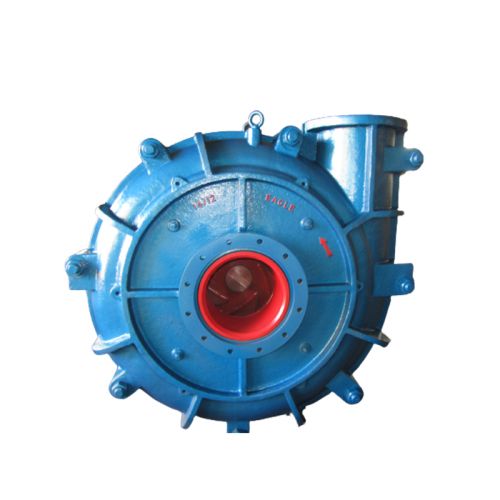

16X14G-TG Gravel Pump
16-14 G-TG Gravel Pump TG Series dredge Gravel Pump are designed to handle very large particles for gravel and dredging operations. This sand pumps are designed for continuous handling of the most difficult higher abrasive slurry, containing solids too large to be pumped by a standard slurry pump.
Product Description
16X14G-TG Gravel Pump
TG Series dredge Gravel Pump are designed to handle very large particles for gravel and dredging operations. This sand pumps are designed for continuous handling of the most difficult higher abrasive slurry, containing solids too large to be pumped by a standard slurry pump.
PRODUCT DESCRIPTION
16-14 G-TG Gravel Pump is suitable for delivering slurry in mining, explosive sludge in metal melting, grudging in dredger and course of river and other fields.
16-14 G-TG Gravel Pump performance parameters
|
Model |
16-14G-TG Gravel pump |
|
Position of Pump Shaft |
Horizontal pump |
|
Pump type |
Centrifugal |
|
Color |
Any color |
|
Certificate |
ISO, SGS |
|
HS Code of pump |
8413709990 |
|
Capacity(Flow) |
650~3610m³/h |
|
Head |
9-48m |
|
Number of Revolutions |
250-500RPM |
|
Drvie Type |
ZVz/CRz/CV/DC |
TG Gravel pump structure
TG series gravel pump are designed for continous pumping of highly abrasive slurrry that containing large particles which other series pumps can not handle. The large volum inside casing make it the best choice for gravel, dredging and other applications where large particles needed to be handled. Low NPSH requirement and robust design inquires long life under sever duties.
