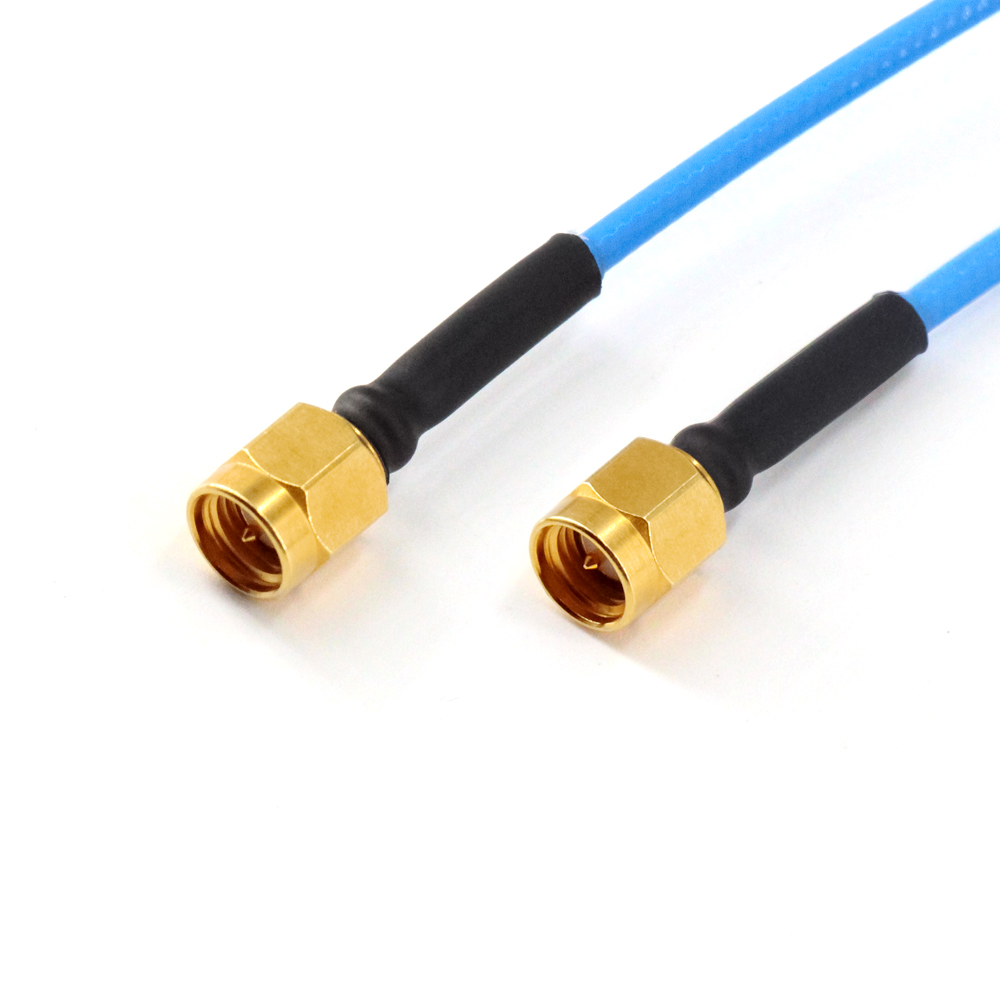

SMAJ-SMAJ 6G CLC260 Flex Interconnect Cable Assembly

XINQY RF cable assembly offers superior field-proven performance characteristics with low insertion loss and excellent VSWR in the market, less affected by noise or cross-talk or electromagnetic inference. Flexible RF cables are widely used in applications that require high-quality, low-loss signal transmission. Custom RF cables are provided to meet specific application requirements, including unique connector, length and shielding specifications.

The RF flexible cable assembly has high flexibility and maintain stable electrical characteristics during bending and movement. This cable assembly offers a good compromise between a small diameter and a capacitance of 50 to 100 pF/m. With frequencies up to 67GHz, coaxial cables have better cut-through resistance so they are more reliable and durable. This cable assembly is a cost-effective cable assembly provided  excellent electrical and mechanical properties. It's widely used in communication, navigation, radar, aerospace, testing and measurement fields.

1. Telecommunications industry: 50Ω DC-6GHz coaxial cable assemblies are used in mobile and fixed networks for signal transmission and testing. These cables are also suitable for RF testing applications, such as test and measurement equipment, antenna testing and electromagnetic compatibility (EMC) testing.

2. Medical industry: These 50Ω DC-6GHz RF flexible cable assemblies are used in medical devices, such as ultrasound machines, transmitting low attenuation and minimal interference in high-frequency signals. The flexibility and durability of solid PTFE flexible cable assemblies make them ideal for use in medical devices that require frequent movement and bending.

3. Aerospace and defense industries: Flexible cable assemblies are used in radar systems and satellite communications that require high-performance signal transmission over long distances. The superior shielding and low insertion loss of 50Ω DC-6GHz RF flexible cable assemblies are perfect for these demanding applications.

As a professional RF cable assembly supplier, XINQY provide consumers with high performance RF flexible cable assembly at competitive prices. For any enquiries or customization, please contact us at hansen.hou@xqy-tech.com and we will reply as soon as possible.

SMAJ-SMAJ 6G CLC260 Flexible Interconnect Cable Assembly

Solid PTFE flexible cable assemblies are highly durable and reliable, making them well-suited for applications that require repeated flexing and bending. The silver-plated copper clad steel center conductor offers low attenuation and high signal integrity, making it ideal for high-frequency applications.

Features                                                          Applications

•  Flexible Interconnect Cable Assembly                                          •  Land Mobile Radio & Other

•  SS405/TFlex-405 Equivalent Coax                                                    •  General Purpose

•  Max Frequency 6 GHz                                                                       •  Communication Systems

•  Shielding Effectivity > 90 dB                                                               •  Laboratory Use

•  70% Phase Velocity                                                                            •  Antenna Installations

•  Low Insertion Loss                                                                              •  Cellular & Wi-Fi Systems

•  One Time Bend Radius of 0.512 Inches
