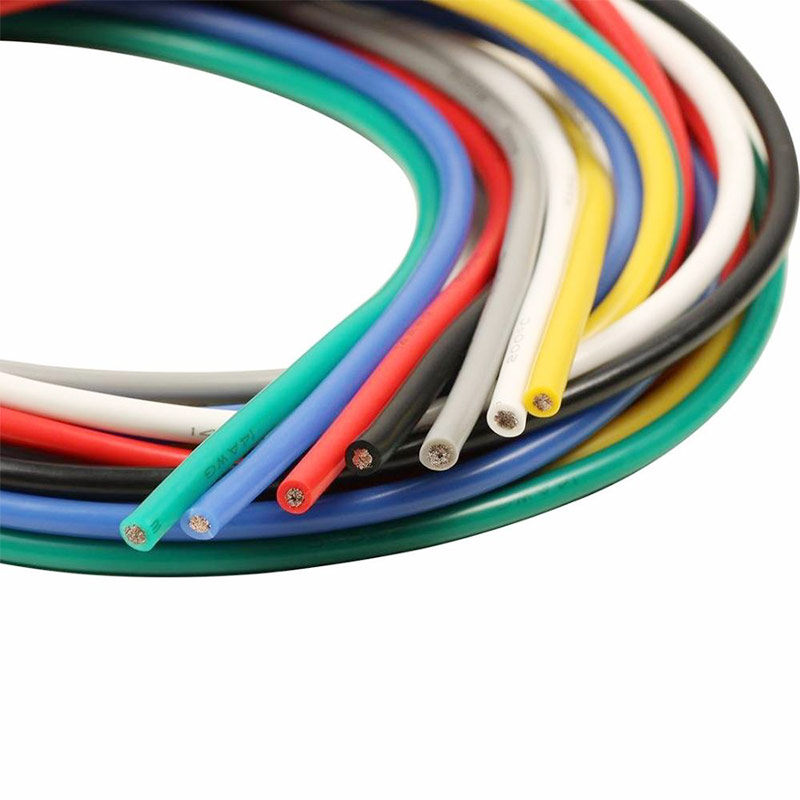

FLRY-A FLRY-B Electric Cable Automotive Copper Wire 1.5mm Price Per Meter
Electric Cable Automotive Copper Wire
Product Description
Application
Automotive PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for motorcycles and other motor vehicles for starting, charging, lighting, signal and instrument panel circuits. Flame retardant. Highly resistant against acids, Petrol and diesel. Flexible conductors with thin wall insulation.
Construction
Conductor:
Flexible copper conductor, plain or tinned (concentric lay)
Insulation:
PVC(Polyvinyl Chloride) (thin wall)
Standard Compliance:
ISO 6722 Class B
Technical Parameters:
Operating temperature:-40℃ to 105℃
Sheath Colour:
Black Blue Orange Red White
Other colors available upon request
Specifications
FLRY-A
|
Nominal cross section area |
Number of wires and wire diameter |
Max. DC resistance at 20°C |
Copper Weight |
Conductor Diameter |
Insulation thickness(Min.) |
Minimum Diameter |
Weight(Approx.) |
|
mm2 |
N/mm |
Ω/km |
kg/km |
mm |
mm |
mm |
kg/km |
|
0.35 |
7/0.26 |
52 |
3.4 |
0.8 |
0.2 |
1.3 |
4.5 |
|
0.5 |
19/0.19 |
37.1 |
4.8 |
1 |
0.22 |
1.6 |
6.6 |
|
0.75 |
19/0.23 |
24.7 |
7.2 |
1.2 |
0.24 |
1.9 |
9 |
|
1 |
19/0.26 |
18.5 |
9.6 |
1.35 |
0.24 |
2.1 |
11 |
|
1.5 |
19/0.32 |
12.7 |
14.4 |
1.7 |
0.24 |
2.4 |
16 |
|
2.5 |
19/0.41 |
7.6 |
24 |
2.2 |
0.28 |
3 |
26 |
