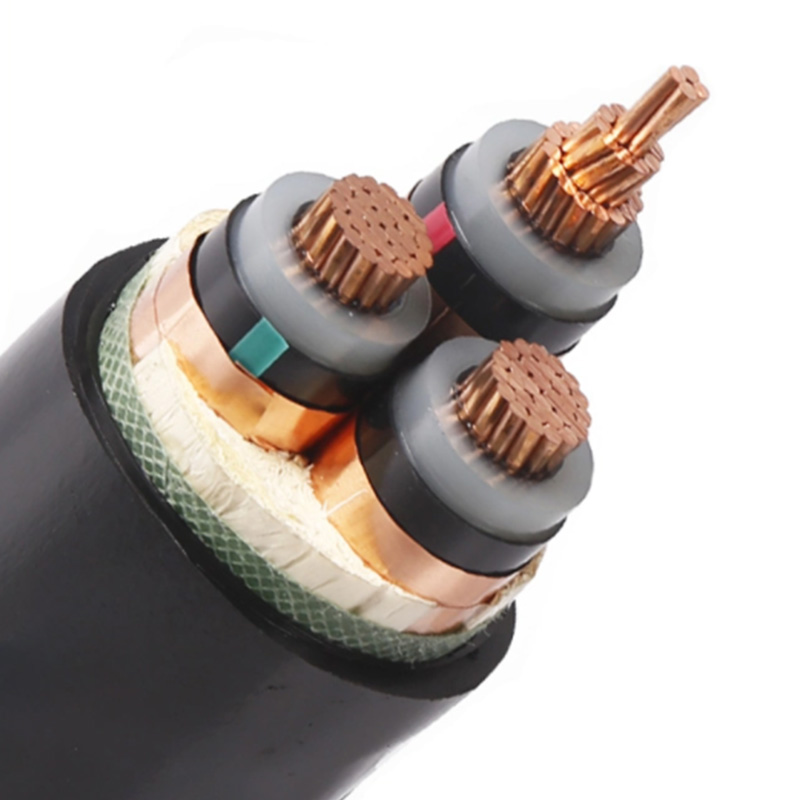

8.7/15kV Unarmored Copper Power Cable

Application

The Unarmored Copper Power Cable are mainly used for power distribution in power stations, industrial installation. For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Medium Voltage Cables Characteristics

Rated voltage: 8.7 / 15 kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius:

20 x cable O.D for single core

15 x cable O.D for multi core
