Diamone Metal Lath 27” x 96”
Diamone Metal Lath 27” x 96”
Product Description

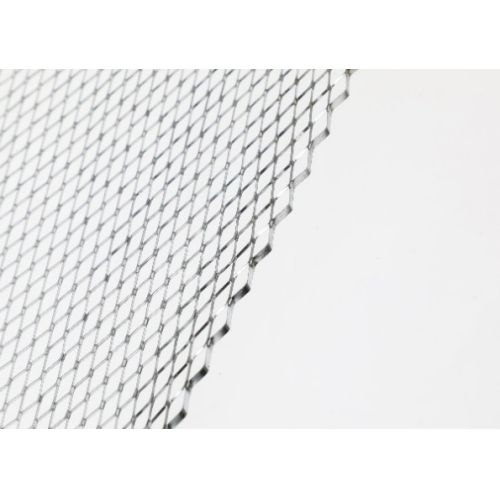

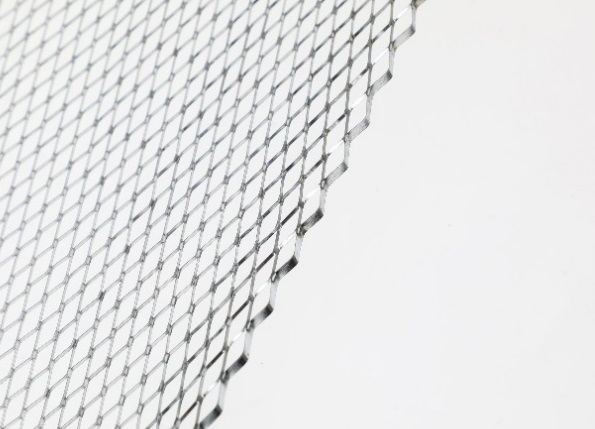

Diamond Metal Lath 27" x 96" is an exceptional construction material, meticulously crafted from light type galvanized steel, diamond hole expanded metal, and expanded stainless steel. This self-furring lath is engineered for a multitude of applications in both internal and external wall constructions. Its innovative design features dimples or "V" grooves that elevate the lath a quarter of an inch from the wall, allowing plaster to embed securely between the lath and the wall surface.
Stucco diamond mesh features
• Self-Furring Technology: The lath's self-furring mechanism ensures a 1/4 inch gap for plaster embedment, enhancing adhesion and stability.
• Flexible and Adaptable: The diamond mesh structure can be easily shaped to fit curved surfaces, making it suitable for a variety of architectural designs.
• Aesthetic Appeal: The lightweight metal lath sheet not only provides structural benefits but also improves the visual appeal of plaster or render finishes.
• Customizable: Available in standard sizes and can be tailored to specific project requirements with custom cuts and shapes.
• Fire Protection Capabilities: Functions as a carrier for fire protection on structural steelwork, offering an additional safety measure.
* G60 and G90 can be used for 2.5lb or 3.4lb
* Special specifications can support customization.
| CODE | Wt./Sq.Yd.(lbs) | Sheet Size | Standard Thickness | Pcs./Bundle | Pcs./Pallet |
| DML1.75 | 1.75 LBS | 27” x 96” | 0.35mm | 10 | 500 |
| DML2.5 | 2.5 LBS | 27” x 96” | 0.5mm | 10 | 500 |
| DML3.4 | 3.4 LBS | 27” x 96” | 0.638mm | 10 | 250 |
