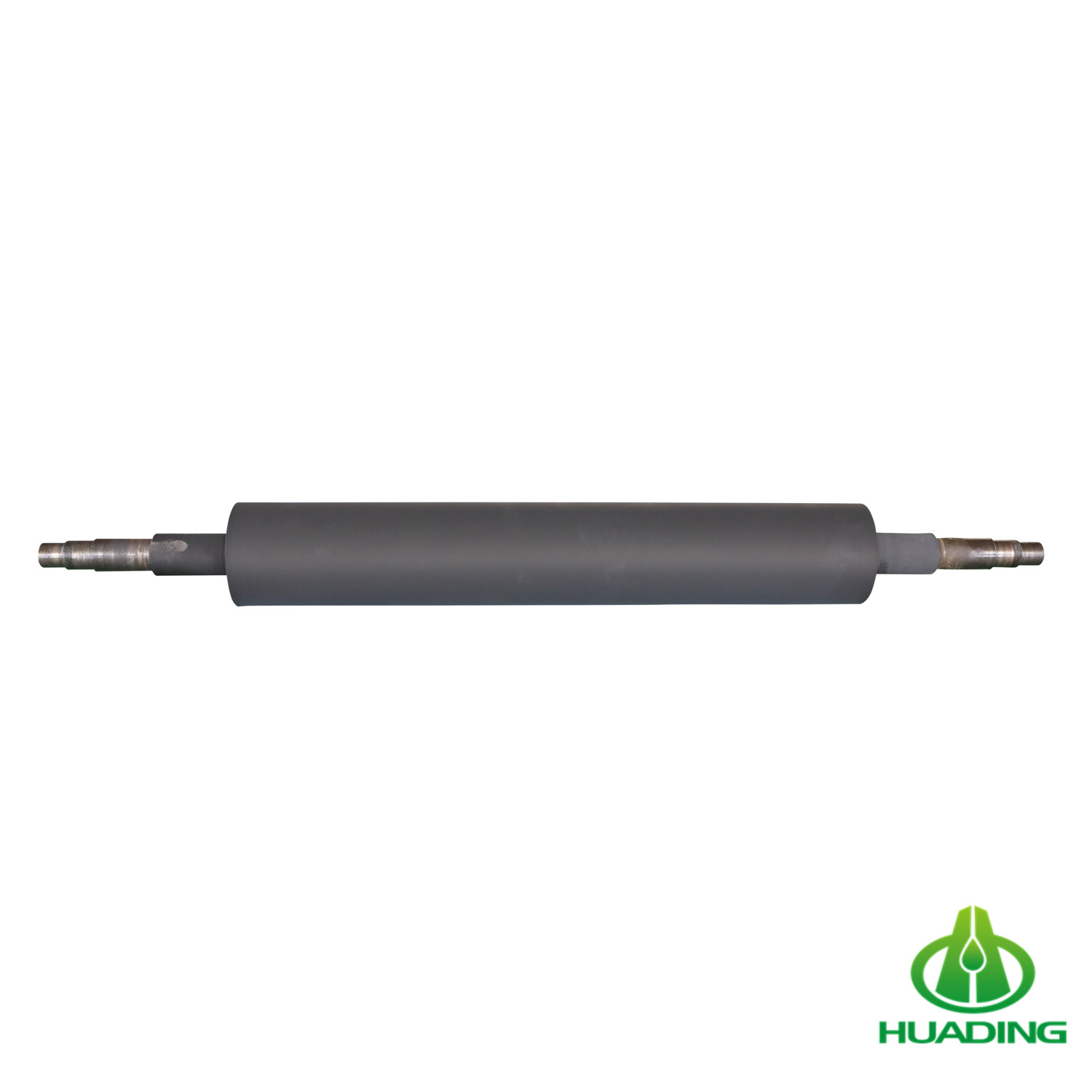

Heat Resistant Furnace Roll
Heat Resistant Furnace Roll
Product Description
The furnace roll is one of the most important parts of a continuous annealing furnace, and its working condition is the decisive factor in whether the annealing furnace can carry out normal production. The furnace roll table of a continuous annealing furnace is the mechanical equipment that makes the furnace charge pass through the furnace, and it conveys the furnace charge to complete the annealing process operation, so as to realize the mechanization of production operation and the continuity of the process flow.
Uni Abex is well known for manufacturing furnace rollers. These Furnaces are equipped with rollers for transportation of plates, bars etc. Call us today!
Furnace Roll Parameter
| Product name | Furnace roll |
| Material | The high nickel and high chrome heat resistant alloys, cobalt base alloys, like HU, HT, HK, HP, HW, 24/24NbTiZr, 50Cr/50Ni (2.4813), 1.4865, 1.4849, 1.4848, 1.4410, 1.4059, 1.4841, 1.4845, 1.4852, 2.4879 or as per customer's requirements |
| Application | Working in a high-temperature environment on average: 800 to 1200°C, used in steel mills like continuous annealing furnace, heating treatment furnace, etc. |
| Process | The barrel/tube is made by centrifugal casting and will be machined subsequently. Shaft/journal will be made by forged, welded, and machined according to relevant drawings. |
| Standard | ANSI, ASTM, ASME, DIN, GB |
| Specification | According to drawings |
| Certificate | ISO9001 |
Performance:
1. The quality of furnace bottom roller of silicon steel continuous annealing furnace is one of the main factors affecting the operation rate and product surface quality. The traditional graphite carbon sleeve and ceramic coating roll are prone to roll surface oxidation, furnace roll nodulation, looseness, and spalling, which affect the normal production.
2. Quartz ceramic hollow roller has the characteristics of high strength, high-temperature resistance, small thermal expansion, good chemical stability, stable high-temperature performance, no deformation, smooth and fine surface, and good wear resistance. It is an ideal substitute for traditional graphite carbon sleeves and ceramic coated rollers. It can effectively solve the problems of oxidation and nodulation, avoid frequent replacement, improve operation efficiency and significantly improve the surface quality of steel strips.
3. The long-term use is not easy to wear, which is 3-5 times the service life of the carbon sleeve, and the used old roller can be reused after reprocessing, which greatly prolongs the service life and reduces the production cost.
4. The service temperature is up to 1100 ℃, especially suitable for continuous annealing furnaces of high-grade silicon steel.
5. It can provide the design process parameters of furnace bottom roll with the reasonable structure for the design and use units, and ensure the assembly quality and use of the effect of furnace bottom roller.
