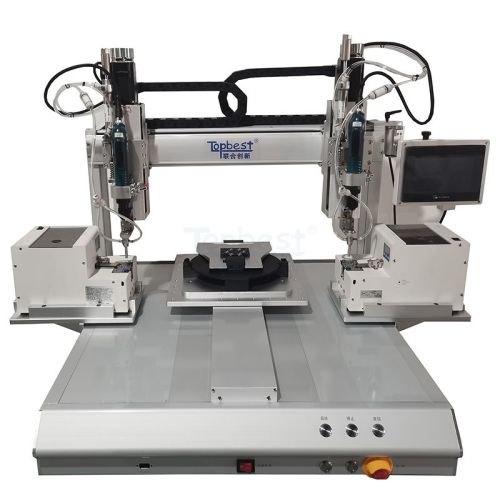

Screwing Robot TBS-SX2-6331S
Screwing Robot
Product Description
|
No |
Name |
Specification |
Brand |
|
1 |
Rack |
6061 Aluminum profiles |
Topbest |
|
2 |
Linear guide |
HIWIN EGH15CA1U550ZOH |
Taiwan HIWIN |
|
3 |
Ball spline |
TBI SLF16T2NNS-280-PO |
Taiwan TBI |
|
4 |
Ball screw |
PMI 2R16-10S2-FSIN-150-210-0.05 |
Taiwan PMI |
|
5 |
Synchronous gear |
3M60 |
Japan MITSUBOSHI |
|
6 |
Synchronous belt |
XL |
Japan MITSUBOSHI |
|
7 |
Programming controller |
TV6800DJ-B03/SY641 |
HK/SY |
|
8 |
Screwdriver |
According to screw |
Brush KILEWS |
|
9 |
Feeder |
According to screw |
TBS |
|
10 |
Stepping motor |
STP-59D3074-02 |
Japan Shinon |
|
11 |
Closed-loop Step driver |
DM442 |
RCON |
|
12 |
Meanwell switching power |
NES-350-24 |
Taiwan Meanwell |
|
13 |
Optoelectronic switch |
OMRON EE-SX674 |
Japan OMRON |
|
14 |
Electromagnetic valve(24V) |
SMC SY3120-5LZD-M5 |
Japan SMC |
|
15 |
Air filter relief-pressure valve |
STNC TW1000-M5 |
STNC |
|
16 |
Stainless steel button switch |
ONPOW 19 hole boss |
ONPOW |
Screwing Robot Advantages
● Reduce cost:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency
● High efficiency:the number of electric screwdriver of the Z axis is customizable according to customers' requirements. Several electric screwdrivers can work at the same time.
● More relax: single equipment for single worker, Just finished loading,Reduce the labor intensity of workers.
● Reliability:Automatic alarm system, working >20 hours
● Good image:Iintelligent automatic equipment presents a new appearance of production line in factories,which helps enterprises establish a image of high technology
● Customization:screwing Robot can be customized based on customers' requirements on products assembly.
