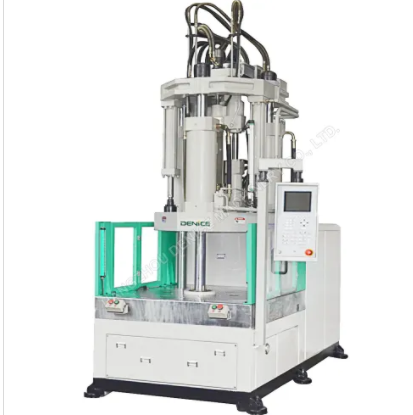

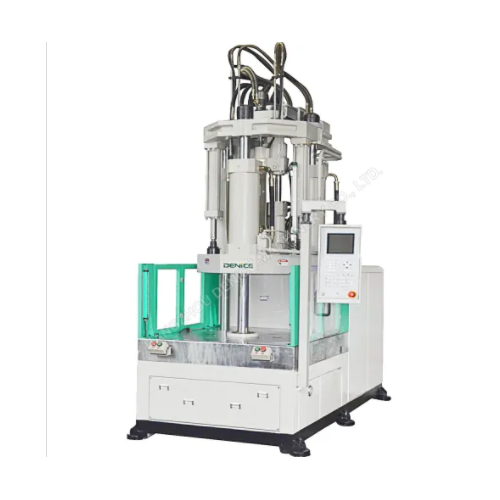

low pressure injection molding machine DVU-850.2R

In today's rapidly evolving manufacturing industry, businesses are constantly seeking innovative solutions to optimize their production processes.

Product Description

Low Pressure Injection Molding Machines: Enhancing Efficiency and Precision in Manufacturing

Introduction

In today's rapidly evolving manufacturing industry, businesses are constantly seeking innovative solutions to optimize their production processes. One such cutting-edge technology that has gained significant popularity is low pressure injection molding machines. These machines revolutionize the manufacturing landscape by offering enhanced efficiency, improved precision, and a range of other benefits. In this article, we delve into the world of low pressure injection molding machines, exploring their functionalities, advantages, and how they can transform your manufacturing operations.



Product Description

DVU-850.2R

effectively reduces the height of the working table and the whole height of the vertical injection molding machine, facilitates the operation of staff, the replacement of convenient molds, and improves production efficiency and saves space.

 Specification

   Model   Unit DVU-850
Injection   Unit Screw diameter mm Ф36 Ф42 Ф48
Maximum injection  pressure Kg/cm2 2074 1523 1166
Theoretical shot volume cm3 162 221 289
Maximum shot weight(PS) g/Oz 150(5.3) 203(7.1) 266(9.4)
Injection rate cm3/sec 97 132 172
Clamping        Unit Clamping force  ton 85
Mold Size mm 510× 360
Minimum mold thickness  mm 200
Opening stroke  mm 270
Open daylight  mm 470
Ejector force  T 2.7
Ejector stroke  mm 65
Others Pump motor power  Kw 15
Hydraulic system pressure Kg/cm2 140
Barrel heating power  Kw 7
Total wattage  Kw 22
Oiltank   capacity L 400
Machine weight  (approx.)     T 3.5
Machine dimensions(approx.)  2.0×1.3× 2.8



Understanding Low Pressure Injection Molding Machines

Low pressure injection molding machines, also known as LPIM machines, are advanced manufacturing tools designed to produce high-quality plastic parts with exceptional precision. These machines utilize a unique injection molding process that involves injecting molten plastic into a mold at significantly lower pressures compared to traditional injection molding techniques. The key differentiating factor lies in the use of nitrogen gas or a combination of gas and liquid in the injection process, resulting in numerous benefits for manufacturers.



The Advantages of Low Pressure Injection Molding Machines

1. Enhanced Efficiency

Low pressure injection molding machines offer remarkable efficiency improvements over conventional molding methods. By utilizing lower pressures, these machines reduce energy consumption and minimize material waste, resulting in cost savings for manufacturers. Moreover, the optimized injection process allows for faster cycle times, enabling higher production rates and increased throughput.

2. Improved Product Quality

The precision and control offered by low pressure injection molding machines contribute to superior product quality. The low-pressure environment ensures uniform filling of the mold, reducing the likelihood of defects such as voids, sink marks, or warpage. Additionally, the ability to adjust process parameters with precision enables manufacturers to achieve consistent part dimensions, leading to higher quality standards and reduced rejection rates.

3. Versatility in Materials

Low pressure injection molding machines are compatible with a wide range of materials, offering manufacturers versatility in their production processes. From commodity plastics to high-performance polymers, these machines can effectively process various materials, catering to diverse industry needs. This versatility allows businesses to explore new design possibilities and expand their product portfolios.

4. Cost-Effectiveness

By optimizing material usage and reducing energy consumption, low pressure injection molding machines prove to be cost-effective solutions for manufacturers. The ability to achieve high-quality parts consistently minimizes the need for rework or post-processing, saving both time and resources. Furthermore, the enhanced production efficiency enables businesses to meet market demands promptly, leading to increased customer satisfaction and potentially greater market share.



Implementing Low Pressure Injection Molding Machines in Your Manufacturing Process

Integrating low pressure injection molding machines into your manufacturing process requires careful consideration and strategic planning. Here are some key steps to ensure a successful implementation:

1. Assessing Application Requirements

Begin by evaluating your specific application requirements and identifying the potential benefits of utilizing low pressure injection molding machines. Consider factors such as part complexity, material selection, production volume, and desired quality standards. This assessment will help you determine whether low pressure injection molding is a suitable solution for your manufacturing needs.

2. Selecting the Right Machine

Once you have determined the feasibility of low pressure injection molding, it is crucial to select the right machine for your operations. Consider factors such as machine size, tonnage capacity, clamping force, and injection volume. Collaborate with reputable manufacturers or suppliers who can guide you in choosing a machine that aligns with your production goals.

3. Operator Training and Process Optimization

To maximize the benefits of low pressure injection molding machines, ensure that your operators receive comprehensive training on machine operation, maintenance, and troubleshooting. Additionally, invest time in optimizing process parameters to achieve the desired part quality and production efficiency. Continuous monitoring and process refinement will enable you to fine-tune your operations and further enhance your manufacturing capabilities.



Choose DENICE for Unmatched Manufacturing Solutions

When it comes to low pressure injection molding machines, DENICE Machinery Co., Ltd. stands at the forefront of the industry. Our commitment to excellence, extensive product range, and customer-centric approach set us apart as a trusted partner for manufacturers worldwide. By choosing DENICE, you gain access to:

1. High-quality machines that deliver exceptional precision and efficiency.

2. Versatile clamping force and injection volume options to meet your specific requirements.

3. Specialized machine series designed for industry-specific characteristics.

4. Cutting-edge technology for enhanced performance and productivity.

5. Dedicated customer support and comprehensive after-sales services.

Elevate your manufacturing capabilities with DENICE Low Pressure Injection Molding Machines and experience the transformation they bring to your production processes. Contact us today to explore the possibilities of taking your business to new heights.



Remember, staying up-to-date with emerging technologies and adopting innovative solutions is essential for businesses aiming to thrive in the ever-evolving manufacturing industry. Embrace the power of low pressure injection molding machines, and witness the transformative impact they can have on your production capabilities.
