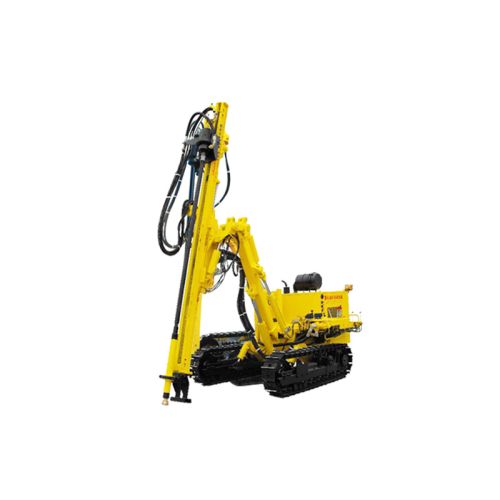

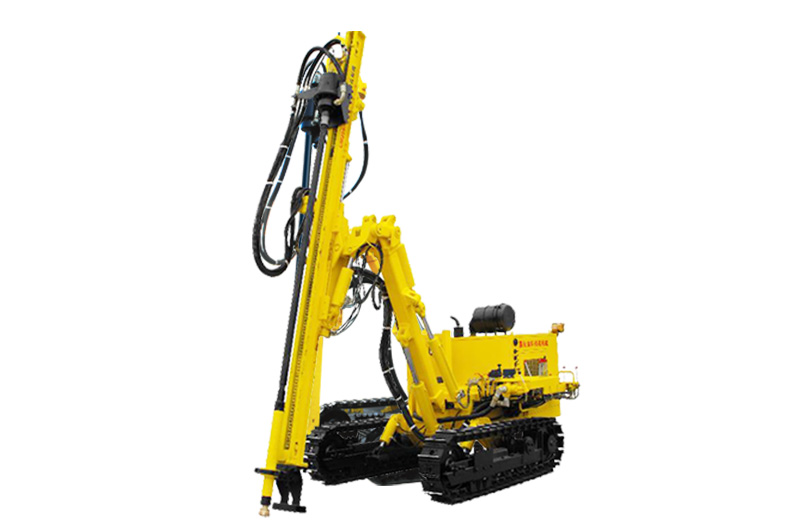

CM358A Crawler Mounted Hydraulic DTH Drilling Rig
CM358A Crawler Mounted Hydraulic DTH Drilling Rig
Product Description
CM358A crawler mounted hydraulic DTH drilling rig adopts diesel engine (or electric motor) and hydraulic oil pump assembly to provide power, allowing rigs to finish moving, rotating, feeding and lifting, as well as angle positioning.
During operation only the percussive DTH rigs consumes compressed air and in contrast to the conventional pneumatic rigs, CM358A saves about 40%~50% of total energy.
| Model | CM358A |
| Borehole diameter | 90-165mm |
| Borehole depth | 50m |
| Applicable rock hardness | f=6-20 |
| Working air pressure | 1.2-2.4MPa |
| Air consumption | 11-21m³/min |
| Feeding stroke | 3820mm |
| Rod-changing length | 3m |
| Max. horizontal drilling height | 3370mm |
| Rotation rate | 0-80rpm |
| Rotation torque | 3000Nm |
| Travel speed | 2Km/h |
| Grade ability | 24° |
| Power | Yuchai 70KW/Cummins 74KW |
| Electric motor 45KW | |
| Dust collector (optional) | Hydraulic dry dust collector |
| Wet dust collector | |
| Dimension (LxWxH) | 6900mm × 2200mm × 2200mm |
| Weight | 6100kg |
