Wire thread insert
Product Description
Payments：L/C, T/T
Delivery：-
Origin：China
Packing：-
Inspection：-
Wire thread insert

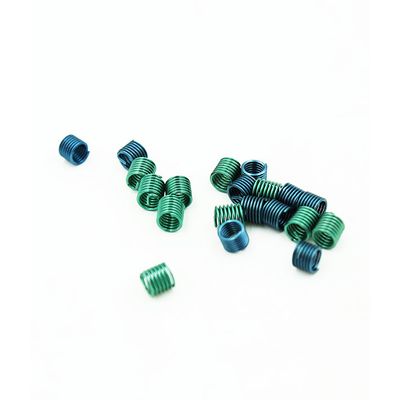

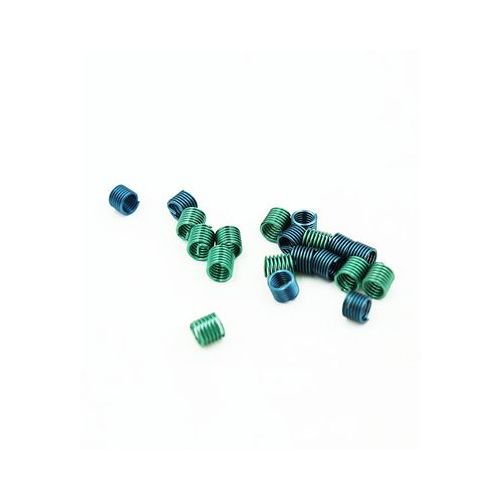

Stainless steel GSR thread inserts guarantee a very good corrosion and heat resistance. The cross section is rhombic. The wire is coiled into an elastic spring. There is a tappet at the lower end. While screwing in the thread insert, the spring is slightly tensed and holds the insert in the internal thread.
Technical Data:
Standard DIN8140
Material 304 Stainless Steel
Tolerance ISO2(6H)
Length 1.0d;1.5d;2.0d;2.5d;3.0d
Surface Treatment:
Dry Film Lubricant(Mollylube)
Providing additional lubrication in high friction applications
High temperature resistance
Mildly corrosion resistant
Cadmium Plating
High corrosion resistant
Preventing galling during installing
Nickel Plating
High corrosion resistant
Preventing galling during installing
Silver Plating
Reducing galling of threads at high temperature
Colored
Free Running
