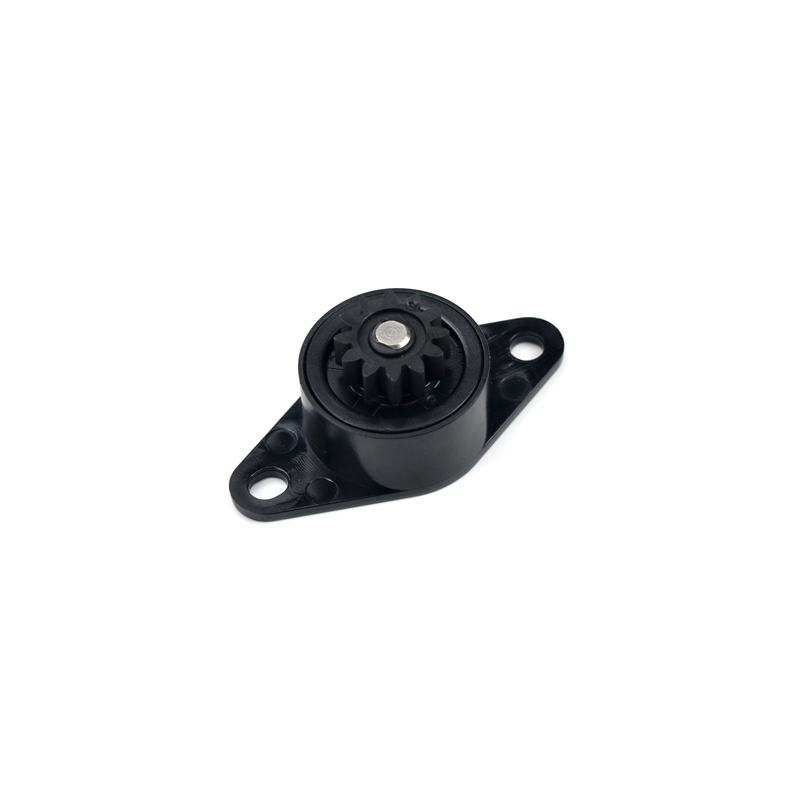

Gear/Rotary Damper RD-T068/V068
Gear dampers are one of Teao core products, renowned for their precision engineering and outstanding performance. We can offer customized versions in any desired torque within the standard range.
Product Description
Characteristics
SOC Free, Screw, two-way, One-way,No angle limit
Component Parts
Less honorary seat: PC
Upper cover: PC
Rotor: POM
Gear: POM
O-RING: VMQ
Oil: silicone oil
Durability
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30,000 times
Technical Specifications
| Type | 12 | / | / | / |
| Number of teeth | 12 | / | / | / |
| Tooth width | ||||
| Product height | 19 | |||
| Module | 1.05 | / | / | / |
| Pitch circle diameter | Φ14.7 | |||
| Pressure angle | 20° | / | / | / |
| Material | POM | / | / | / |
Gear dampers are one of Teao core products, renowned for their precision engineering and outstanding performance. We can offer customized versions in any desired torque within the standard range.
Operating on the principle of a precisely designed gear system combined with damping oil, gear dampers control the opening and closing speed of objects, ensuring smooth, noise-free movements.
How Gear dampers are used
They find widespread applications in automotive interiors, home appliances, industrial machinery, and more, enhancing products with exceptional opening and deceleration functions.
Discover Teao's innovative soft motion solutions tailored for the automotive industry, including rotary and axial dampers, designed to
enhance comfort and performance in automotive applications.
