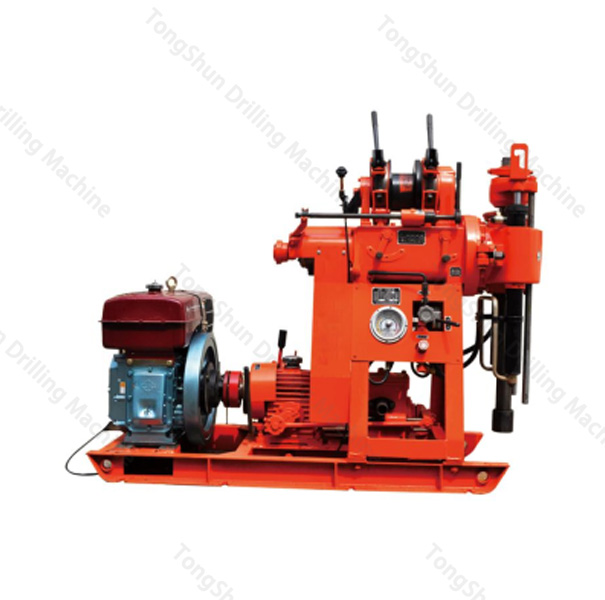

The XY-1 water well drilling rig is designed as a high-precision tool for small-scale water well drilling tasks
Product Description
The XY-1 water well drilling rig is designed as a high-precision tool for small-scale water well drilling tasks
Key Advantages
Accurate Drilling Capability: Covering drilling depths of up to 180m and diameters ranging from 75mm to 110mm, it offers high-precision drilling.
User-Friendly Operation: Equipped with an easy-to-use interface suitable for operators of varying experience levels, enhancing overall work efficiency.
Cost-Efficiency: Besides its high performance, the XY-1 is also cost-effective, offering economic viability.
Geological Core Drilling Rig Application Scope
Small-Scale Water Well Drilling: Ideal for household, agricultural, and light engineering projects.
Geological Surveys: Conducting measurements and surveys of underground geological structures.
SPECIFICATION
Item | Spec | Unit | Prameter |
Drilling Machine |
Drill rod diameter |
mm |
42 |
Initial hole diameter |
m |
75 |
|
Final hole diamete |
mm |
110 |
|
Angle range |
75-90 |
||
Dimensions(L*W*H) |
mm |
1640*1030*1440 |
|
Stroke XY-1(JY) |
mm | 350 | |
Weight(without power unit) |
kg | 500 | |
Swivel Head |
Spindle speed (3 speed) |
r/min |
142,285,570 |
Spindle stroke |
mm |
450 |
|
Upward displacement speed of drilling vertical spindle |
m/s |
0.05 |
|
Downward displacement speed of drilling vertical spindle |
m/s |
0.067 | |
Spindle pull-down max |
kN |
15 |
|
Spindle lifting capacity max |
kN | 25 | |
Max lifting capacity (single rope) | kN | 10 | |
Cable volume (number) of hoisting drum |
m | 27 | |
Wire rope diameter |
mm | 9.3 | |
Water Pump |
Model |
Horizontal reciprocatingsingle-acting piston |
|
Equipped with diesel engine |
L/min |
95 |
|
Equipped with motor |
L/min |
77 |
|
Allowable working pressure max |
MPa |
1.2 |
|
Continuous working pressure |
MPa | 0.7 | |
Suction pipe diameter |
mm | 32 | |
Discharge pipe diameter |
mm | 25 | |
Oil Pump |
Model |
YBC-12/125 |
|
Rated pressure |
MPa |
12.5 |
|
Displacement |
ml/r |
12 |
|
Rated speed |
r/min |
800-2500 |
|
Power (diesel engine or Motor) |
Model (diesel engine) |
ZS1105 |
|
Rated power |
kW |
12.1 |
|
Rated speed |
r/min |
2200 |
|
Model (motor) |
mm |
Y132M-4 |
|
Rated power |
kW |
7.5 |
|
Rated speed |
r/min |
1440 |
After-sales Service
Comprehensive technical support and top-quality after-sales service are provided to ensure the efficient completion of drilling tasks.
Conclusion
The XY-1 water well drilling rig is a precise, efficient, and stable choice for small-scale projects. Contact us to learn more about how this product meets your needs.
