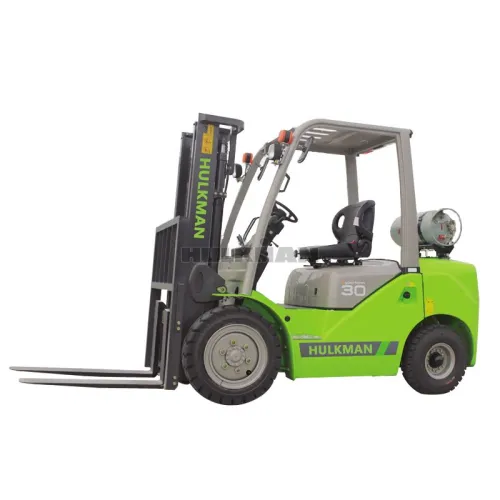

3 Ton LPG Forklift
Fuel efficient, low emission, and high power, the HULKMAN forklift cuts your 3ton LPG forklift use-cost efficiently and is friendly to the operator and the environment. The reliable IMPCO LPG forklift system helps reduce forklift maintenance costs. Converting your 3T forklift to LPG offers all the power and performance of petrol without the high fuel cost.
Product Description
3 Ton LPG Forklift Product Description
Fork size: Standard 1070mm Length
Hydraulic System: Japan Shimadzu brand
LED Warning Light
Cylinders Dust Rubber Cover
Wide View Rear Mirror
Lights Protection Steel Structure
Water Proof Overhead Guard
OEM Brand Service
Fuel efficient, low emission, and high power, the HULKMAN forklift cuts your 3ton LPG forklift use-cost efficiently and is friendly to the operator and the environment. The reliable IMPCO LPG forklift system helps reduce forklift maintenance costs. Converting your 3T forklift to LPG offers all the power and performance of petrol without the high fuel cost. What’s more, the engine hood with large opening angle makes maintenance easier for servicemen.
Newly designed stamping overhead guards protect the 3T HULKMAN gas forklift’s operator from falling cargo.
HULKMAN 3ton gas forklift’s Lifting cylinders with speed limit valve prevent falling accidents caused by unexpected hydraulic pressure relief from happening. With superior quality and exceptional value, the HULKMAN LPG forklift thinks what you want. Adopting TCM technology, durable and reliable automatic transmission prolongs HULKMAN forklift’s lifetime.
Forklift Optional Choices
HULKMAN Forklift Optional Configurations: fan, cab, heater, muffler, solid tire, double filters, windscreen, warning light, high exhaust, luxury seat, fire extinguishing muffler, two/three full free mast, colored tires (white/green), customer appointed color, Yanmar or Isuzu engine.
HULKMAN Forklift Optional Attachments: side shift, fork positioner, tipping fork, string lever, hook, extended fork, crane boom, roll clamp, bucket, bale clamp.
Specification Parameters
|
Features |
|
FL30 |
|
Power |
/ |
Gas Gasoline |
|
Rated Capacity |
kg |
3000 |
|
Center of Load |
mm |
500 |
|
Standard Lifting Height |
mm |
3000 |
|
Free Lifting Height |
mm |
145 |
|
Fork Size LxWxH |
mm |
1070x125x45 |
|
Mast Tilting Angle Forward/Backward |
° |
6/12 |
|
Min. Turning Radius |
mm |
2410 |
|
Min. Ground Clearance (Mast) |
mm |
110 |
|
Overhead Guard Height |
mm |
2130 |
|
Height from Seat to Overhead Guard |
mm |
1000 |
|
Front Overhang |
mm |
483 |
|
Performance |
|
|
|
Max. Traveling Speed (Loaded) |
km/h |
20 |
|
Max. Lifting Speed (Loaded/Empty) |
mm/s |
470/520 |
|
Drawbar Pull / Gradeability |
kN/% |
18/20 |
|
Size |
|
|
|
Overall Length (with fork) |
mm |
2705 |
|
Overall Width |
mm |
1230 |
|
Mast Lowered Height |
mm |
2055 |
|
Mast Extended Height |
mm |
4256 |
|
Chassis |
|
|
|
Tire (Front) |
/ |
28x9-15-12PR |
|
Tire (Rear) |
/ |
6.50-10-10PR |
|
Wheelbase |
mm |
1700 |
|
Tread Width (Front/Rear) |
mm |
1000/970 |
|
Curb Weight (None-Load) |
kg |
4350 |
|
Engine |
|
|
|
Battery (Voltage/Capacity) |
V/Ah |
12/90 |
|
Engine Model |
/ |
Nissan K25 |
|
Engine Rated Power |
kw/r.p.m |
37.4/2300 |
|
Engine Rated Torque |
Nm/r.p.m |
176.5/1600 |
|
Engine Cylinder Amount |
/ |
44 |
|
Engine Bore x Stroke |
mm |
89x100 |
|
Engine Displacement |
L |
2.488 |
|
Fuel Tank |
L |
70 |
|
Transmission |
/ |
1/1 Powershift |
|
Working Pressure |
Mpa |
17.5 |
Customized Different Lifting Height Mast
Standard 2 Stage (Duplex) Wide View Mast
|
Lifting Height |
Loading Capacity |
Mast Lowered Height |
Mast Tilt Angle |
|
|
|
|
Fork Landing |
Height with Backrest |
F/R |
|
2000mm |
3000kg |
1555mm |
3260mm |
6/12° |
|
2500mm |
3000kg |
1805mm |
3760mm |
6/12° |
|
3000mm |
3000kg |
2055mm |
4260mm |
6/12° |
|
3300mm |
3000kg |
2205mm |
4560mm |
6/12° |
|
3500mm |
3000kg |
2305mm |
4760mm |
6/12° |
|
3700mm |
3000kg |
2405mm |
4960mm |
6/12° |
|
4000mm |
3000kg |
2605mm |
5260mm |
6/12° |
|
4500mm |
2600/*3000kg |
2855mm |
5760mm |
6/6° *6/12° |
|
5000mm |
2100/*2850kg |
3105mm |
6260mm |
6/6° |
|
5500mm |
*2400kg |
3405mm |
6760mm |
3/6° |
|
6000mm |
*2000kg |
3655mm |
7260mm |
3/6° |
Remark: * means double tires.
Optional 2 Stage (Duplex) Full Free Mast
|
Lifting Height |
Loading Capacity |
Mast Lowered Height |
Free Lifting Height |
Mast Tilt Angle |
|
|
|
|
Fork Landing |
Height with Backrest |
|
F/R |
|
2000mm |
3000kg |
1565mm |
3275mm |
337mm |
6/12° |
|
2500mm |
3000kg |
1815mm |
3775mm |
587mm |
6/12° |
|
3000mm |
3000kg |
2065mm |
4275mm |
837mm |
6/12° |
|
3300mm |
3000kg |
2215mm |
4575mm |
987mm |
6/12° |
|
3500mm |
3000kg |
2315mm |
4775mm |
1087mm |
6/12° |
|
3700mm |
3000kg |
2415mm |
4975mm |
1187mm |
6/12° |
|
4000mm |
3000kg |
2615mm |
5275mm |
1387mm |
6/12° |
Remark: * means double tires;
The max. lifting height without backrest -570mm;
The max. free lifting height without backrest +430mm.
Optional 3 Stage (Triplex) Full Free Mast
|
Lifting Height |
Loading Capacity |
Mast Lowered Height |
Free Lifting Height |
Mast Tilt Angle |
|
|
|
|
Fork Landing |
Height with Backrest |
|
F/R |
|
3600mm |
3000kg |
1830mm |
4865mm |
602mm |
6/6° |
|
4000mm |
3000kg |
1965mm |
5270mm |
737mm |
6/6° |
|
4350mm |
2870/*3000kg |
2080mm |
5615mm |
852mm |
6/6° |
|
4500mm |
2570/*3000kg |
2130mm |
5765mm |
902mm |
6/6° |
|
4800mm |
2250/*2800kg |
2230mm |
6065mm |
1002mm |
6/6° |
|
5000mm |
2000/*2650kg |
2295mm |
6260mm |
1067mm |
6/6° |
|
5500mm |
*2300kg |
2460mm |
6755mm |
1232mm |
*3/6° |
|
6000mm |
*2100kg |
2680mm |
7265mm |
1452mm |
*3/6° |
Remark: * means double tires;
The max. lifting height without backrest -570mm;
The max. free lifting height without backrest +430mm.
