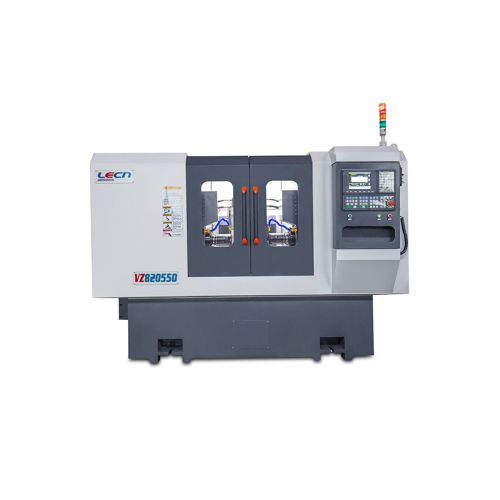

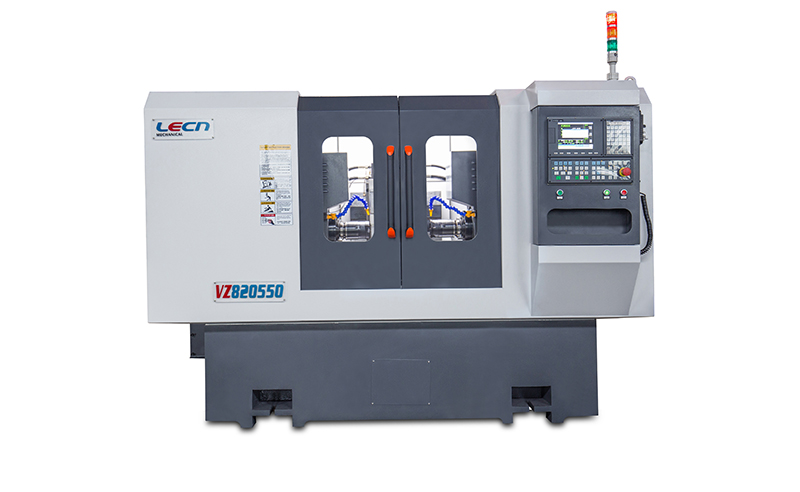

Vertical Facing And Centering Machine VZ820550

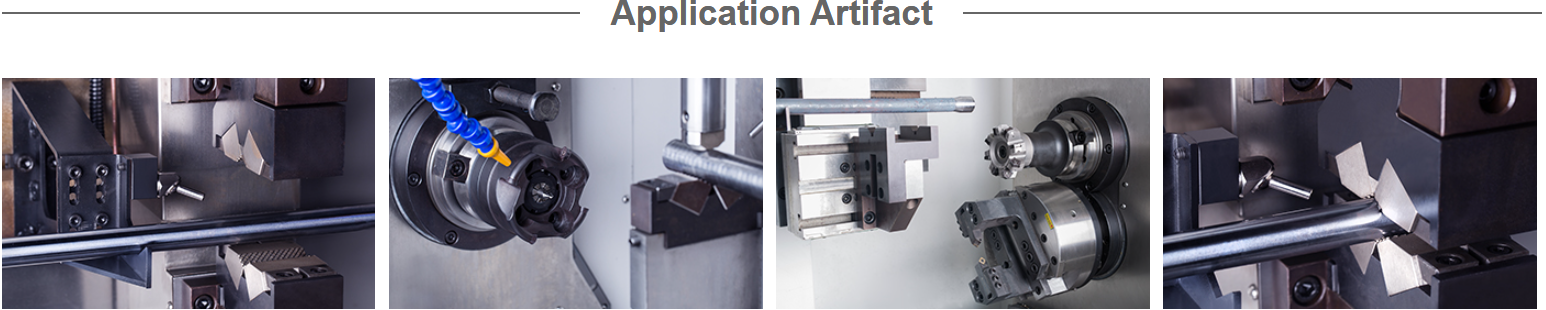

Both ends of the one clamping are processed at the same time, the vertical facing and centering machine with 100-500 mm workpiece length is suitable for milling, chariot, drilling center hole, drilling, tapping, boring, reaming, grooving package of all kinds of slender, irregular and stepped parts. High coaxiality, high efficiency, it can carry with truss or joint robot and automatical line.

Vertical Facing And Centering Machine VZ820550 is a specialized piece of equipment used in machining and manufacturing processes. It is designed for the precise shaping, facing, and centering of workpieces, typically made of metal or other materials. Here's a brief explanation of its key functions and components:

1. Vertical Orientation: Unlike horizontal machines, which have a horizontal work spindle, vertical facing and centering machines have a vertical spindle arrangement. This means that the cutting tool moves vertically, either upward or downward, to perform various machining operations.

2. Facing: Facing is a machining operation where the machine removes material from the end face of a workpiece to make it flat and perpendicular to its axis. Vertical facing and centering machines excel at this task by using cutting tools such as milling cutters or single-point tools.

3. Centering: Centering involves aligning the workpiece's axis with the machine's spindle axis. This ensures that the workpiece is precisely positioned for subsequent machining operations, like drilling or turning. Centering can be performed using a centering tool or a center drill.

4. Rotation: These machines often have the capability to rotate the workpiece, allowing for machining on multiple sides without the need for repositioning or manual handling. This is especially useful for achieving symmetry in parts.

5. Control System: Modern vertical facing and centering machines are typically equipped with computer numerical control (CNC) systems. These systems allow for precise control over the machining process, including tool movement, feed rates, and depth of cut.

6. Workholding: Workpieces are securely clamped or held in place using various types of chucks, fixtures, or collets. Proper workholding is crucial to ensure the accuracy of the machining process.

7. Safety Features: Safety is a paramount concern in machining operations. These machines are equipped with safety features such as interlocks, emergency stops, and protective shields to prevent accidents and protect operators.

Vertical facing and centering machines are commonly used in industries like aerospace, automotive, and general manufacturing, where precision machining is essential for producing high-quality components. They are capable of efficiently machining a wide range of workpiece sizes and shapes, making them a versatile tool in the manufacturing process.

Technical Parameters
