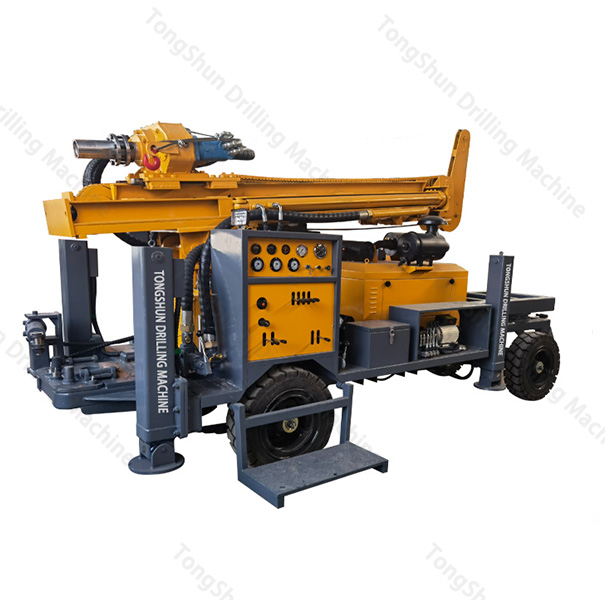

Trailer Mounted Water Well Drilling Rig
Trailer Mounted Water Well Drilling Rig
Product Description
Our TSHT-300 Trailer Mounted Water Well Drilling Rig stands out for its portability and cost-effectiveness
Product Features
-
Versatile Drilling Capability: Drilling diameter range 140-305mm.
-
Enhanced Efficiency: Drilling depth 300m; Penetration efficiency 10-35m/h.
-
Adaptive Specifications: Drill pipe diameter 76mm, 89mm; Length 1.5m, 2.0m, 3.0m
-
Portability Advantage: Suitable for various types of water well drilling tasks, from small domestic wells to agricultural and general engineering projects. Its lightweight and flexibility make transportation between different job sites effortless.
-
Cost-effectiveness: Our trailer-mounted drilling rig offers cost-effective solutions not only in its initial purchase but also in its operational costs, making it an economical choice.
-
Easy Maintenance: Apart from its high-performance capabilities, its simplified structural design also makes maintenance straightforward, thereby reducing maintenance costs.
Main specifications
|
Equipped capacitor |
70kW |
|
Using air pressure |
1.7-3.0MPa |
| Dimension |
5500*1000*2200mm |
| Climbing angles |
30Max. |
|
Swing torque |
4000-5300N.m |
|
Rig lifting force |
15T |
|
Air consumption |
17-31m³/min |
|
Fast feeding spee |
28m/min |
|
The engine bran |
Xichai engine |
