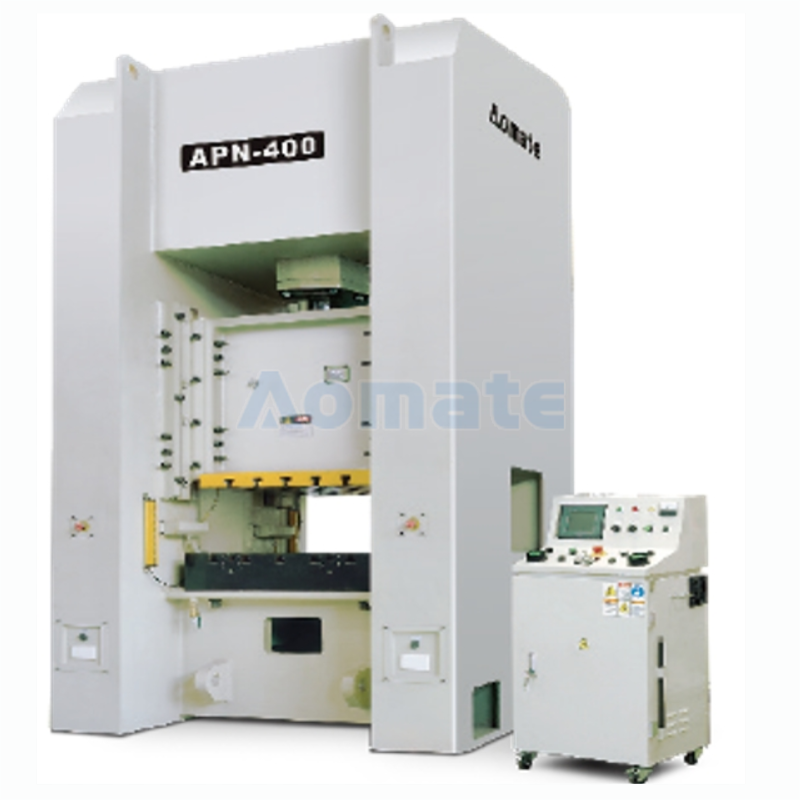

Sheet Metal Stamping Machine

What is a Sheet Metal Stamping Machine?

A sheet metal stamping machine is a type of mechanical press designed to transform flat metal sheets into specific shapes through the process of stamping. This machine uses a combination of dies and pressure to cut, shape, and form metal into desired configurations, which are used in various industries such as automotive, aerospace, electronics, and appliances.

What are the benefits of sheet metal stamping?

The advantage of this cold forming process is that there is little need for secondary operations or waiting for the workpiece to cool.

By reshaping the metal instead of cutting pieces of it, it also reduces production waste - especially when using a piercing operation. Typically, to punch holes in sheet metal, you would have to cut away a piece of metal, but perforating with a metal stamping press simply moves the metal out of the way to form the holes without creating excess metal scrap.

Key Components of a Sheet Metal Stamping Machine

Frame: The main structure that supports all other components. It can be C-frame (open front) or H-frame (closed front) depending on the design and application.

Ram (Plunger/Slide): The moving part that holds the upper die and applies force to the workpiece.

Bed: The stationary part where the workpiece is placed, typically fitted with the lower die.

Drive Mechanism: Includes the flywheel, crankshaft, and other components that power the ram's movement.

Clutch and Brake: Systems that control the engagement and stopping of the press.

Flywheel: Stores and releases energy to drive the ram.

Die Set: The combination of the upper and lower dies that shape the metal.
