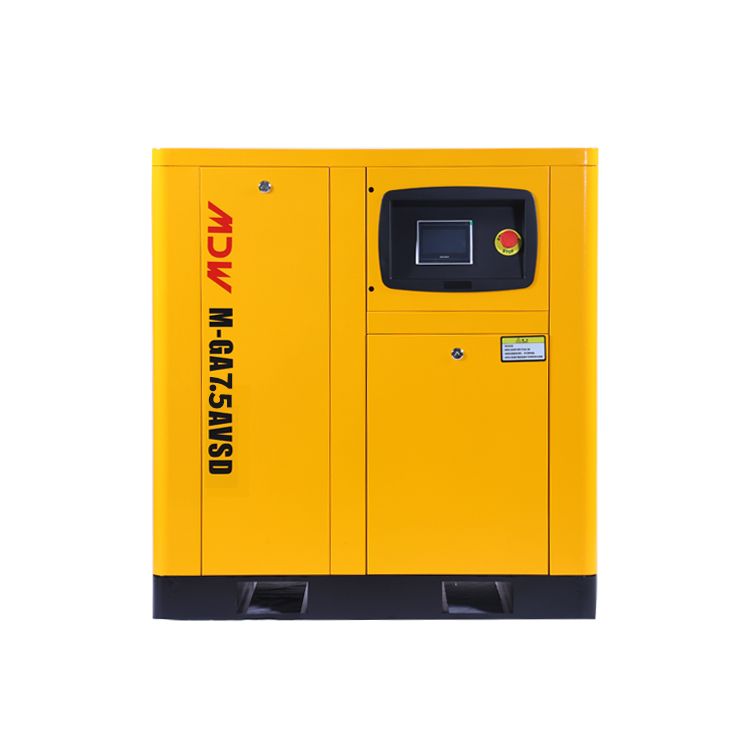

MDW-7.5KW/11KW Permanent Magnetic VSD Air Compressor used Printing and mold industry

MDW-7.5KW/11KW Permanent Magnetic VSD Air Compressor used Printing and mold industry

Product Description

The permanent magnet frequency conversion air compressor adopts high efficiency VSD compressor, the average energy saving is up to 35%.

The body of the compressor is waterproof, dustproof and soundproof, with protection class up to IP55.

The excellent performance and reliability of permanent magnet variable speed air compressors are ideal for ensuring energy saving and sustainable production.

Product Parameters

Power
KW

Power
HP

Pressure
MPa

Volume flow
m³/min

Start Mode

Drive Mode

Cooling

Compression Level

Noise
db(A)

Voltage
V/PH/HZ

Weight
KG

Dimensions
(L*W*H)
mm

Outlet Diameter
imch/mm

7.5KW

10HP

0.7

0.36-1.3

VSD Soft Start

Integrated Direct Drive

Air Cooling

Single stage

62±2

380V/50HZ

190

890*650*830

G3/4"

0.8

0.33-1.1

1

0.28-0.95

11KW

15HP

0.7

0.51-1.7

VSD Soft Start

Integrated Direct Drive

Air Cooling

Single stage

62±2

380V/50HZ

280

1000*700*1000

G3/4"

0.8

0.48-1.6

1

0.42-1.4

In the pursuit of superior operational efficiency and sustainable development, excellent enterprises always take energy consumption control as one of their core strategies. Reducing energy consumption not only reduces operating costs, but also enhances the competitiveness of the company, while responding to the call for environmental protection and sustainable development.

1. The energy-saving effect is especially remarkable:

PM VSD Screw Air Compressor adopts advanced VSD (Variable Speed Drive) technology, through real-time adjustment of compressor speed, compared with the traditional fixed-speed drive compressor, the average energy saving is up to 35%.

2. Unique frequency conversion system:

The unique frequency conversion system of the air compressor is an efficient and energy-saving control technology, which can automatically adjust the speed and output power of the air compressor according to the actual demand to achieve the best energy efficiency ratio.

3. Reliable performance:

Advanced permanent magnet motor technology provides higher operating efficiency and longer service life.

For more details please contact Mandiwi
