Flying Shear Quick Straightening And Cutter

The Flying Shear Quick Straightening And Cutter can be suitable for all kinds of metal wire straightening cutting, surface, no scratches, cutting length error of 0.2-0.5 mm, and the cutting length range are 80mm to 6000mm. If you want faster speed, please contact customer service.

Product Description

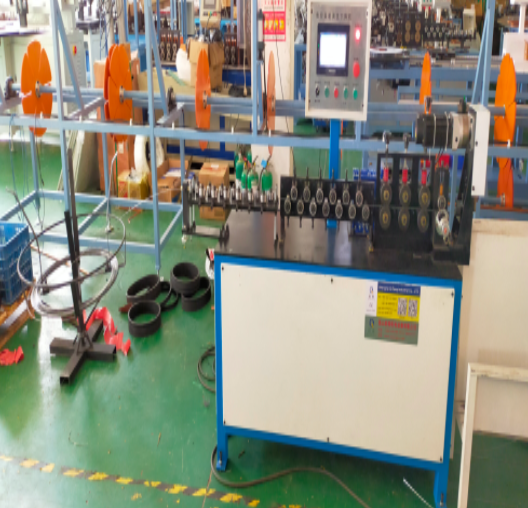

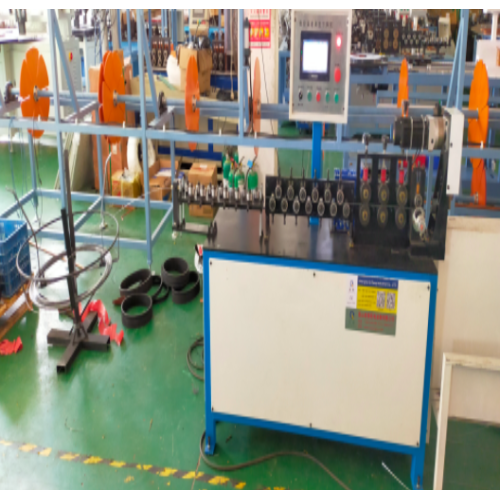

Flying Shear Quick Straightening And Cutter

1. We have CE&SGS certification ,ISO1990 Quality system certification ,so on...
2. Good quality and professional pre - sales, after - sales service.
3.13 years of development, manufacturing and marketing experience, the main customers are: North America (United States, Canada, Mexico), Europe (Italy, Britain, France, Poland, Netherlands), Southeast Asia, etc.
4. Flexible development and customization CEM COM.
5. Excellent consulting team covering the world.

6. Fast spare parts distribution and sufficient inventory.

  • Description





Mental filament straightening and cutting machine flying shear 1-6mm steel  wire straightening and cutting machine

This device can be suitable for all kinds of metal wire straightening cutting, surface, no scratches, cutting length error of 0.2-0.5 mm, the cutting length range is 80mm to 6000mm. Human-machine incorporate touch screen control system, can save manpower for the customer. Company's main range of wire 1 mm to 5 mm can be customized, fastest of up to 150 meters per minute,available for copper, iron, aluminum, gold, silver, stainless steel, high carbon steel and plastic coated wire, metal wire.If you want faster speed, please contact customer service.If you are concerned about the straightening effect, we can provide free proofing.

Configuration parameters of high speed straightener,

1 two servo motors, 1.5 kw traction and 1:10 planetary reducer, cut off 1.5 kw,

2 cut off the PLC touch screen electronic CAM system,

3 servo motor brand, servo motor

4 fuselage length 1850mm wide 780mm total height 1300mm.It weighs about 498 kilograms.

5 the total weight of the automatic spreader is 90kg.

6. The control mode includes inverter analog control system,

7. Minimum diameter: 250mm; maximum diameter: 500mm;

8 the weight of the spreader is about 90kg"




Type and wire diameter:

QP-φ0.2-1mm

QP-φ1-6mm

QP-φ7-12mm


Cutting range:

10mm – 99999mm


Max cutting speed:

200pcs/min
400 pcs/min


Wire feeding speed:

20-60m/min

20-80m/min

20-60m/min


Length error:

±0.2mm
±0.2mm for uniform speed


Wire material:


Common carbon steel wire and stainless steel wire


Accessories:


Withdrawable wire rack, Movable receiving pocket, Recommended automatic wire rack for lines above 3.0


Feeding stand:

1000*300*150


Feeding motor:


2.0kw servo motor


Straightening motor


Custom adjustable speed motor 3KW/2880r


Cutting shear motor:


2.8KW Cut off servo motor


Rail module:


Nextron


Number of feeding rollers:


2 group (4 pairs rollers)


HMI:


7 inch touch screen


Number of straightening rollers:


8 pcs


Material of shear:


Cr12 Steel, partly made by Nextron

Electric box brand:

Relay—IDEC,
contactor--CHINT
switching power supply—DELTA,
 Motion Controller—Guangzhou shifu

Measurement(length*width*height)

1700*700*1350(mm)



automatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machine

Packing:

automatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machineautomatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machine

automatic copper pipes tube pipe straightening and cutting machine copper tube straighter  coil steelaluminum copper tube straightener and cutter machine



Mental filament straightening and cutting machine flying shear 1-6mm steel  wire straightening and cutting machine
