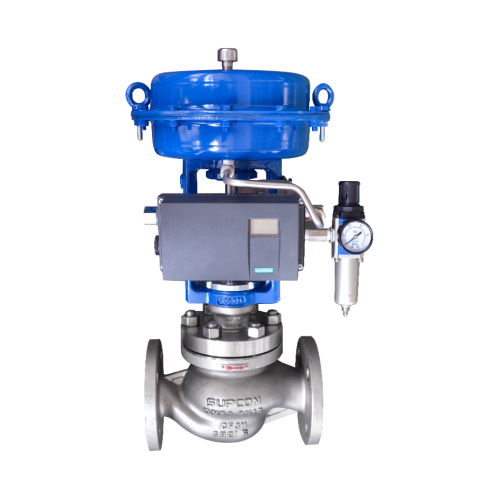

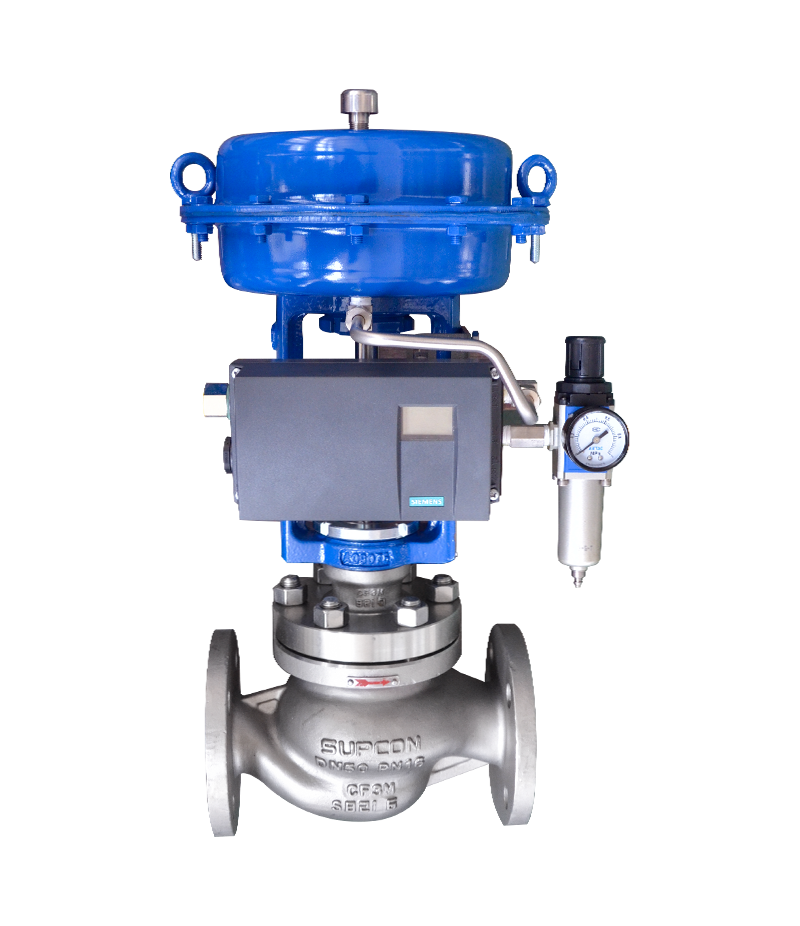

SUPCON LN81 Series Single Seat Globe Pneumatic Control Valve

Pneumatic Pressure Control Valve, one of two basic guide plunger valve core, the floating sleeve compression type, from the seat structure, modular design, the flow capacity is big, high controlling precision, adjustable range, can achieve minimal flow control, structure is simple, reliable, good seal performance, the scene is easy to maintain. Is suitable for the pressure difference is not big, the seat leakage and high control precision.

More hydraulic control valve knowledge can be downloaded in PDF.

Pneumatic Pressure Control Valve

Pneumatic pressure control valve is capable of regulating the system pressure to adjust the force on the hydraulic piston rod or the torque on the hydraulic motor shaft. Pressure relief valves are used to set the maximum pressure in the circuit and prevent it from being overloaded. Pneumatic pressure control valve permanently maintain the output pressure at the set value while preventing overloading of the equipment. Unloading valves are designed for economic pressure control in accumulator operating circuits and are used as a power source for emergency control.

Classification of pneumatic pressure control valve

In the pneumatic transmission system, all pressure control valves work on the principle of balance between air pressure and spring force, which can be divided into the following three categories:

1. Pressure reducing valve. Also known as pressure regulating valve, setting device (precision pressure reducing valve), etc., it plays the role of pressure reducing and stabilizing;

2. Overflow valve. Also known as safety valve, pressure-limiting shut-off valve, etc., it plays the role of pressure-limiting safety protection;

3. Sequence valve and balance valve. Depending on the pressure of the gas circuit, some control is performed.

Next, we mainly introduce you this single-seat cut-off pressure control valve.
