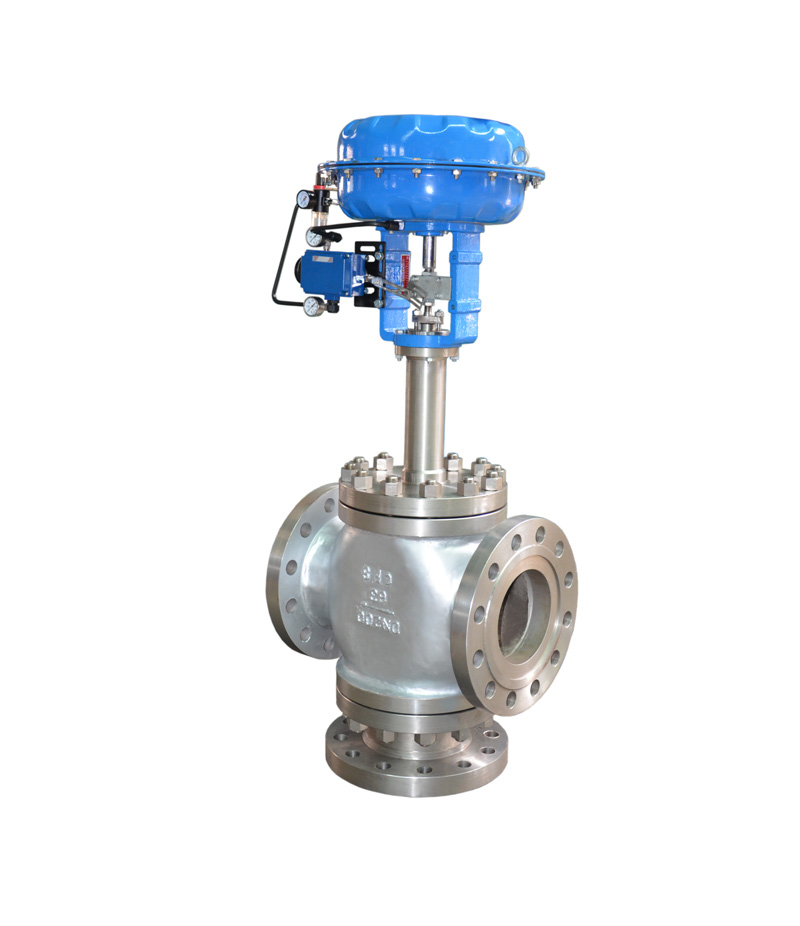

3 Way Globe Valve

A 3-Way Globe Valve is a type of industrial valve that has three openings or ports, allowing it to control the flow of fluid or gas among three different directions. It is commonly used in various applications where diversion or mixing of flow is required. The design of the valve includes a globe-like body with an internal baffle or plug that directs the flow according to the valve's configuration.

The three primary configurations of a 3-Way Globe Valve are:

Mixing Valve: In this configuration, the valve allows the flow from two inlet ports to combine and exit through a single outlet port. It is used when two streams of fluid need to be mixed in a controlled manner.

Diverting Valve: In a diverting configuration, the valve allows the flow from a single inlet port to be directed to one of two outlet ports. It is used to divert the flow between two different destinations.

Universal Valve: The universal configuration is a combination of the mixing and diverting valves. It allows the flow from two inlet ports to be directed to one of two outlet ports, or it can mix the flow from both inlets and discharge it through the third port. This provides a versatile solution for various flow control scenarios.

Benefits

Available in a variety of structural designs with a range of different end styles and configurations

Equal percentage and linear feature trims available

All trim components are removable for easy maintenance

High integrity guidance system

Low emission packings available

Stable flow control with a wide range of adjustments

Top-guide control and corrosion-resistant trim

Rugged top guide and seat ring guide
