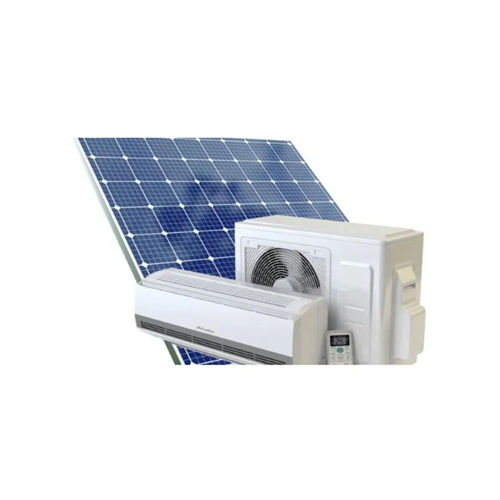

Solar Aircondictioner
Product Description
Depends on different working conditions,4~6 pcs 300w solar panels can operate the system to work up to 10 hours per day.6~8 pcs 300w panels up to 16 hours.8~12 pcs 300w panels up tó 20~24 hours. The battery and charge controller must be sized appropriately.
Solar Aircondictioner Specifications
Model |
AC Power |
DC Power |
Cooling Capacity |
Heating Capacity |
Cooling Power Input |
Heating Power Input |
Indoor/ outdoor Net Weight |
Indoor Net Size |
Outdoor Net Size |
KFR-26GW/BPQA |
220V 50/60Hz |
42-60V |
9000BTU |
9500BTU |
100-850W |
120-880W |
9.6/39 |
870x270x360 |
900x400x600 |
KFR-35GW/BPQA |
12000BTU |
13000BTU |
110-1300W |
130-1350W |
9.6/42 |
870x270x360 |
900x400x600 |
||
KFR-50GW/BPQA |
18000BTU |
19000BTU |
140-1650W |
200-1710W |
12.5/44 |
1035x305x380 |
900x400x600 |
||
KFR-70GW/BPQA |
24000BTU |
25000BTU |
240-1980W |
260-2039W |
15.2/59 |
1120x310x405 |
1063x457x780 |
||
KFR-90GW/BPQA |
30000BTU |
31000BTU |
320-2300W |
350-2410W |
15.2/69 |
1120x310x405 |
1090x500x860 |
||
KFR-100GW/BPQA |
36000BTU |
37500BTU |
350-2600W |
390-2700W |
15.2/73 |
1120x310x405 |
1090x500x860 |
Four Smart Workingmodes
1.When the power generated by solar panels ≥the power consumption of the air conditioner,the air conditioner runs by solar PV only,energy saving 100%
2.When the solar panel power is insufficient,the battery is supplemented to supply power to the air conditioner, energy saving 100%
3.When the solar panel and battery power are both insufficient,the 220v 50hz/60hz city power provides the supplement power to keep the air conditioner running for 24 hours.still enjoy high efficiency>SEER 21.
4.When continuous rainy days,the solarpower system may not work,at this time,the air conditioner can also run only by 220v 50/60hz city power with high efficiency ≥SEER 21.
We are the solar air conditioner solution provider,we not only sell the solar air conditioner but also provide professional solar solutions to our clients. Our target is to let the people all around the world enjoy the environment protection energy saving solar air conditioner.
